Installing optional accessories
CAUTION - Disconnect or stabilize all accessories during transportation.
A variety of optional viewing accessories is available for the Selecta, such as
camera and video adaptors, and a co-observation tube. Compatible Selecta
accessories are listed in the “Specifications” section of this manual. You may
also contact your local Lumenis representative for additional product
information.
CAUTION - Ensure all attachments are attached and fastened securely.
WARNING - Ensure all eye safety filters for attachments are properly placed.
Ensure the correct optical density for the desired wavelengths is clearly
marked. Refer to Laser Safety Eyewear in the Safety and Regulatory section of
this manual for more information.
The installation instructions provided here show the installation of a co-
observation tube; however, installation is essentially the same for all
accessories. When using observation equipment, you must first install a beam
splitter onto the slit lamp. To ensure that the observer is protected by the eye
safety filter, you will mount optional viewing accessories between the
binoculars and the magnification changer.
Remove the slit lamp binocular assembly
1 Grasp the slit lamp binocular assembly with one hand; with the other hand,
loosen the slit lamp binocular screw.
2 Slightly tilt and lift the binocular assembly to remove it from the
magnification changer.

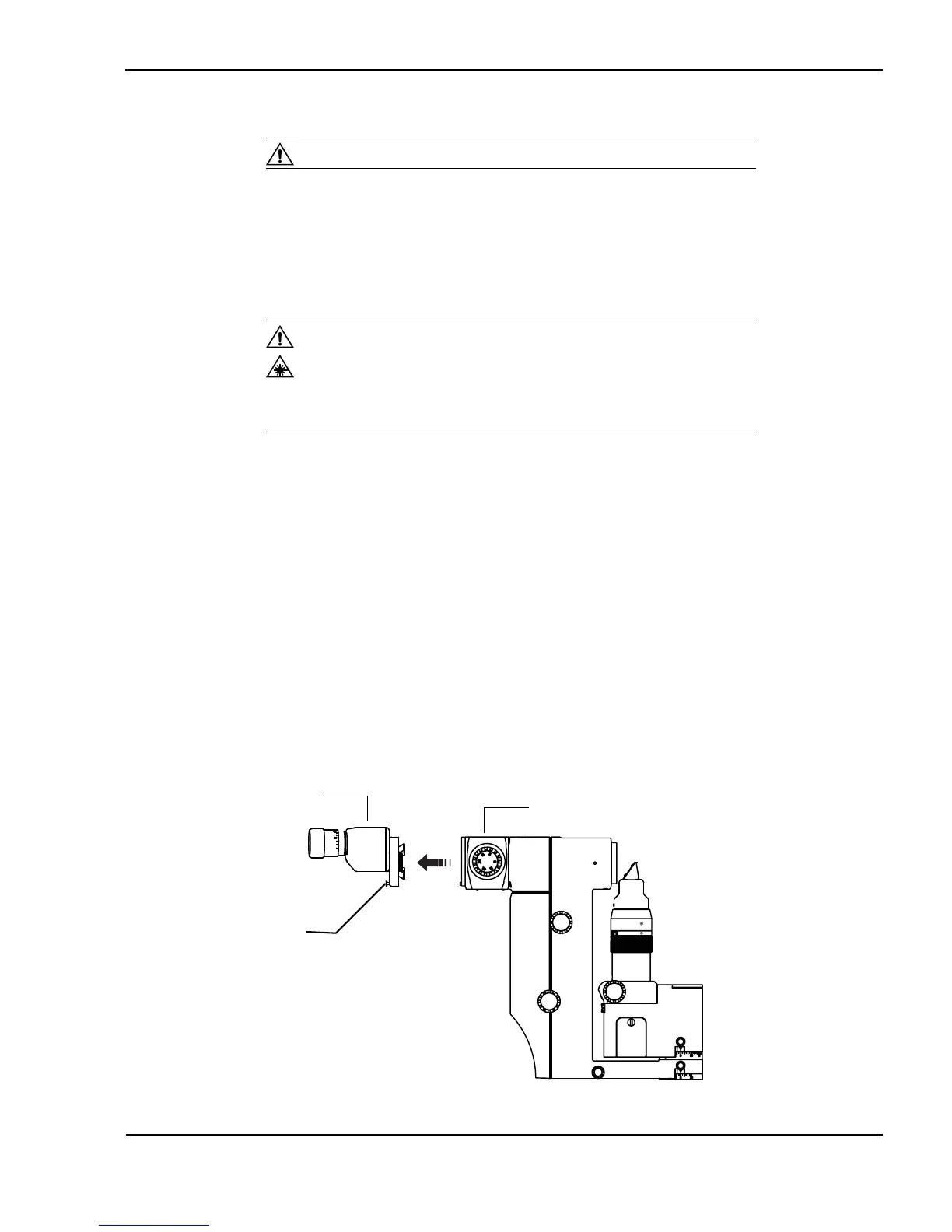

Remove the slit lamp binocular assembly from the magnification changer
Binocular screw
Magnification changer
Binocular assembly
