Install the beam splitter
3 Install the beam splitter by inserting the beam splitter dovetail mount into the
magnification changer dovetail receptacle and lining up the guide pin with the
guide pin slot. Tighten the magnification changer screw to secure the
connection.
Remount the binocular assembly onto the slit lamp
4 Insert the binocular assembly dovetail mount into the beam splitter dovetail
receptacle, lining up the guide pin with the guide pin slot.
5 Seat the guide pin into the guide pin slot, and tighten the binocular screw to
secure the connection.

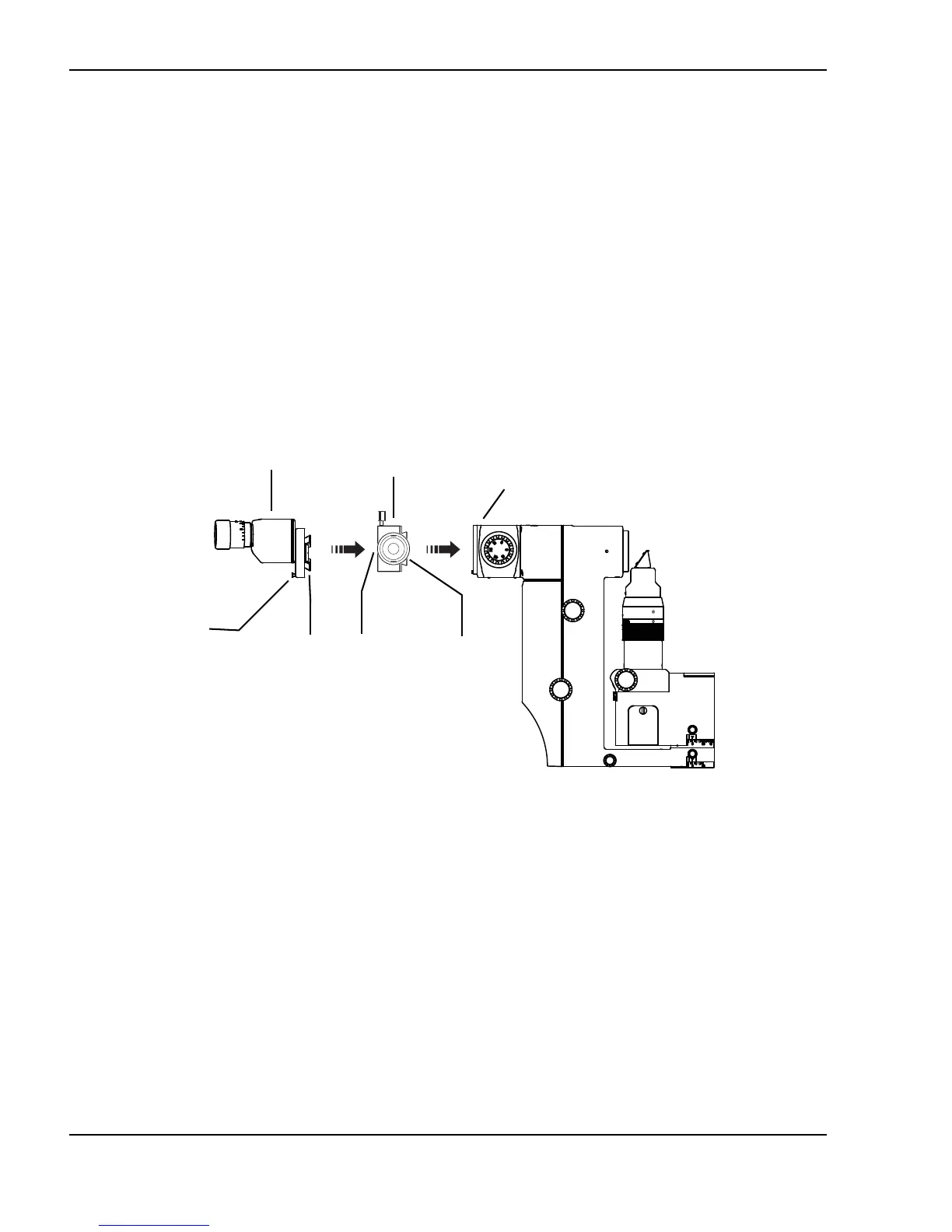

Secure the beam splitter between the binocular assembly and magnification changer
Binocular screw
Magnification changer
screw
Binocular
dovetail
mount
Beam
splitter
dovetail
mount
Binocular
assembly
Beam
splitter
Beam
splitter
dovetail
receptacle
