Slit Lamp Basics  49
Selecta
PBL200051, Rev J

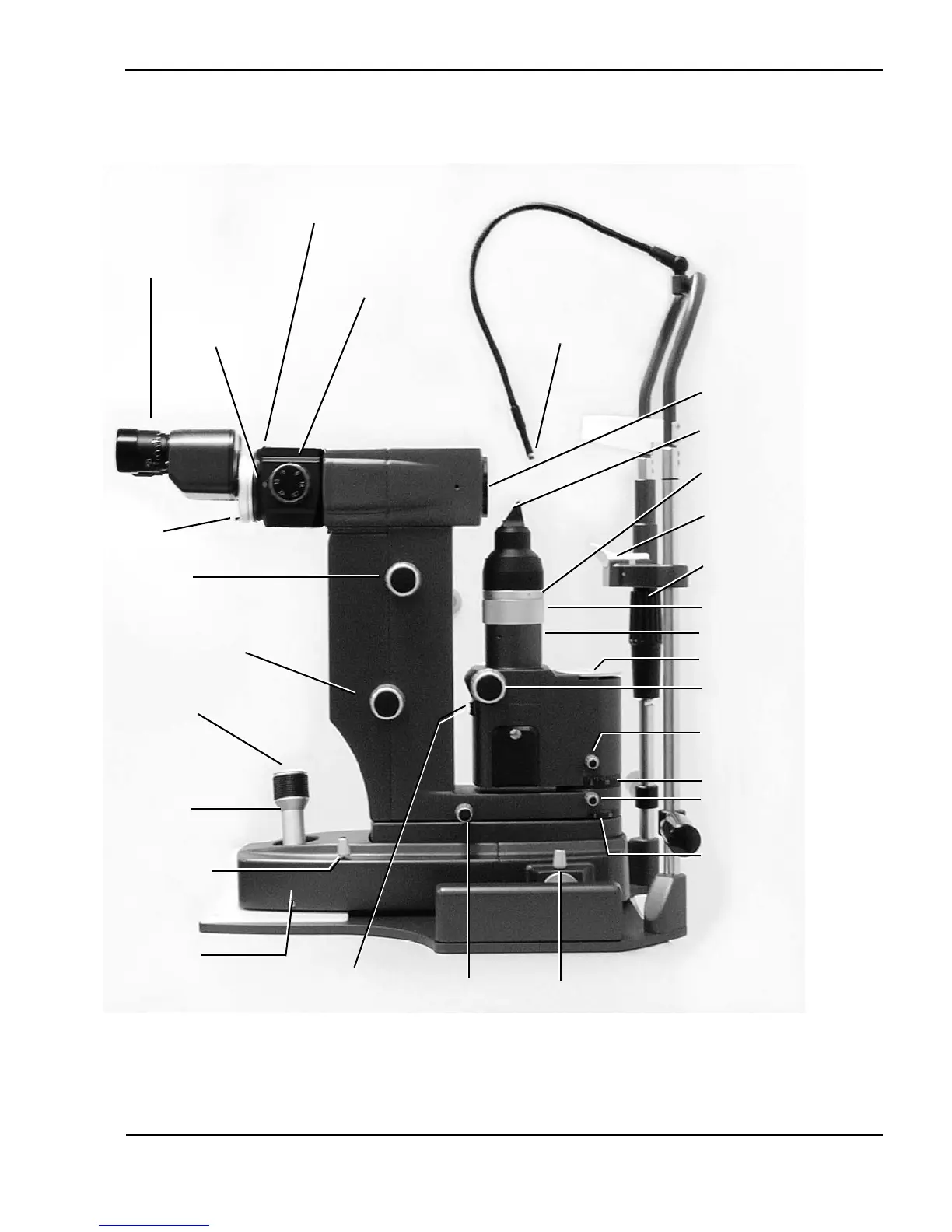

Slit lamp controls
Microscope arm
locking screw
Illumination tower
Instrument base
locking screw
Illumination tower
angle scale
Illumination tower
locking screw
Patient
fixation light
Energy adjustment
Joystick
Slit width control
Aiming beam
intensity
control
Microscope
magnification
changer
Microscope eyepieces,
with diopter adjustment
Posterior YAG
offset
Slit rotation
angle scale
Illumination
intensity
control
Laser aperture
Arm position
angle scale
Joystick laser
activation
pushbutton
Illumination aperture
and color filter
selector wheels
Instrument
base
Magnification
changer screw
Binocular
screw
Magnification
indicator
dot
Slit rotation control
Illumination mirror
Chin rest
Chin rest height
adjustment
Focus post mounting hole
