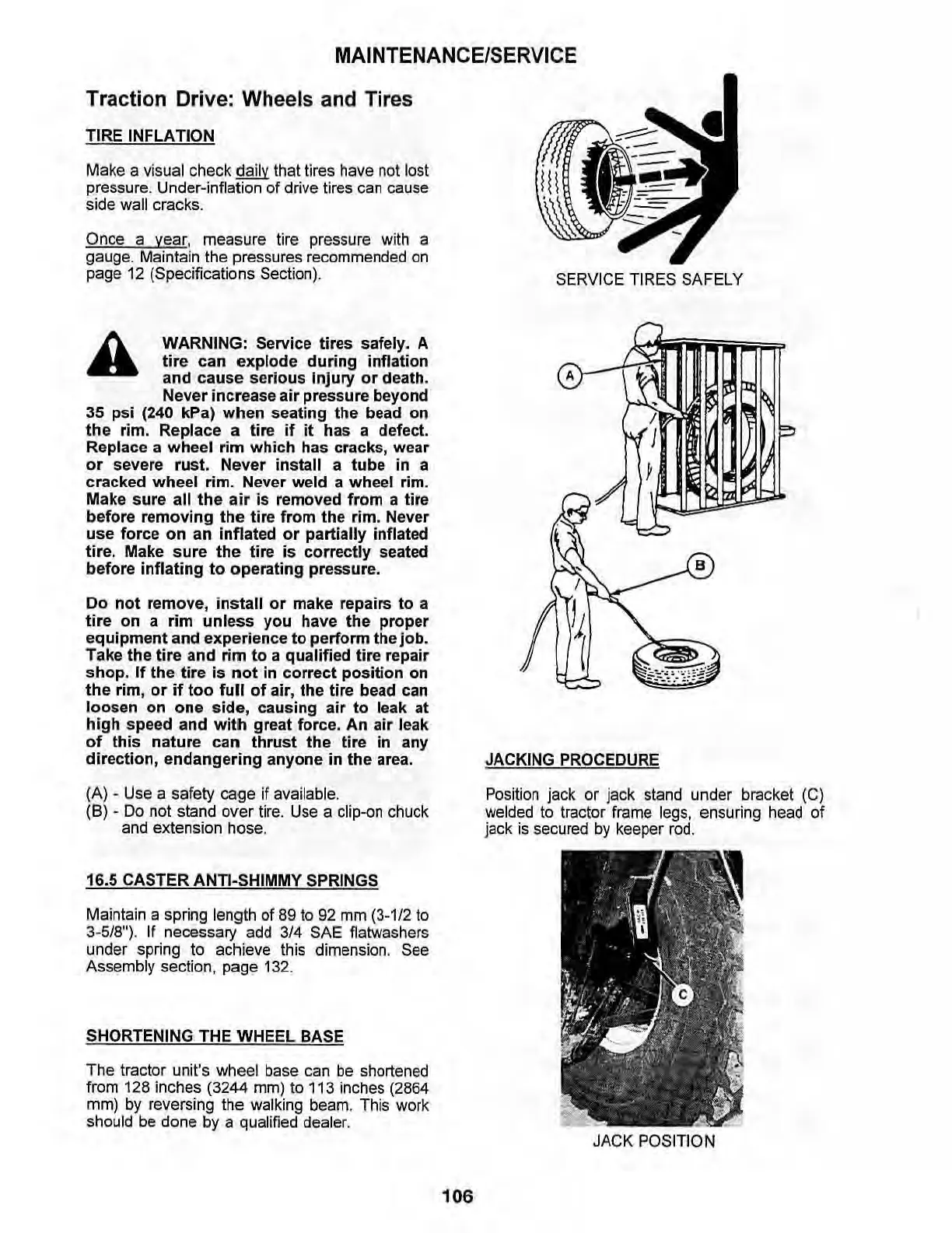

MAINTENANCE/SERVICE
Traction Drive: Wheels and Tires
TIRE
INFLATION
M
ake
a
visua
l ch
eck
da
il
y
tha
t ti
re
s h
ave
not
l
os
t
pressure. Under-inflation of
dr
ive tires c
an
cause
side wall cracks.
Once a year, measu
re
tire
pr
ess
ure wi
th
a
gauge. Maintain the
pr
essures recommended on
page
12 (Speci
fi
ca
ti
ons Section).
A
WARNING: Service tires safely. A
tire
can explode during inflation
and cause serious injury
or
death.
Never increase air pressure beyond
35
psi
(240 kPa) when seating the bead on
the rim. Replace a tire
if it
has a defect.
Replace a wheel rim which has cracks, wear
or
severe rust. Never install a tube in a
cracked
wheel
rim. Never
weld
a wheel rim.
Make sure all
the
air
is removed from a tire
before removing
the
tire from the rim. Never
use force on an inflated
or
partially inflated
tire. Make sure
the
tire
is
correctly seated
before inflating
to
operating pressure.
Do not remove,
install
or
make repairs to a
tire
on a rim unless you have the proper
equipment and experience
to
perform the
job
.
Take the tire and rim
to
a qualified tire repair
shop.
If
the tire is
not
in correct position on
the
rim,
or
if
too
full
of
air, the tire bead can
loosen on one side, causing air to leak at
high spe
ed
and
with
great force. An air leak
of
this nature can thrust the tire in any
direction, endangering anyone in the
area.
(A) - Use a s
af
ety cage if availa
bl
e.
(8) - Do not stand
ov
er tire. Use a clip-on chuck
a
nd
extension
ho
se.
16.5
CASTER
ANTI-SHIMMY
SPRINGS
Mainta
in
a spring len
gt
h of 89 to 92 mm (3-1/2 to
3-5/8").
If necessa
ry
add
3/
4 SAE
fl
atwashers
under spring to achieve this dimension.
See
Assem
bl
y section, page 132.
SHORTENING
THE
WHEEL
BASE
The tract
or
unit's wheel base can be sho
rt
en
ed
fr
om 128 inches (32
44
mm) to
11
3 inches (2864
mm
) by reversing the walking beam. This work
should be done by a qualified dealer.
106
SERVICE TIRES SAFELY
JACKING PROCEDURE
Position jack or jack stand under bracket (C)
welded to tractor frame leg
s,
ensuring head of
jack is sec
ur
ed by keeper rod.
JACK
POSITION
