OPERATOR'S STATION
Symbol
Definitions

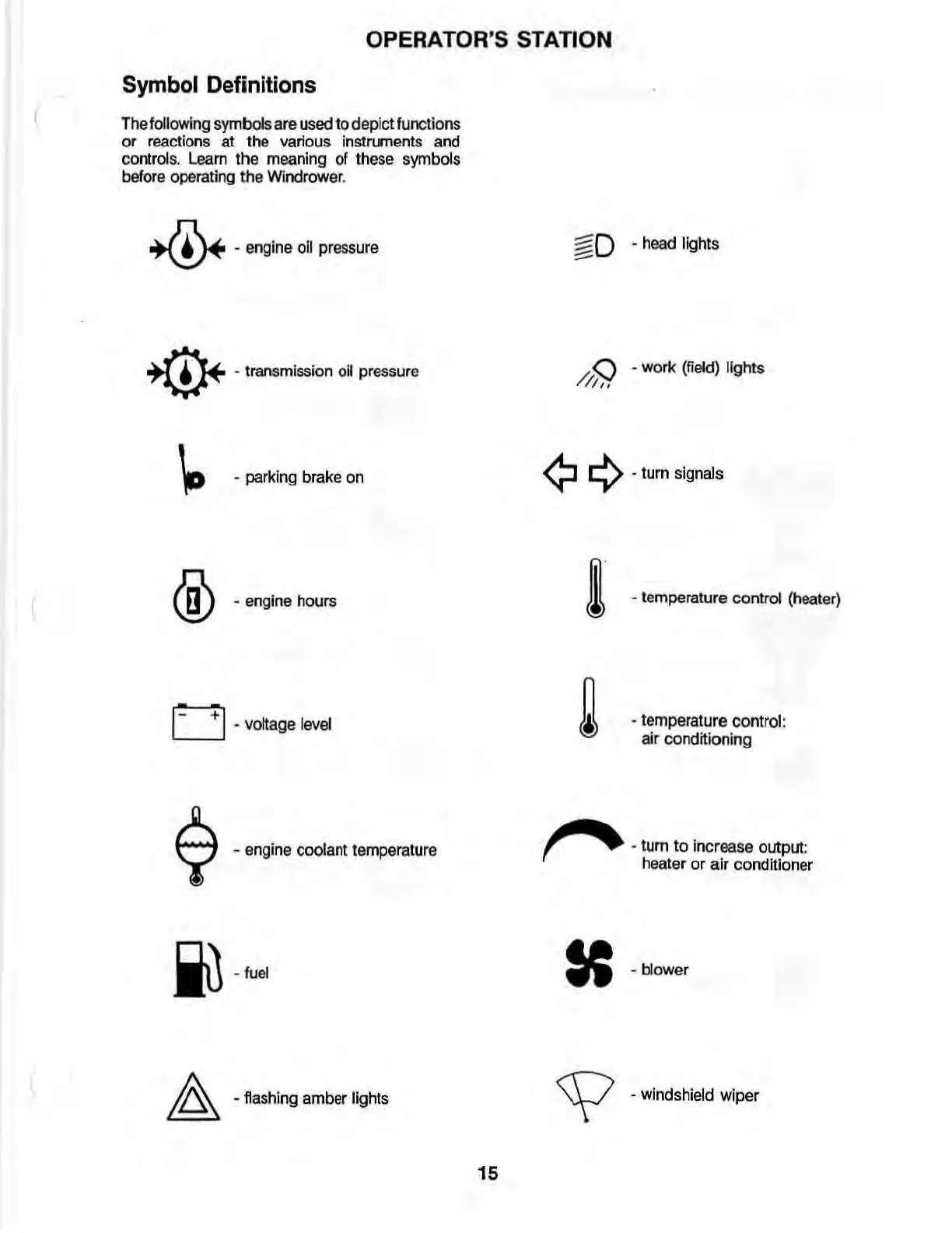

The following symbols are used to depict functions
or reactions at the various instru ment s and
controls . leam the meaning of these symbols
before operati ng the Windrower .
~ - engine all pressure
~ - transmission 011 pressure
- parking brake on
@ - engine hou rs
0
+
- voltage level
$ - engine coolant temperature
.iU -fuel
A - flashing amber light s
15
""' 0 - head lights
'"
/,Q -work (field) lights
'/; t ,
¢ ¢ . turn signals
- temperature co ntrol (heater)
- t emperatu re control :
air conditioning
~ - tum to increase output :
heater or air conditioner
Ie -blower
v - windshield wiper
