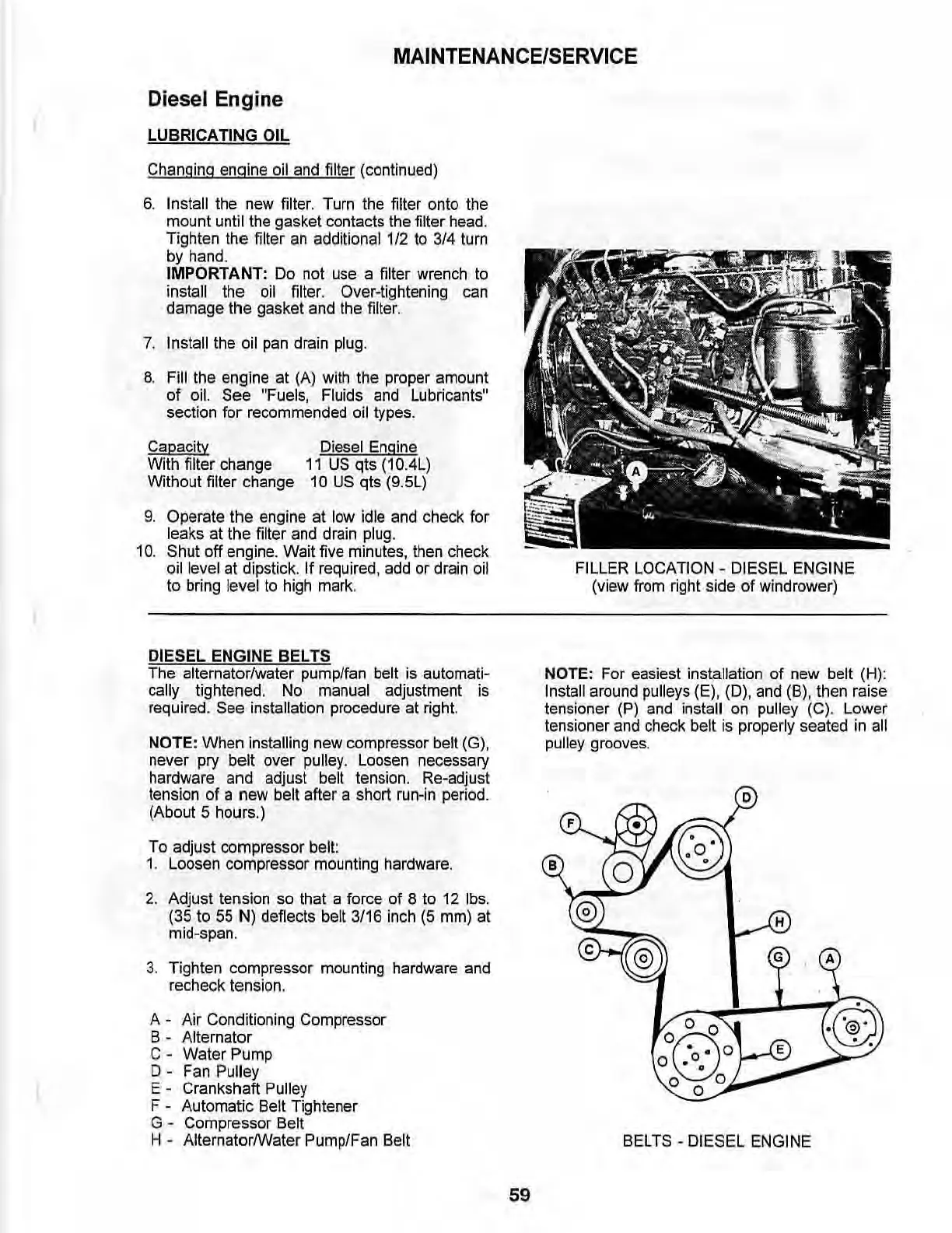

MAINTENANCE/SERVICE
Diesel Engine
LUBRICATING OIL
Changing engine
oil
and
filter (continued)
6.
Install the new filter. Turn the filter onto the
mount until
the
gasket contacts the filter
head
.
Tighten the filter
an
additional1/2 to 3/4 turn
by
hand.
IMPORTANT:
Do
not
use
a filter
wrench
to
insta
ll
the
oil
filter. Over-tightening
can
damage the gasket
and
the filter.
7. Install the oil pan drain plug.
8. Fill the engine at (A) with the proper amount
of
oil. See "Fuels, Fluids
and
Lubricants"
section
for
recommended oil types.
Capaci
ty
With filter change
Without filter change
Di
esel
Engine
11
US
qts (10.4L)
10
US
qts (9.5L)
9.
Operate the engine at low idle and check for
leaks at the filter and drain plug.
10. Shut off engine. Wait five minutes, then che
ck
oil level at dipstick. If required, add or drain
oil
to bring level to high mark.
DIESEL ENGINE BELTS
The alternator/water pump/fan belt
is
automati-
cally tightened.
No
manual adjustment
is
required. See
in
stallation procedure at right.
NOTE: When
in
stalling new compressor belt (G),
never pry belt over pulley.
Lo
osen necessary
hardware and adjust
be
lt
tension. Re-adjust
tension of a new belt after a short run-in per
io
d.
(About 5 hours.)
To adjust
co
mpressor belt:
1. Loosen compressor mounting hardware.
2. Adjust tension so that a force of 8 to 12
Ib
s.
(35 to
55
N) deflects belt 3/16 inch
(5
mm) at
mid-sp
an
.
3. Tight
en
compressor mounting hardware and
recheck tension.
A - Air
Con
ditioning Compressor
B - Alternator
C - Water Pump
o - Fan
Pu
ll
ey
E - Crankshaft Pulley
F - Automatic
Be
lt Tightener
G - Compressor Belt
H - AlternatorlWater Pum
p/
Fan Belt
59
FILLER LOCATI
ON
- DIESEL ENGINE
(view from right side
of
w
in
d rower)
NOTE: For easiest installation
of
new belt (H
):
Insta
ll
around pulleys (
E)
, (0), and (B), then raise
ten
sioner (P) and install
on
pull
ey
(C). Lower
tens
io
ner and check belt is properly seated
in
all
pulley grooves.
o
H
G
A
00
.0
003
0
'
0
:c~E
~
o
••
o 0
o
BELTS - DIESEL
EN
GINE
