OPERATION

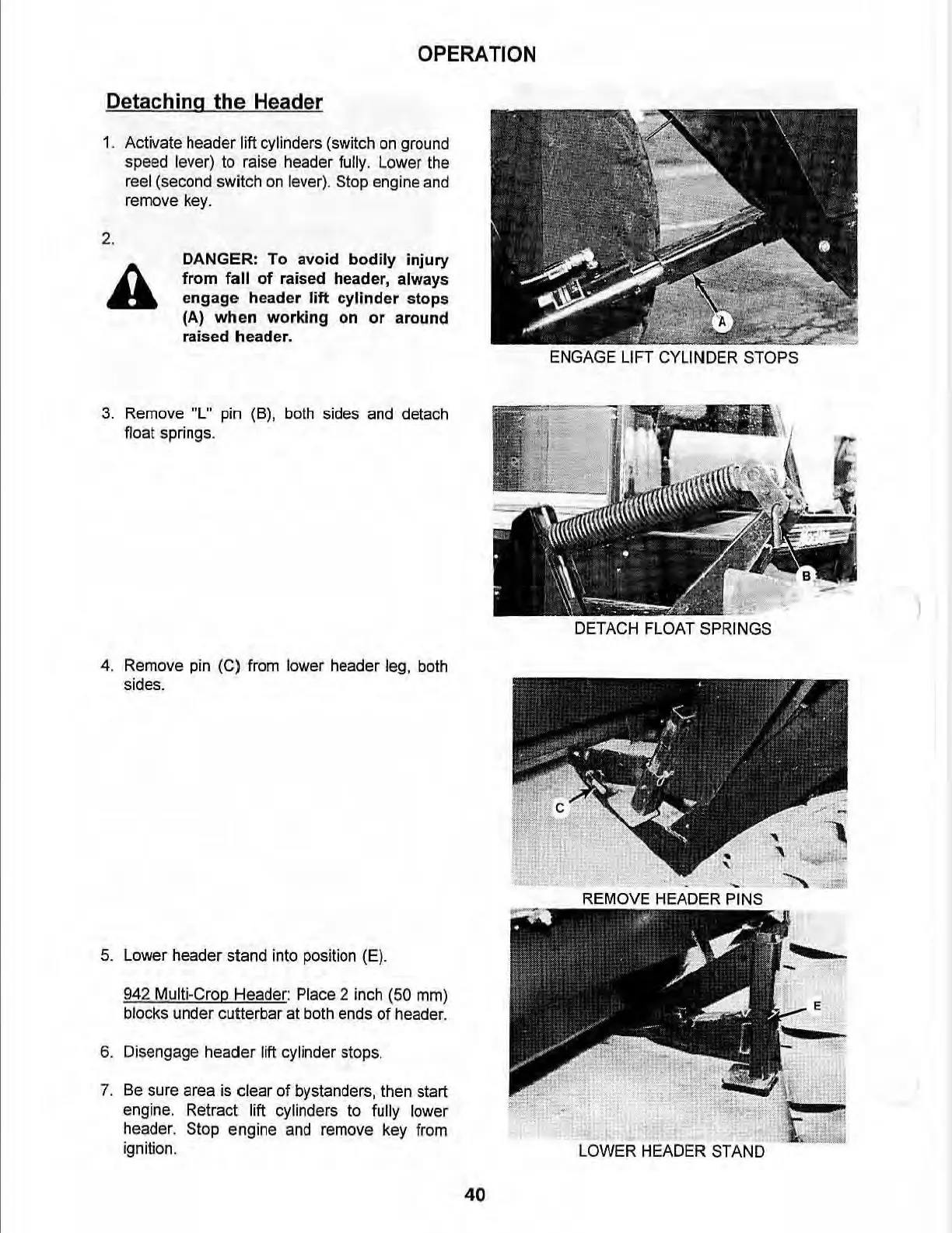

Detaching the Header
1. Activate header lift cylinders (switch on ground
speed lever) to raise header fully. Lower the
reel (second switch on l ever). Stop engine and
remove key.
2.
A
DANGER: To avoid bodily injury
from
fall of raised header, always
engage header
lift cylinder stops
(A)
when working on or around
raised header.
3. Remove "L" pin (B), both sides and detach
float springs.
4. Remove pin (C) from lower header leg, both
sides.
5. Lower header stand into position (E).
942 Multi-Crop Header: Place 2 inch
(50 mm)
blocks under cutterbar at both ends
of header.
6. Disengage header
Jift cylinder stops.
7. Be sure area is clear
of bystanders, then start
engine. Retract lift cylinders to fully lower
header . Stop engine and remove key from
ignition.
40
ENGAGE LIFT CYLINDER STOPS
DETACH FLOAT SPRINGS
REMOVE
HEADER PINS
,
LOWER HEADER STAND
'\
~ ~ ~
