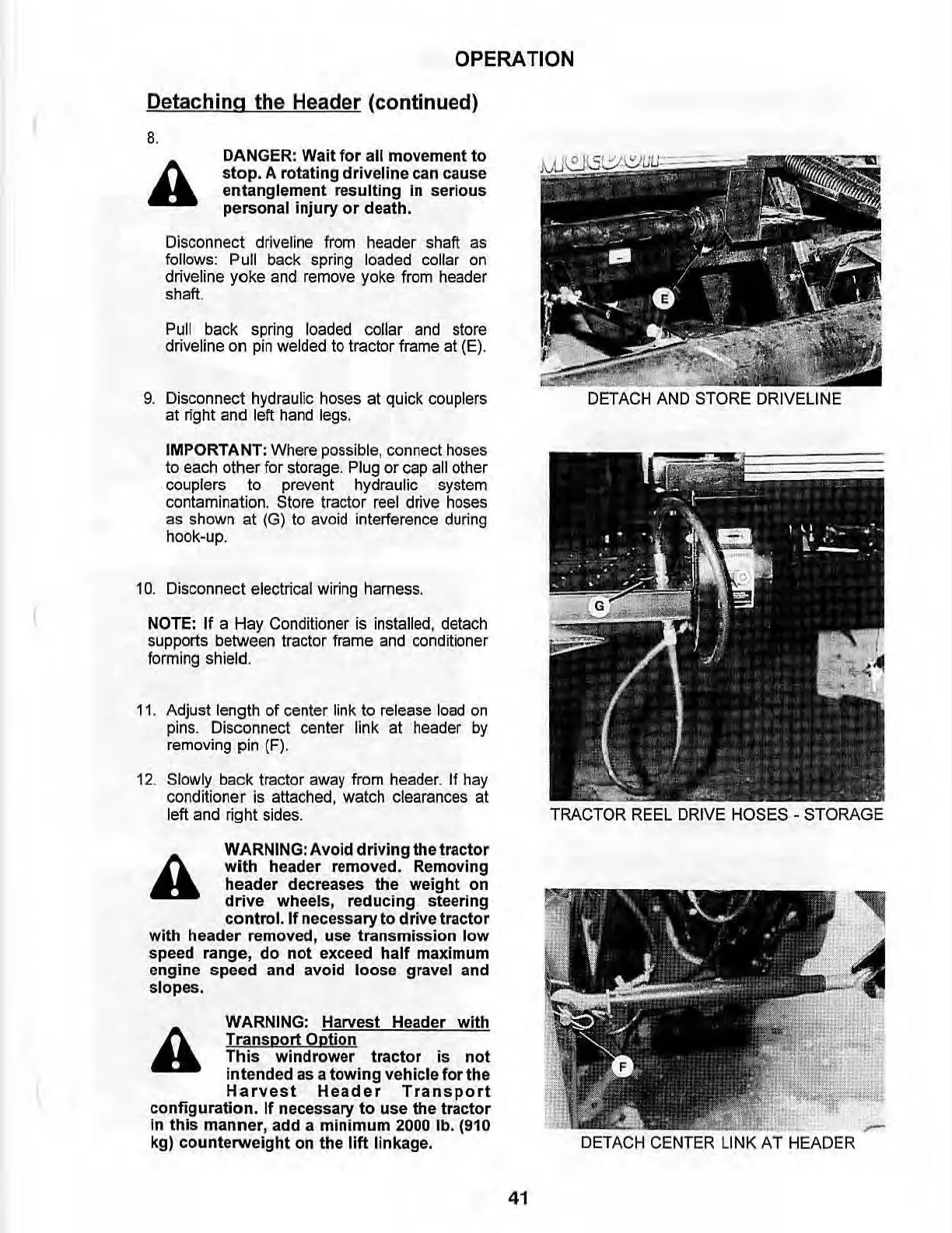

OPERATION
Detaching the Header (continued)
8.
DANGER: Wait
for
all movement
to
stop.
A rotating driveline can cause
entanglement resulting in serious
personal injury
or
death.
Disconnect
driveline
from
header shaft
as
follows: Pull
back
spring loaded collar
on
driveline
yoke
and remove yoke from header
shaft.
Pull
back spring
loaded
collar
and
store
driveline
on
pin welded to tractor frame at (E).
9.
Disconnect hydraulic hoses at quick couplers
at right and left hand legs.
IMPORTANT:
Where
possible,
connect
hoses
to each other for storage. Plug
or
cap all other
couplers
to
prevent hydraulic
system
contamination. Store tractor reel drive hoses
as shown
at
(G)
to
avoid
interference
during
hook-up.
10.
Disconnect electrical wiring harness.
NOTE:
If
a Hay Conditioner is installed, detach
supports between tractor frame and conditioner
forming
shield.
11
. Adjust length
of
center link to release load
on
pins. Disconnect center link at header
by
removing pin (F).
12
. Slowly back tractor away from header.
If
hay
conditioner is attached, watch
clearances at
left and right sides.
WARNING: Avoid
driving
the tractor
with
header removed. Removing
header decreases the weight on
drive
wheels, reducing steering
control.
If
necessary
to
drive tractor
with header removed, use transmission
low
speed range,
do
not
exceed
half
maximum
engine speed and avoid loose gravel and
slopes.
WARNING:
Harvest Header with
Transport
Option
This
wind rower tractor is
not
intended
as
a towing vehicle for the
Harvest
Header
Transport
configuration.
If
necessary
to
use the tractor
in
this
manner, add a minimum
2000
lb.
(910
kg)
counterweight
on the
lift
linkage.
DETACH AND STORE DRIVELINE
TRACTOR
REEL DRIVE HOSES - STORAGE
41
