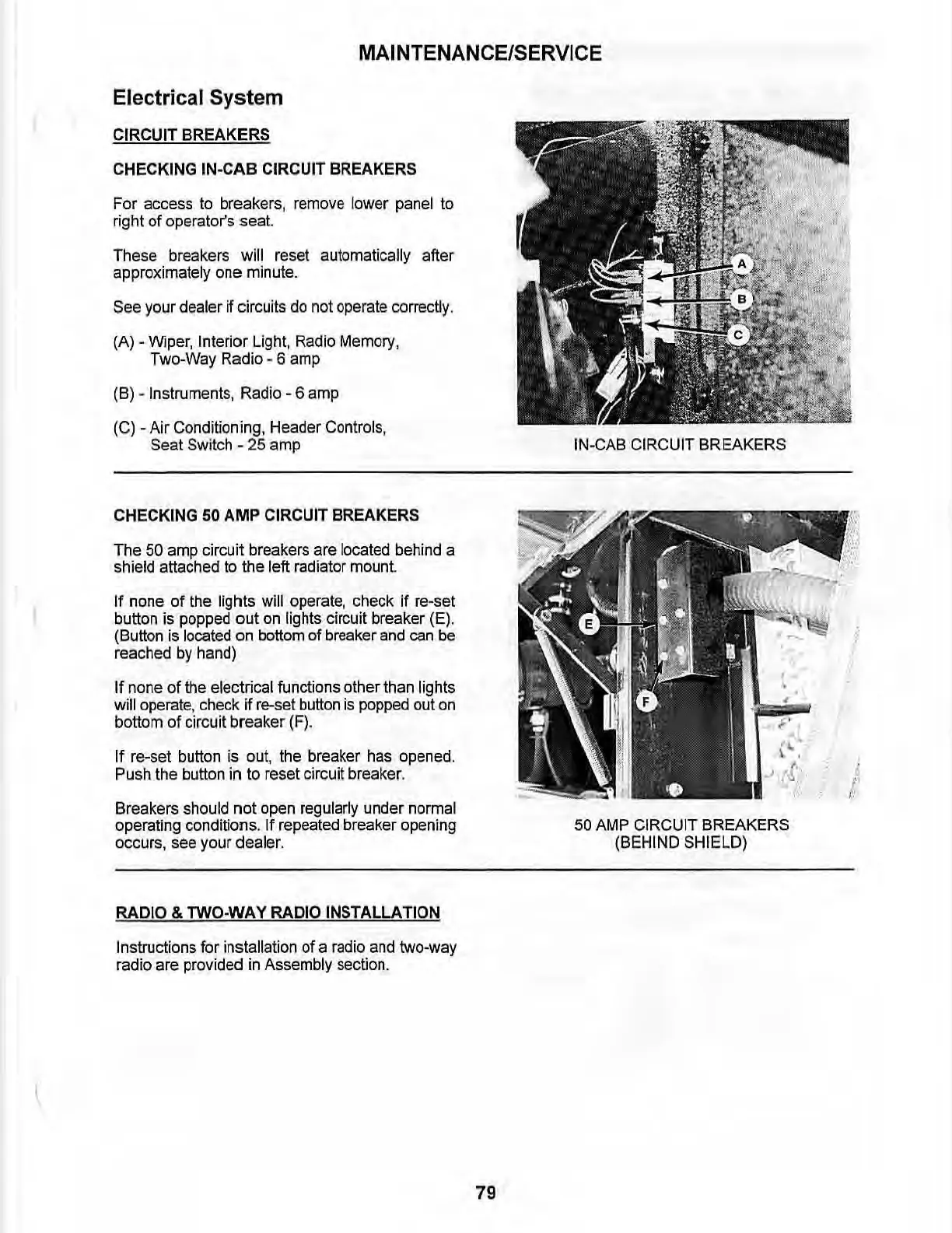

MAINTENANCE/SERVICE
Electrical System
CIRCUIT BREAKERS
CHECKING IN-CAB CIRCUIT BREAKERS
For access to breakers, remove !ower panel to
right of operator's seat.
The se breakers will reset automatically after
approximately one minute.
See your dealer if circuits do not operate correctly .
{Al M Wiper, Interior Light, Radio Memory,
Two-Way Radio - 6 amp
(8) - Instruments, Radio - 6 amp
(C) - Air Conditioning, Header Controls,
Seat Switch - 25 amp
CHECKING 50 AMP CIRCUIT BREAKERS
The
50 amp circuit breakers are located behind a
shield attached
to the left radiator mo unt.
If none of the lights will operate, check if re-set
button is
popped out on lights circuit breaker (El,
(Button is l ocate d on bottom of breaker and can be
reached by hand)
If none of the electrical functions other than lights
will operate, check if re-set button is popped out on
bottom of circuit breaker (F) .
If re-set button is out, the breaker has opened .
Pu sh the button in to reset circ ui t breaker.
Breakers should not
open regularly under norma l
operating conditions.
If repeated breaker opening
occurs,
see your dealer.
RADIO & TWO-WAY RADIO INSTALLATION
Instructions for installation of a radio and Wlo-way
radio are provided in Assembly section.
79
IN-CAB CIRCUIT BREAKERS
50 AMP CIRCUIT BREAKERS
(BEHIND SHIELD)
