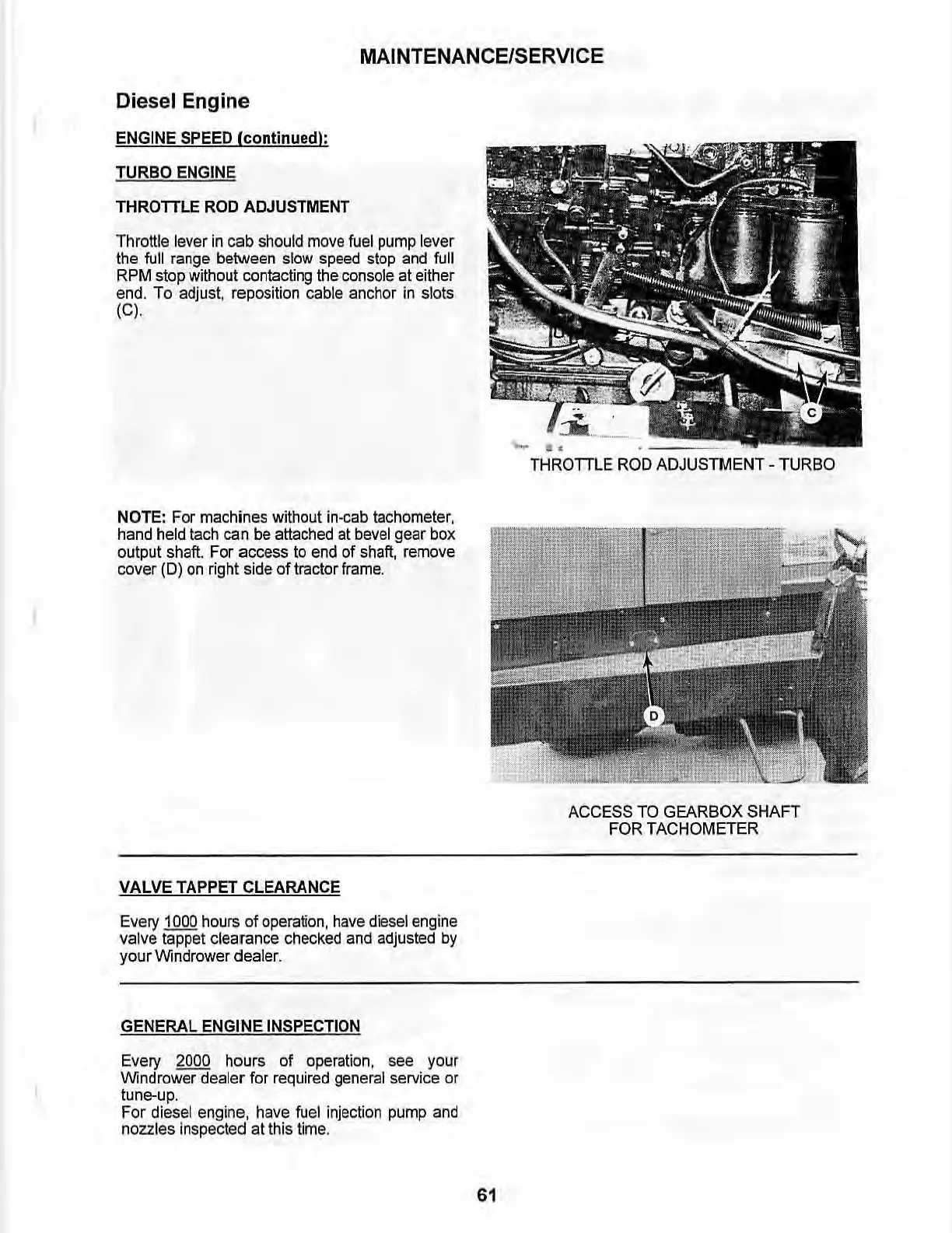

MacDon 9200 - Valve Tappet Clearance; General Engine Inspection

MAINTENANCE/SERVICE
Diesel Engine
ENGINE SPEED (continued):
TURBO ENGINE
THROTTLE ROD ADJUSTMENT
Throttle lever in cab should move fuel pump lever
the full range between slow speed stop and full
RPM stop without contacting the console at either
end. To adjust, reposition cable anchor in slots
(C).
NOTE: For machines without in-cab tachometer,
hand held tach can be attached at bevel gea r box
output shaft. For access to end of shaft, remove
cover
(D) on right side of tractor frame .
VALVE TAPPET CLEARANCE
Every 1000 hours of operation, have diesel engine
valve tappet clearance checked and adjusted by
your Windrower dealer.
GENERAL
ENGINE INSPECTION
Every 2000 hours of operation, see your
Windrower dealer for required general service or
tune-up.
For diesel engine, have
fuel injection pump and
nozzles inspected at this time .
61
.... ..
THROTTLE ROD ADJUSTMENT - TURBO
ACCESS
TO GEARBOX SHAFT
FOR TACHOMETER
