MAINTENANCE/SERVICE

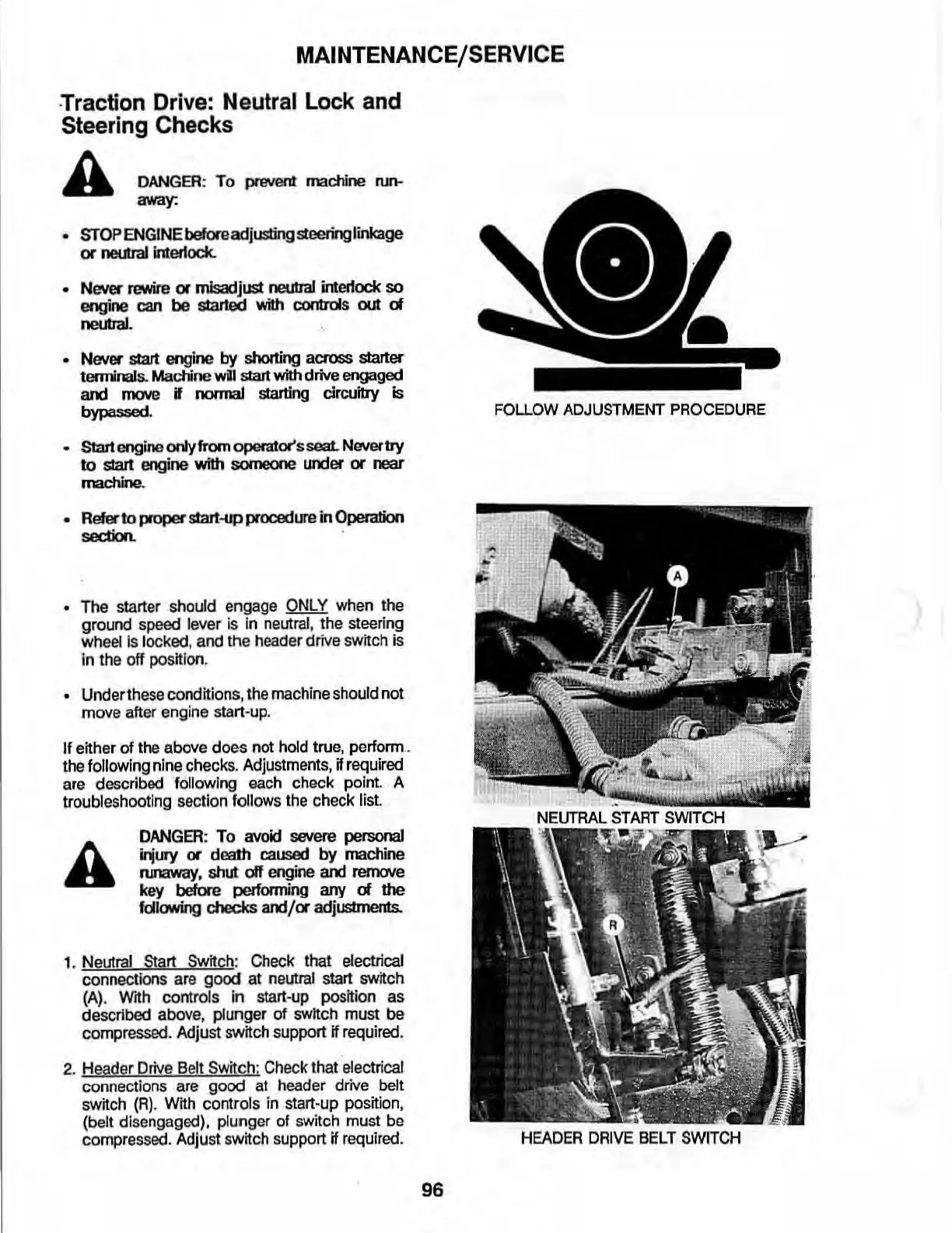

Traction Drive: Neutral Lock and
Steering Checks
A
DANGER: To prevent machine roo-
..... y:
• STOPENGINEbeioreadjustingsteeringlinl<age
or neooai1nlel1-.
• Never rewire or mlsadjust neutral interlock so
engine can be sIarIod with controls out d
neutral.
• Never sIarI engine by shelling across _
terminals. Machine wi! sIarI with drive engaged
and
move I normal Slarting circuitry Is
bypa .....
• Start engine only from operaIOI's seal Nevertry
to start engine with someone under or near
machine.
• Relerto proper sIarI-up procedure In Operation
sedIon.
• The starter should engage QNLY when the
ground speed lever is in neutral, the steering
wheel is locked. and the header driVe switch is
in the off position,
• Underlhese conditions, the machine should not
move after engine start·up.
If either of the above does not hold true, perform ..
the following nine checks. Adjustments, if required
are described following each check point . A
troubleshooting section follows the check list.
A
DANGER: To avoid severe persornJ
injury or death caused by machine
runaway, shut off engine and remove
key
before peIforming aIrf d the
following checl<s and/or adjustments.
1. Neutral Start Switch: Check that electrical
connections are
good at neutral start switch
(A) . With controls In start-up posfUon as
described above, plunger of switch must be
compressed. Adjust switch support if required.
2. Header Drive Belt
Switch: Check that electrical
connections are goocl at header drive belt
switch
(A) . With controls in start-up position,
(belt disengaged), plunger of switch must be
compressed. Adjust switch support
if required.
FOLLOW ADJUSTMENT PROCEDURE
HEADER DRIVE BELT SWITCH
96
