MacDon 9200 - Preventing Alternator and Regulator Damage

MAINTENANCE/SERVICE
Electrical
System
PREVENTlNG ALTERNATOR AND REGULATOR DAMAGE
1. Always disconnect battery ground cable when
working with the alternator or regliator.
2. Never attempt to polarize alternator or
regulator.
3. If wires are disconnected from the alternator (8)
or regulator (C) , use the photo at right to
en sure pro per reconnect ioo.
4. Never ground the alternator field tenninal or
field circuit .
5. Never connect or disconnect alternator or
regulator wires with battery connected or
alternator operating.
6. AJways disconnect cables from the battery
when charging battery in windrower.
7. Connect all cables before operating engine.
76

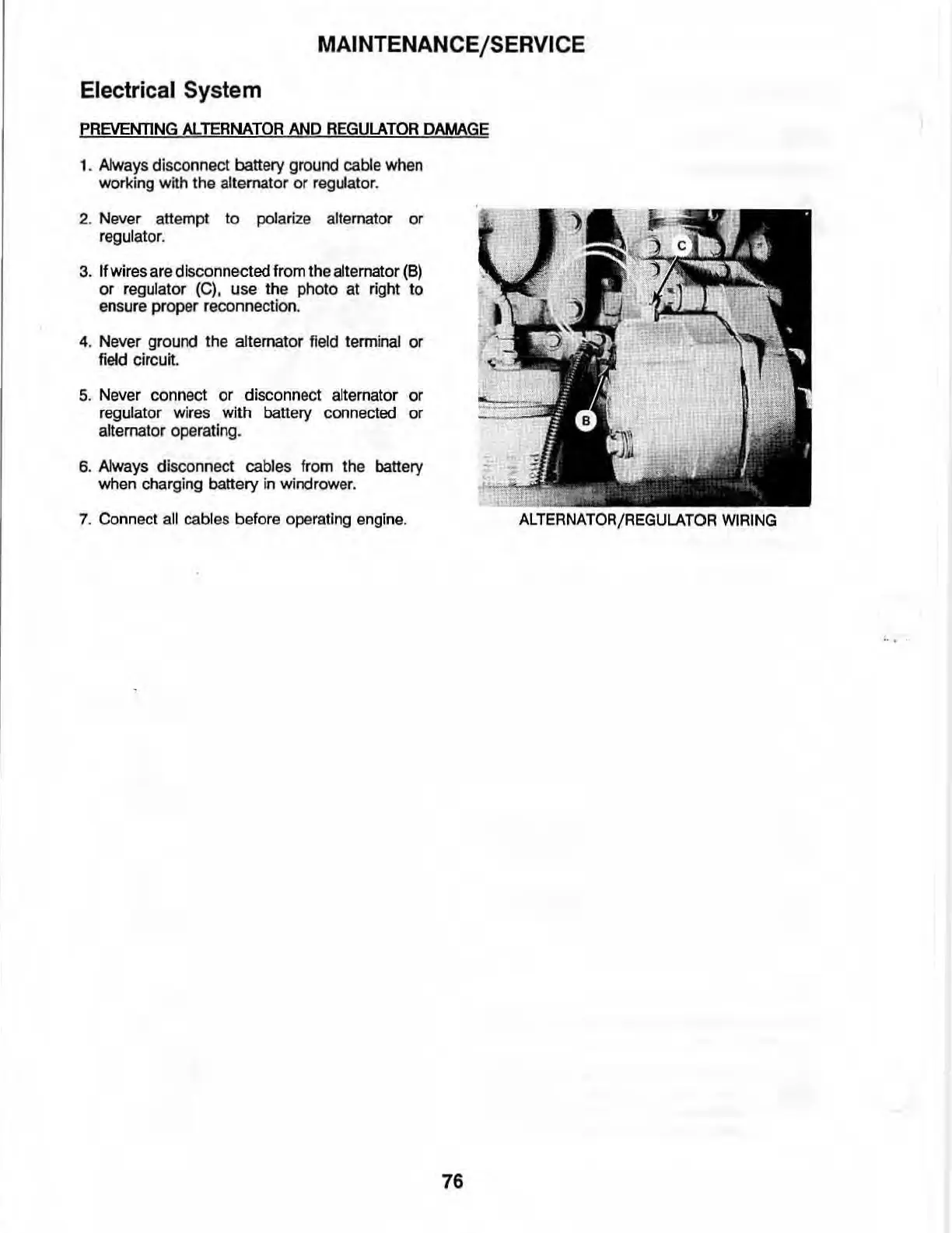

ALTERNATOR/REGULATOR WIRING
