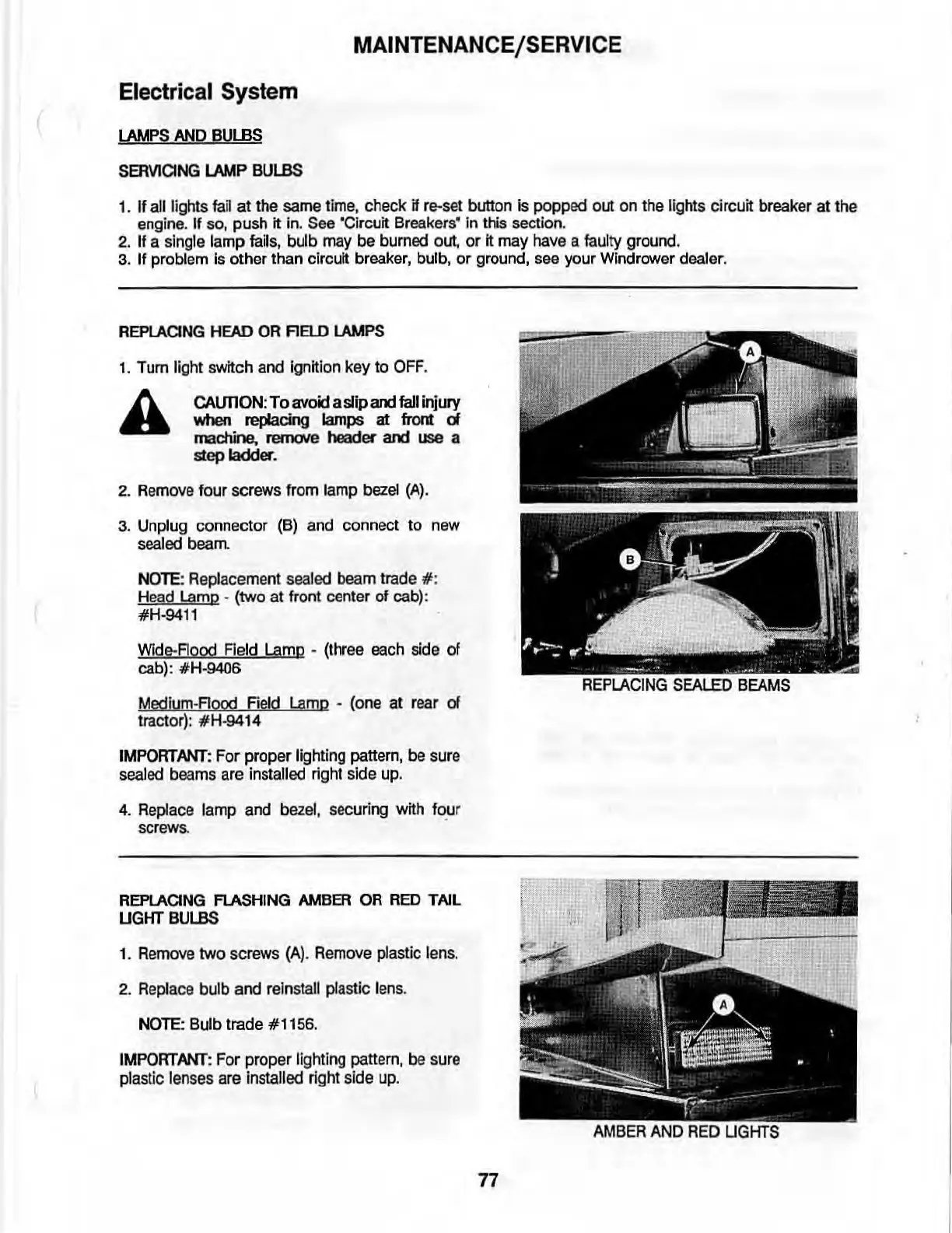

MAINTENANCE/SERVICE
Electrical System
lAMPS
AND
BUUlS
SERVICING
lAMP
BUUlS
1.
If all lights
fan
at
the same time, check if re.set button
ts
popped out on the lights circuit breaker
at
the
engine. If so, push it in. See ·Circuit Breakers· in this section.
2.
If a single
lamp
fails, bulb may
be
bumed out,
or
it may have a faulty ground.
3.
If problem is other than circuit breaker, bulb,
or
ground, see
your
Windrower dealer.
REPlACING HEAD DR
AElD
lAMPS
1.
Tum
light switch and ignitIon key
to
OFF.
CAlJIlON:
To
avoid
asllpand
fall injury
when replacing lamps at front
ci
machine. remove header and use a
slep ladder.
2. Remove four screws from lamp bezel
(A)
.
3.
Unplug connector
(8)
and
connect to new
sealed
beam
.
NOlE:
Replacement
sealed
beam
trade
#:
Head Lamp -
(two
at front center
of
cab):
#H-9411
Wlde-Aood Field Lamp
• (three each side
of
cab):
#H-9406
Med
j
um
-
Am
Fiefd
lamp
-
(one
at rear
of
lraclor):
#H
-9414
IMPORTANT:
For proper lighting
pattern,
be
sure
sealed beams are installed right side
up
.
4.
Replace lamp and bezel, securing with fO,
ur
screws.
REPLACING
FLASHING AMBER OR
RED
TAIL
UGHT
BUUlS
1.
Remove two screws
(A)
. Remove plastic lens.
2. Replace bulb and reinstall plastic lens.
NOTE: Bulb trade #1156.
IMPORTANT:
For proper lighting
pattern,
be
sure
pla
stic
len
s
es
are
installed
right
side
up
.
77
