OPERATOR'S STATION
Seat
OPERATOR
WEIGHT
&
SEAT
HEIGHT
ADJUSTMENT
Press
knob
(A)
in
to increase
suspension
stiffness
and seat height. Pull knob out to decrease.
SEAT-BACK
ANGLE
Pull
up
on
lever (8),
position
seat-back
as
desired
,
and release lever.
LUMBAR
SUPPORT
Rotate knob (C) to position lumbar support as
desired
.
SEAT
FORE-AFT
POSITION
To adjust, pull out on lever (0), move seat forward
or
rearward to desired position and release lever.
SEAT
FORE-AFT
ISOLATOR
LOCKOUT
To
l
ock
out fore-aft isolator, push down on lever
(E).
ARM
REST
Arm
rest
has
two
positions
,
vertical
and
horizontal.
Raise left hand arm rest when leav
ing
seat for
easier exit and re-entry.

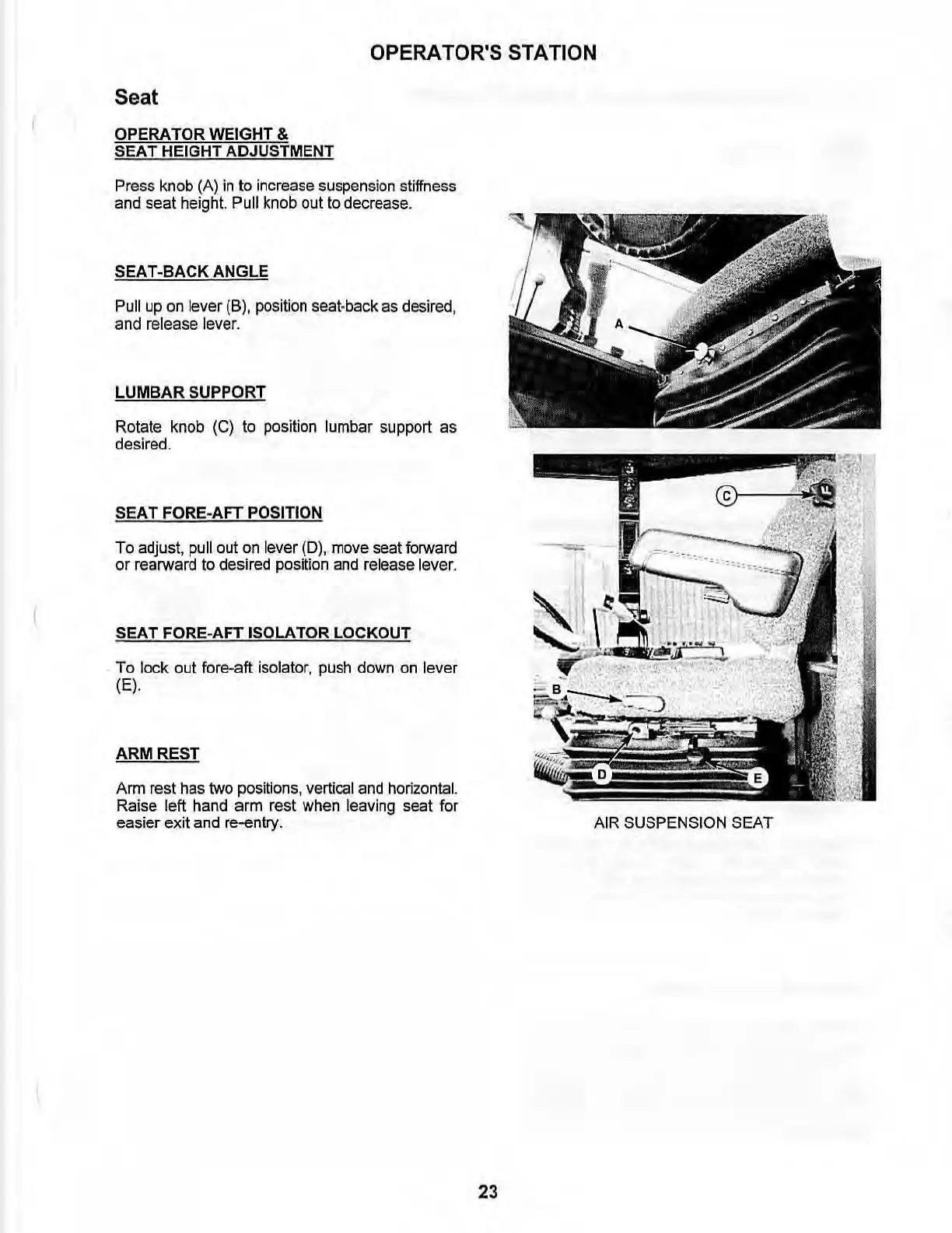

AIR SUSPENSION
SEAT
23
