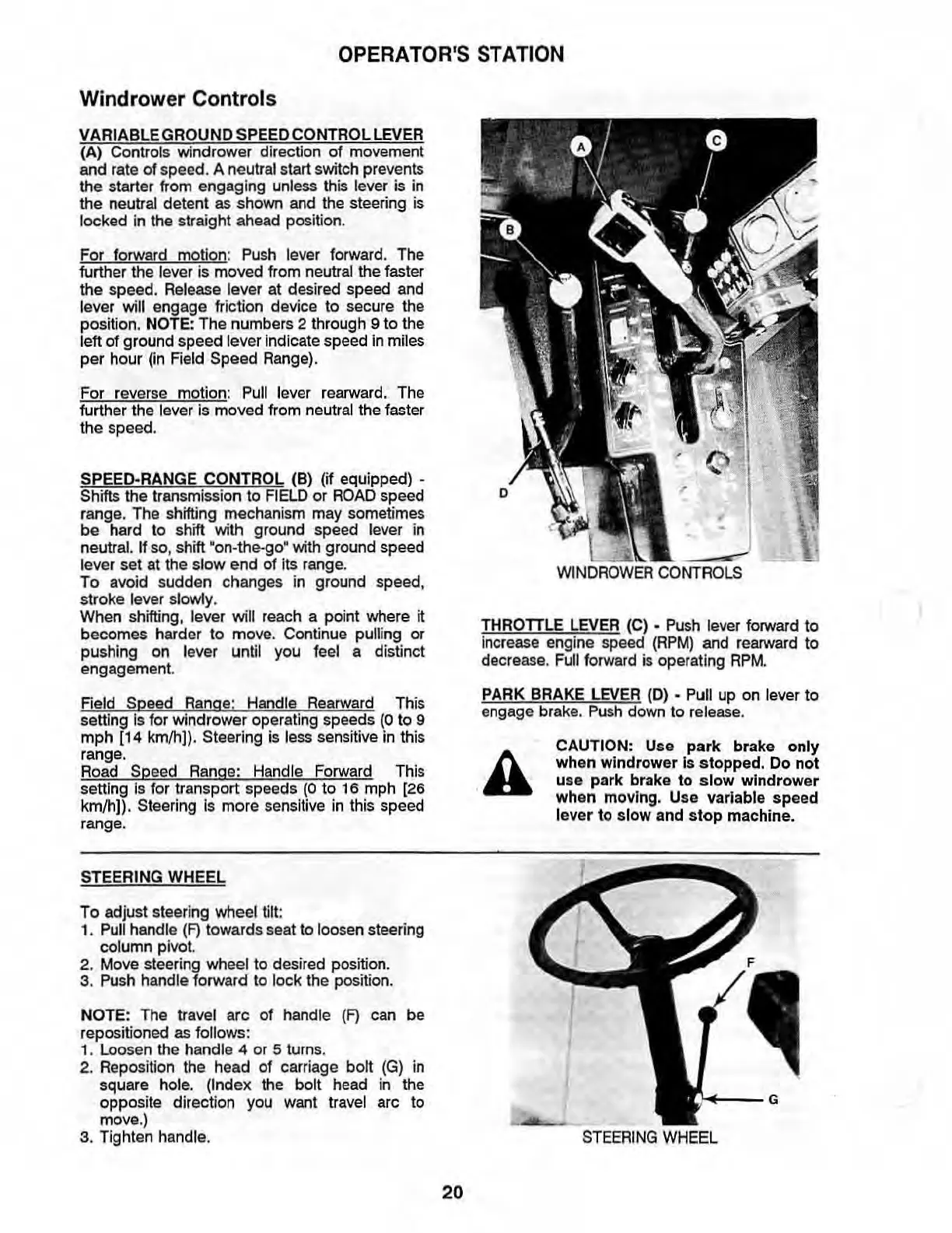

OPERATOR'S STATION
Windrower Controls
VARIABLE
GROUND
SPEED
CONTROL
LEVER
(A) Controls wind rower direction of movement
and
rate
of
speed
. A neutral start switch
pre
vents
the starter from engaging unless this lever is in
the neutral
detent
as shown and the steering is
locked in the straight ahead position.
For forward motion:
Push
lever forward. The
further the lever is moved from neutral the faster
the speed. Release lever at desired speed and
lever will engage friction device to secure the
position.
NOTE:
The numbers 2 through 9 to the
left
of
ground
speed
lever indicate
speed
in miles
per
hour
(in Field
Speed
Range).
For reverse motion:
Pull
lever rearward. The
further the lever is
moved
from neutral the faster
the
speed.
(~
equipped)
•
or ROAD speed
range
. The shifting mechanism may sometimes
be hard to shrtt with ground speed lever
in
neutral. If so, shift
·o
n·the-go· with ground speed
lever set at the slow end
of
its range.
To avoid sudden changes
in
ground speed,
stroke lever slowty.
When shifting. lever will reach a point where it
becomes harder
to
mo
ve.
Continue pulling or
pushing on lever until you feel a distinct
engagement.
Field Speed Range: Handle Rearward This
setting
Is
for windrower operating speeds
(0
to 9
mph [14 km/h]). Steering
is
less sensitive
in
this
range.
Road Speed Range: Handle Forward This
setting
is
for transport speeds
(0
to
16 mph
(26
km/h]). Steering
Is
more sensitive
in
this speed
range.
STEERING
WHEEL
To adjust steering wheel tilt:
1. Pull handle
(F)
towards seat to loosen steering
column pivot.
2. Move steering wheel to desired position.
3. Push handle forward to lock the position.
NOTE: The travel arc
of
handle
(F)
can be
repositioned
as
follows:
1. Loo
sen
the handle 4 or 5 turns.
2. Reposition the head of carriage bolt
(G)
in
square hole. (Index the bolt head in the
opposite direction you want travel arc to
move.)
3. Tighten handle.
20
THROTTLE LEVER (C) •
Push
lever forward to
increase engine speed
(RPM)
and rearward to
decrease. Full forward
is
operating
RPM
.
PARK BRAKE
LEVER
(D) - Pull
up
on
lever to
engage brake.
Push
down to release.
CAUTION: Use park brake only
when
windrower
Is
stopped. Do
not
use park brake
to
slow
wlndrower
when
moving. Use variable speed
lever
to
slow and
stop
machine.
STEERING WHEEL
