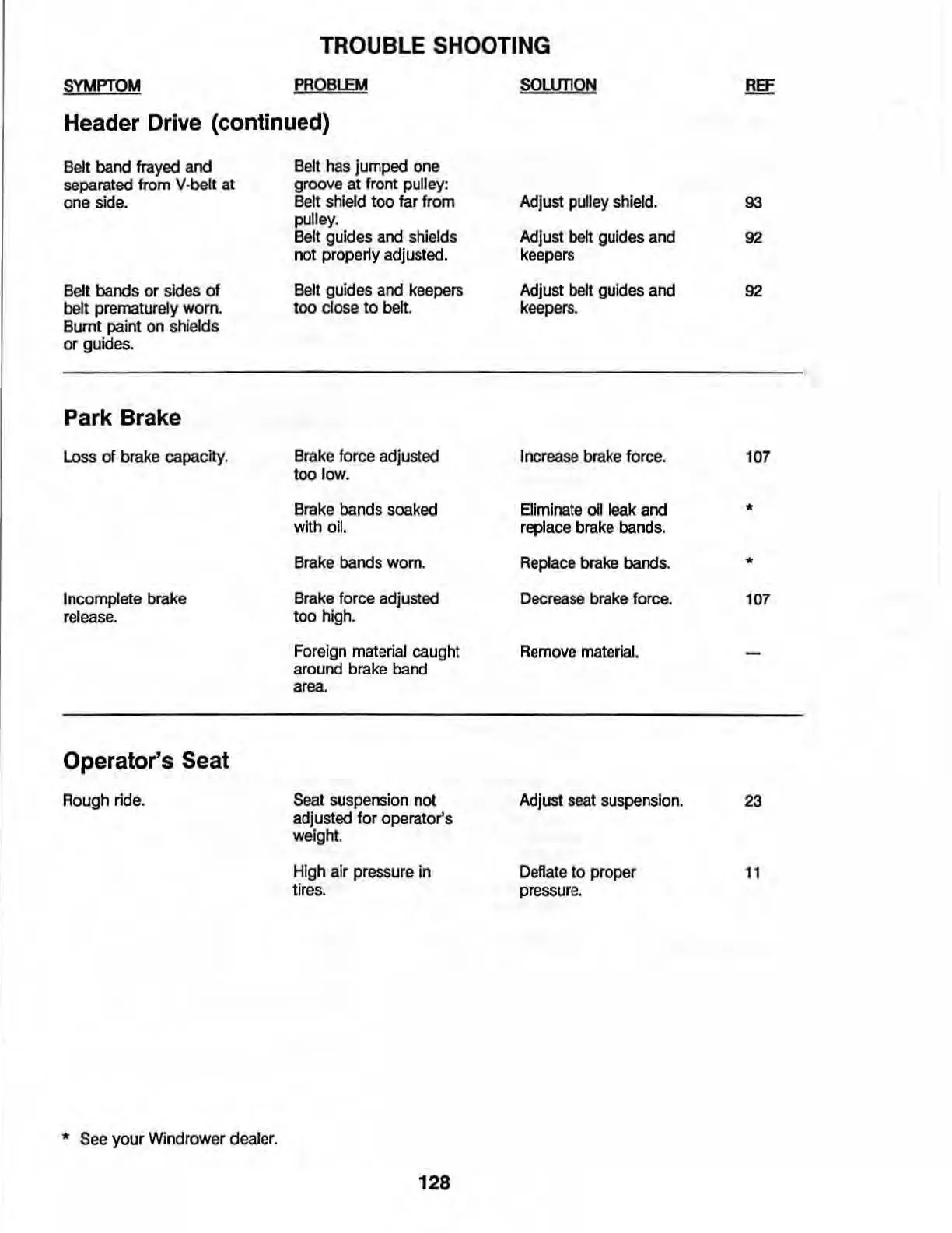

TROUBLE SHOOTING
SYMPTOM
PROBLEM soumON
Header Drive (continued)
Belt band frayed and
separated from V-bell at
one skle.
Belt bands or sides of
belt prematurely worn.
Burnt paint on shields
or guides.
Park Brake
Loss of brake capacity.
Incomplete brake
release.
Operator's Seat
Rough ride.
* See your Windrower dealer.
Belt has Jumped one
groove at front pulley:
Belt shield too far from
pu lley.
Belt
guides and shields
not property adjusted.
Belt guides and keepers
too close to belt
Brake force adjusted
too low .
Brake bands soaked
with oil.
Bra ke bands worn .
Brake force adjusted
too high.
Foreign material caught
around brake
band
area
Seat suspension not
adjusted for operator's
weight.
High air pressure in
tir es .
128
Adjust pul ley shield.
Adjust belt guides and
keepers
Adjust belt guides and
keeper.; .
Incr ease brake force.
Eliminate oil leak and
repla ce brake bands.
Replace brake bands.
Decrease brake force.
Remove material .
Adjust
sea t suspension.
Deflate to proper
pressure .
93
92
92
107
*
*
107
23
11
