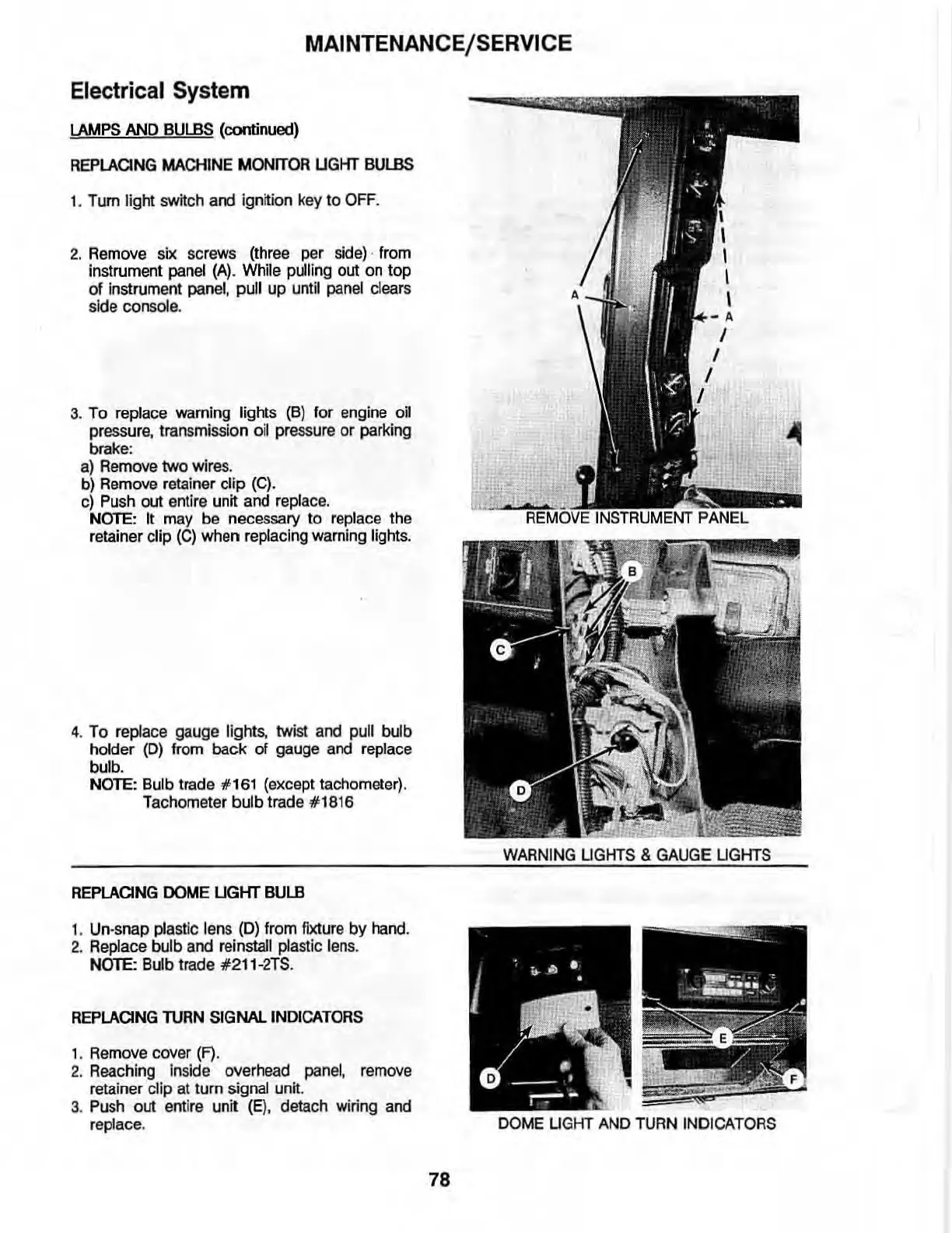

MAINTENANCE/SERVICE
Electrical System
lAMPS AND BULBS (continued)
REPlAONG MACHINE MONITOR UGHr BULBS
1. Tum light switch and ignition key to OFF.
2. Remove six sc rew s (three per side) , from
instrument panel (A) . While pulling out on top
of instrument panel, pull up until panel clears
side console.
3. To replace warning lights (8) for engine oil
pressure, tran s miss ion oil pressure or parking
blake:
a) Remove two wires.
b) Remove reta iner clip (C).
c) Push out entire unit and replace.
NOTE: It may be necessary to replace the
retainer
clip (C) when replacing warning lights.
4. To replace gauge lights, twist and pull bulb
holder (0) from back of gauge and replace
bulb.
NOTE : Bulb trade #161 (except tachometer).
Tachometer bulb trade #1816
REPLACING DOME UGHr BULB
1. Un - snap plast ic lens (D) from rOOur e by hand.
2. Replace bulb and reinstall plastic lens.
NOTE: Bulb trade #211-2TS.
REPLACING TURN SIGNAL INDICATORS
, . Remove cover (F) .
2. Reaching Inside overhead panel , remove
reta iner clip at tum signal unit.
3.
Push out entire unit (E) , detach wiring and
replace.
WARNING UGHrS & GAUGE UGHrS
DOME UGHr AND TURN INDICATORS
78
