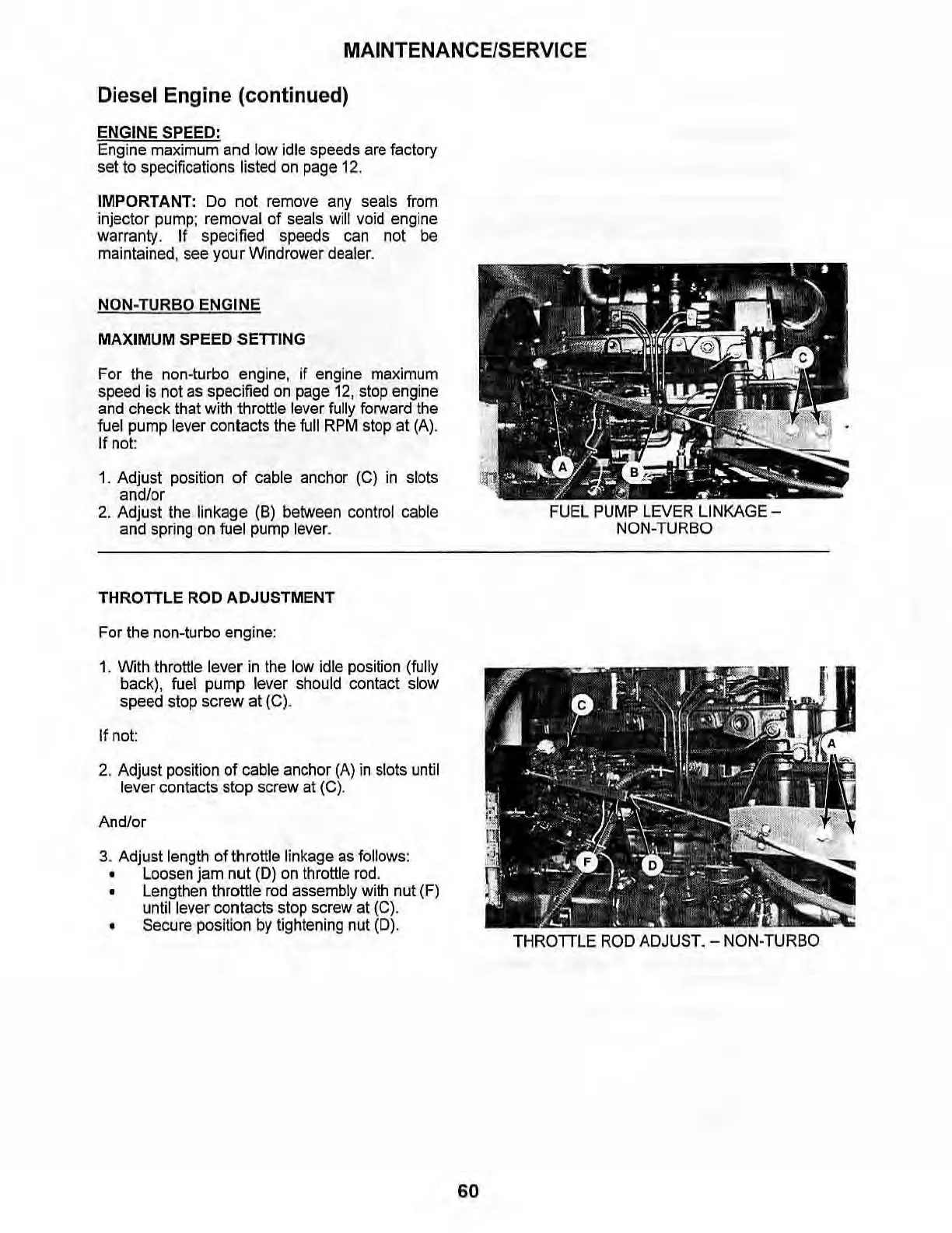

MAINTENANCE/SERVICE
Diesel
Engine (continued)
ENGINE SPEED:
Eng i ne maxi mum and low idle speeds are factory
set to specifications listed
on page 12 .
IMPORTANT: Do not remove any sea ls from
injector pump; removal of seals will void engine
warranty. If specified spe eds can not be
maintained, see you r W1ndrower dealer.
NON-TURBO ENGINE
MAXIMUM SPEED SETTING
For the non ~ turbo engine , if engine maximum
speed is not as specified on page 12 , stop engine
and check that with throttle lever fully forward the
fuel pump lever contacts the full RPM stop at (A) .
It not:
1. Adjust position of cable anchor (e) in slots
and/or
2. Adjust the linkage (8)
between control cable
and spring on fuel pump lever.
THROTTLE ROD ADJUSTMENT
Fo r the non-turbo engine:
1.
With throttle lever in the low idle position (fully
back), fuel pump lever should contact slow
speed stop screw
at (C).
If not:
2. Adjust position of cable anchor (A) in slots until
lever contacts stop screw at (G) .
And/or
3. Adjust
length of throttle linkage as follows:
• Loosen jam nut (0) on throttle rod.
• Lengthen throttle rod assembly with nut (F)
until lever contacts stop screw at (C).
• Secure position by tightening nut (0).
60
FUEL PUMP LEVER LINKAGE-
NON-TURBO
THROTTLE ROD ADJUST. - NON-TURBO
