MacDon 9200 - Page 80

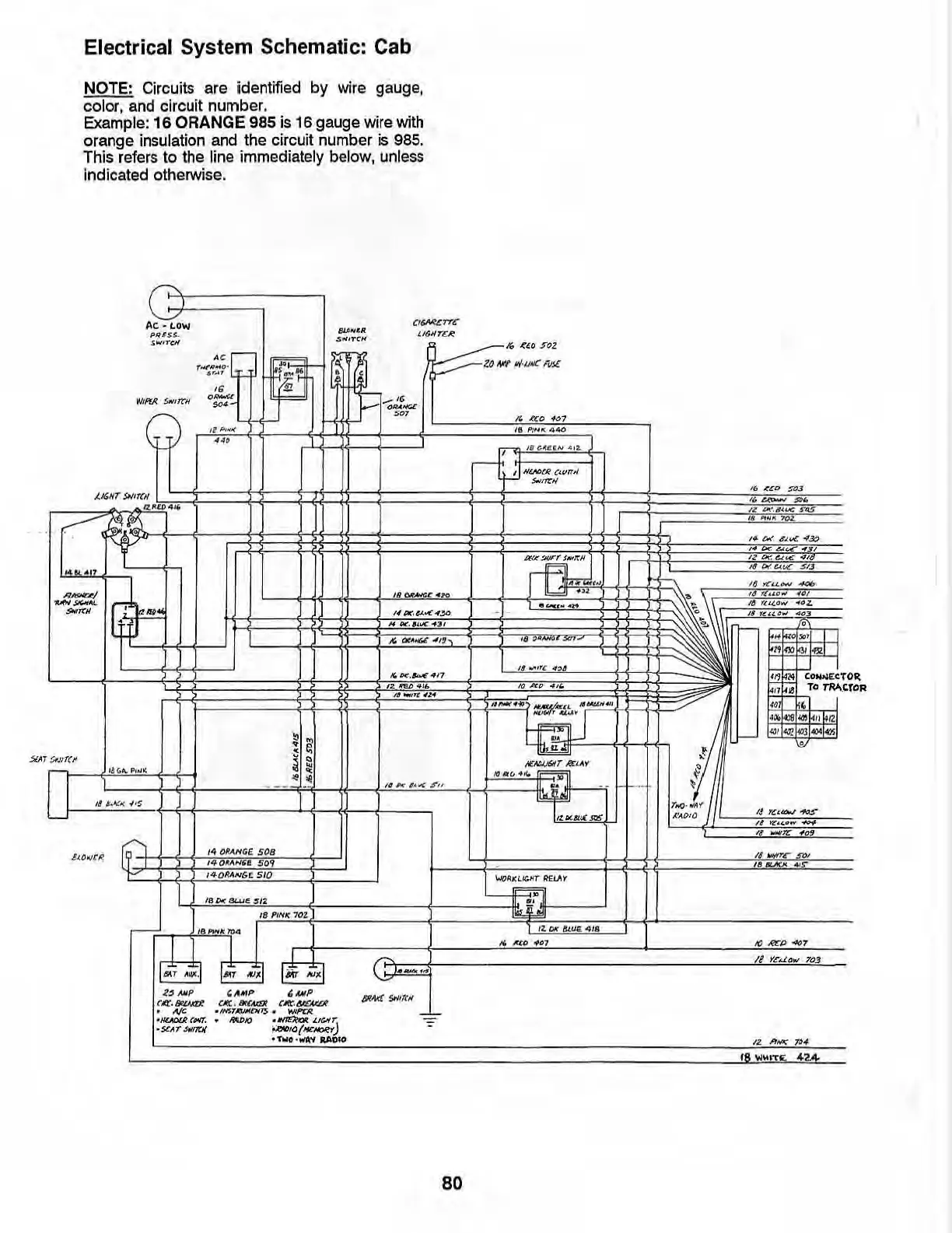

Electrical System Schematic: Cab
NOTE: Circuits are identified by wire gauge,
color. and circuit number.
Example: 16 ORANGE 985 is 16 gauge wire with
orange insulation and the circuit number is 985.
This refers to the line immediately below, unle ss
indicated otherwise.
}-
- ~"~"'~~'"'~ ' -T++------ -L+-#-~---
~
(
80
' ~ =
+
