UNLOADING
One
Forklift
Method
FORKLIFT REQUIREMENT:
One
for1<lift
wnh
a 5,
000
lb
. (2270
kg)
capacity.
CHAIN REQUIREMENTS: Overhead lifting quality chain with a minimum 5000 lb. (2270 kg) working l
oad
lim
i
t.
1.
Back
rear of truck
bed
up
to
an
unl
oading
dock which is the
same
he
ight or slightly lower
than the t
ra
iler bed. Remove miscellaneous
parts shipped
under
tractor
frame.
2. Set forklift tines
to
the widest possible setting.
3. Drive the forklift
up
to
the windrower from the
rear
and
place
forks under
the
rear frame
cross member.
4. Lift rear end of windrower
and
remove drive
wheels
from under
frame
.
5.
In
stall chains from forklift mast to triangular
brackets (A) at rear
of
both windrower frame
front legs.
Be
sure
both
chains
are
the
same
length.
CAUTION: The front frame legs rest
on the trailer bed on skid shoes
(5).
Be
sure there are no
obstructions
to
prevent rearward
sliding
of
the
skid
shoes and watch carefully
that
as
unit
is
dragged, the skid shoes are
not
sliding
sideways towards the side edge
of
the trailer bed.
6.
Drag
windrower r
earwa
rd
off of carrier.
7. Remove chains
and
install front
and
rear ti
res
.
See
"Tires" in Assembly section.
?

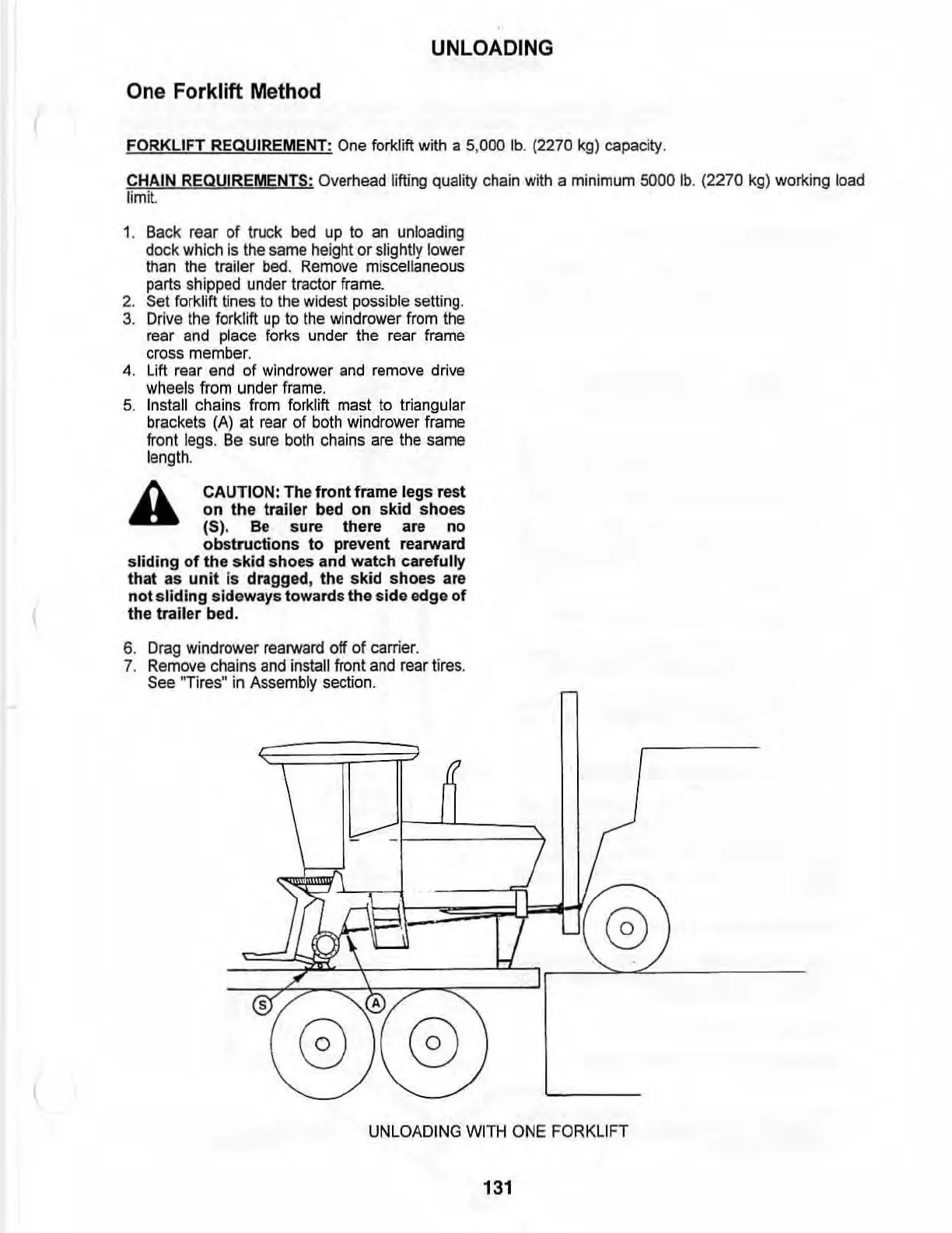

UNLOADING
WITH
ONE
FORKLIFT
131
