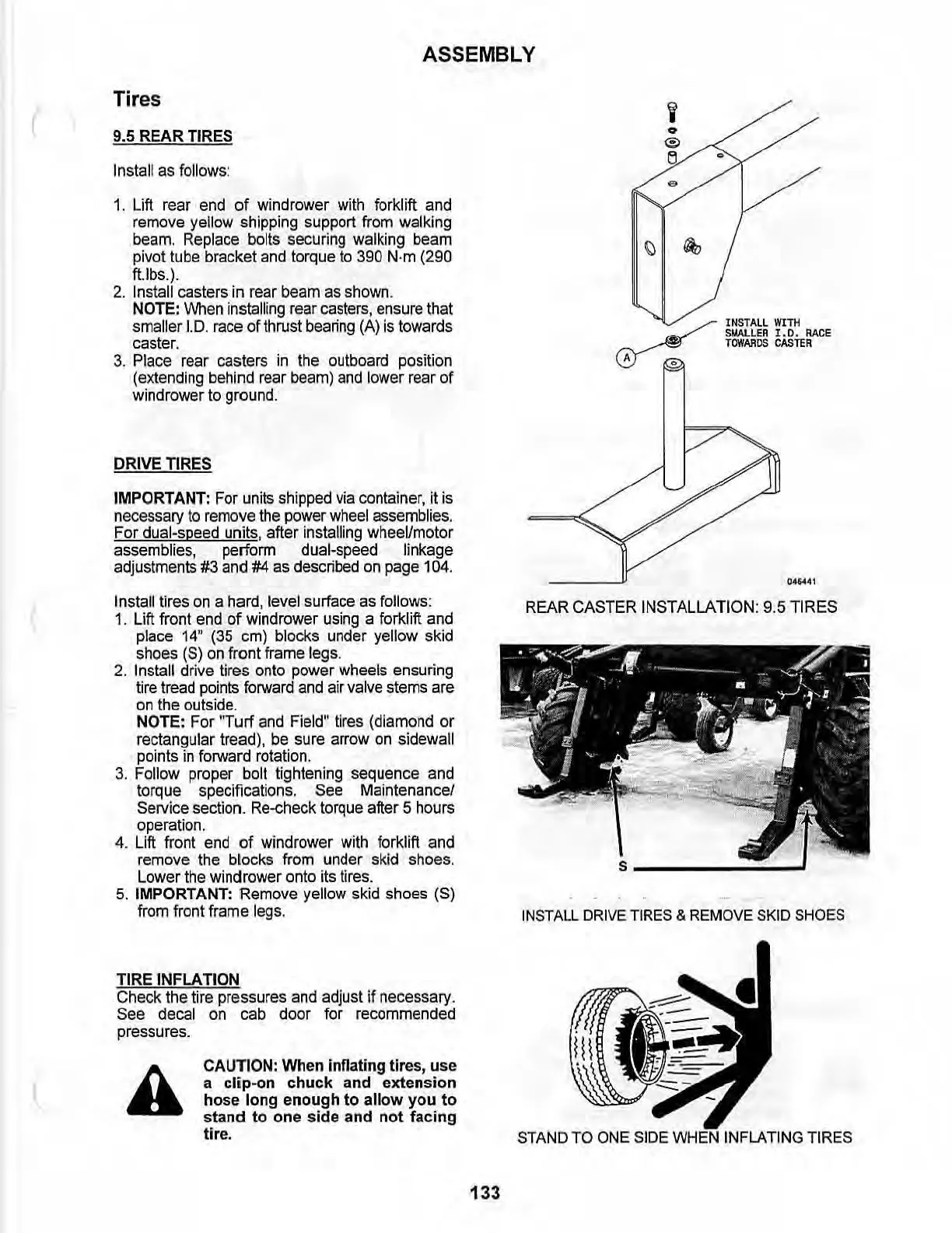

ASSEMBLY
Tires
9.5
REAR
TIRES
Install
as
follows
:
1.
Lift
rear
end
of
wind
rower
with
forklift
and
remove yellow shipping support from walking
beam. Replace bolts securi
ng
walking beam
pivot tube bracket and torque to
390 N·m (290
ft.lbs.).
2.
Install casters in rear
beam
as
shown.
NOTE:
When
installing
rear
casters,
ensure
that
smaller
1.0.
race
of thrust
bearing
(A)
is
towards
caster.
3.
Place
rear
casters
in
the
outboard
position
(extending
behind
rear
beam)
and
lower
rear
of
windrower to ground.
DRIVE TIRES
IMPORTANT:
For
units
shipped
via
container,
it
is
necessary
to
remove
the
power
wheel
assemblies.
For dual-speed units, after installing wheel/motor
assemblies, perfonn dual-speed linkage
adjustments
#3
and
#4
as
described
on
page
104
.
Install tires
on
a hard, level surface as follows:
1.
lift
front end
of
windrower using a forklift and
place
14
" (35 cm) blocks under yellow skid
shoes
(S) on front frame legs.
2.
install drive tires onto power wheels ensuring
tire tread points forward and air
valve stems are
on the outside.
NOTE: For
"Turf
and Field" tires (diamond
or
rectangular tread), be sure arrow on sidewall
points in forward rotation.
3. Follow proper bolt tightening sequence and
torque specifications.
See Maintenancel
SelVice section. Re-check torque after
5 hours
operation.
4.
lift
front end
of
windrower with forklift and
remove the blocks from under skid shoes.
Lower the wind rower onto its tires.
5.
IMPORTANT: Remove yellow skid shoes (S)
from front frame legs.
TIRE INFLATION
Check the tire pressures and adjust
if
necessary.
See decal on cab door for recommended
pressures.
A
CAUTION:
When
Inflating tires,
use
a cllp-on chuck and extension
hose long enough
to
allow you
to
stand to one side and
not
faCing
tire.
133
•
e
~
tNS
T
ALL
Wt"TM
SUAlLEA
I.D.
RACE
TOWAADS
CASTER
, .
REAR CASTER INSTALLATION: 9.5
TIRES
IN
S
TALL
DRIVE
TIRE
S &
REMOVE
SKID
SHOES
