MacDon D50 - Page 106

169441 94 Revision D
1001653
A
B
C

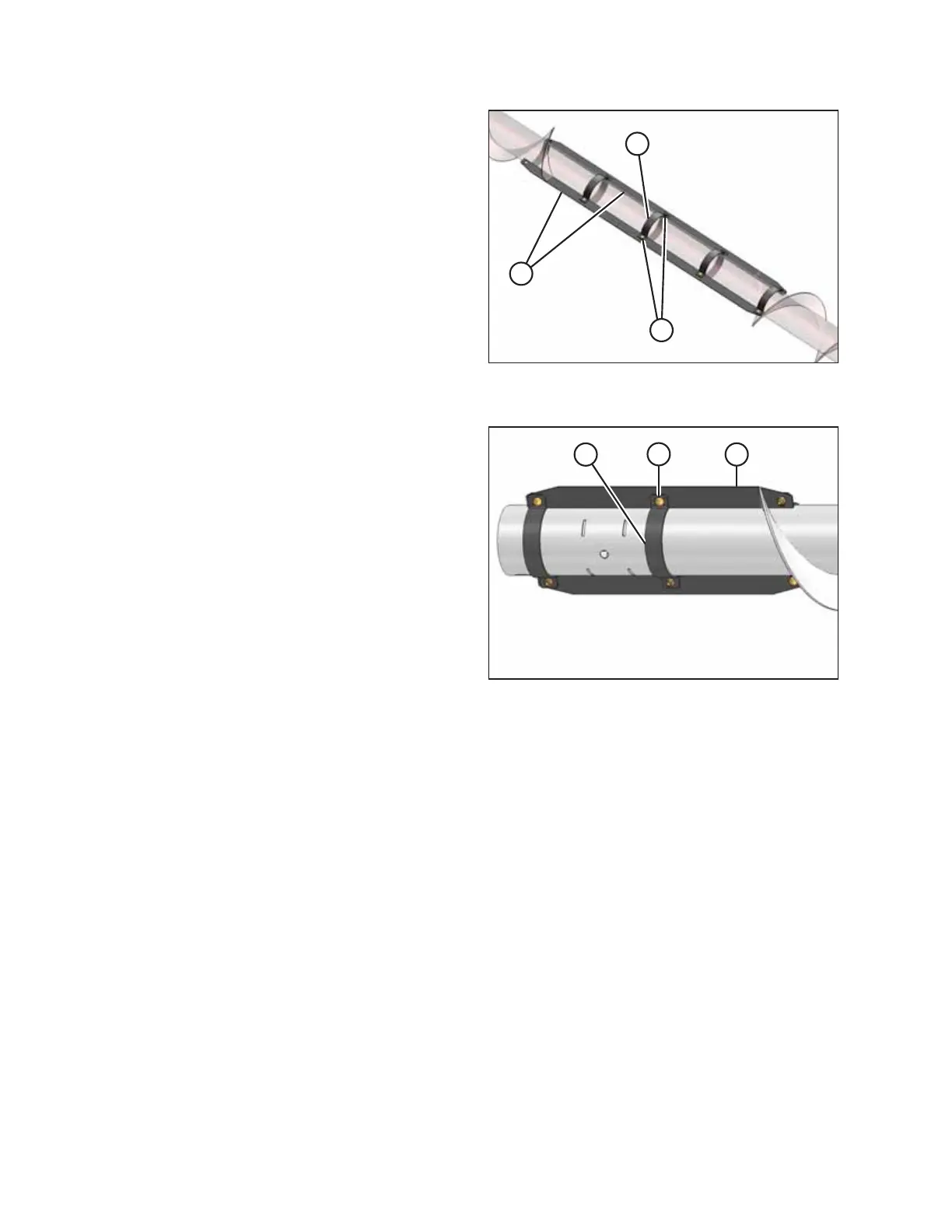

Figure 3.91: Beater Bars
3. Position one beater bar (B) and one clamp set (C) onto the
auger tube and loosely secure with carriage bolt (A) and
nut. Bolt head MUST face the direction of auger rotation.
4. Position the remaining clamp sets (C) onto the auger tube
and loosely attach to beater bar (B) with carriage bolts (A)
and nuts. Bolt heads MUST face the direction of
auger rotation.
5. Position second beater bar (B) in clamp sets (C) and secure
with carriage bolts (A) and nuts.
NOTE:
To reduce the chance of wrapping, offset the beater
bars by 90°.
6. Tighten the bolts.
1001652
A
B
C
Figure 3.92: Beater Bars
OPERATION
