MacDon D50 - Installing Bushings on Five-Bat Reels

169441 231 Revision D
1001283
A

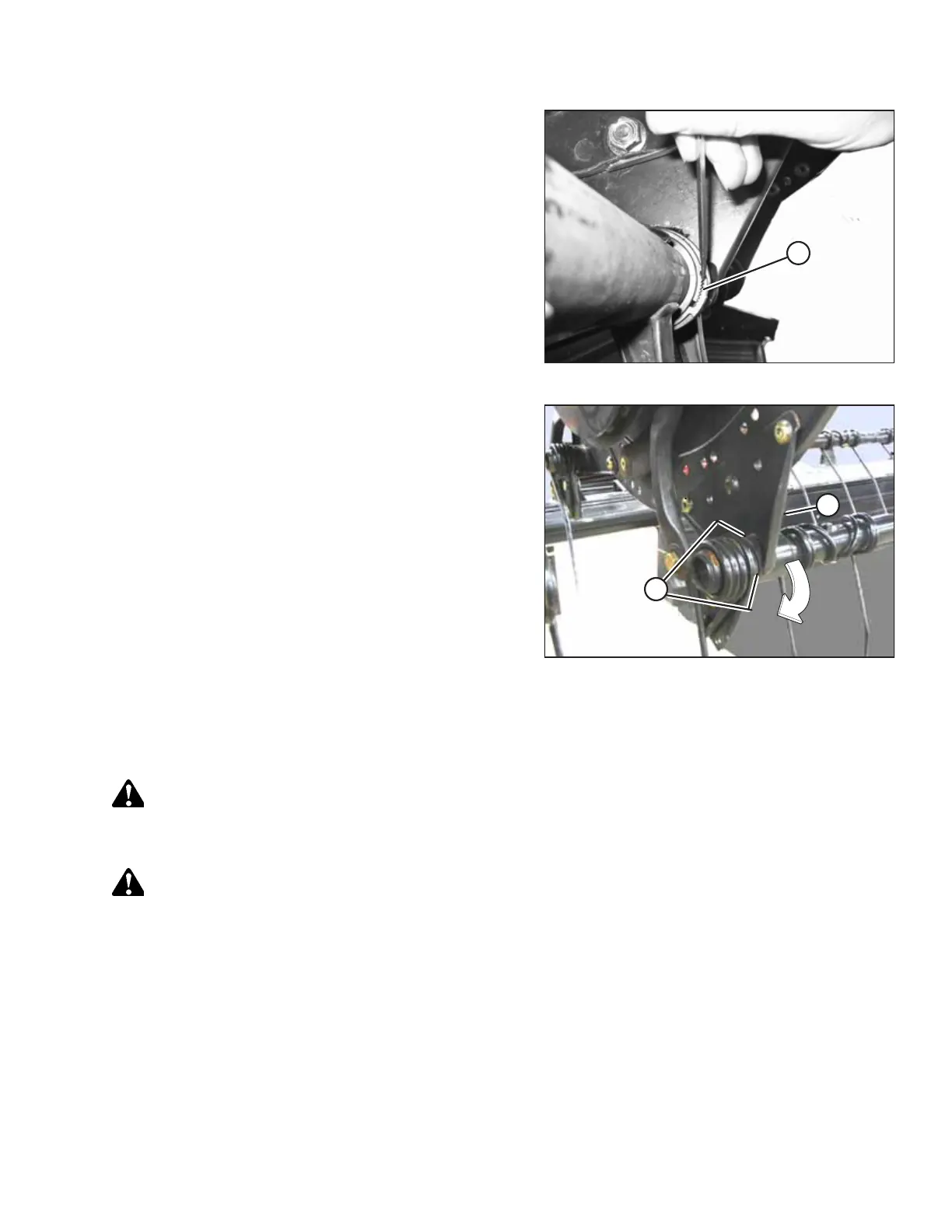

Figure 4.221: Bushing Clamp
11. Release bushing clamp (A) at the cam disc using a small
screwdriver to separate the serrations. Move the clamp off
the bushings.
ϭϬϰϬϭϴϳ
A
B
Figure 4.222: Cam End
12. Rotate arm (A) clear of the disc, and then slide the arm off
the bushing. If required, remove the next tine or plastic
finger so the arm can slide off the bushing. Refer to the
following procedures if necessary:
• Removing Plastic Fingers, page 227
• Removing Steel Tines, page 225
13. Remove bushing halves (B).
Installing Bushings on Five-Bat Reels
Once the old tine tube bushing halves have been removed, the new ones can be installed.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
IMPORTANT:
Ensure tine tube is supported at all times to prevent damage to the tube or other components.
MAINTENANCE AND SERVICING
