4.3.2 Closing Hinged Endshields
The header endshields cover components. After accessing the components you will need to close the endshield.
ϭϬϯϵϵϰϵ
A

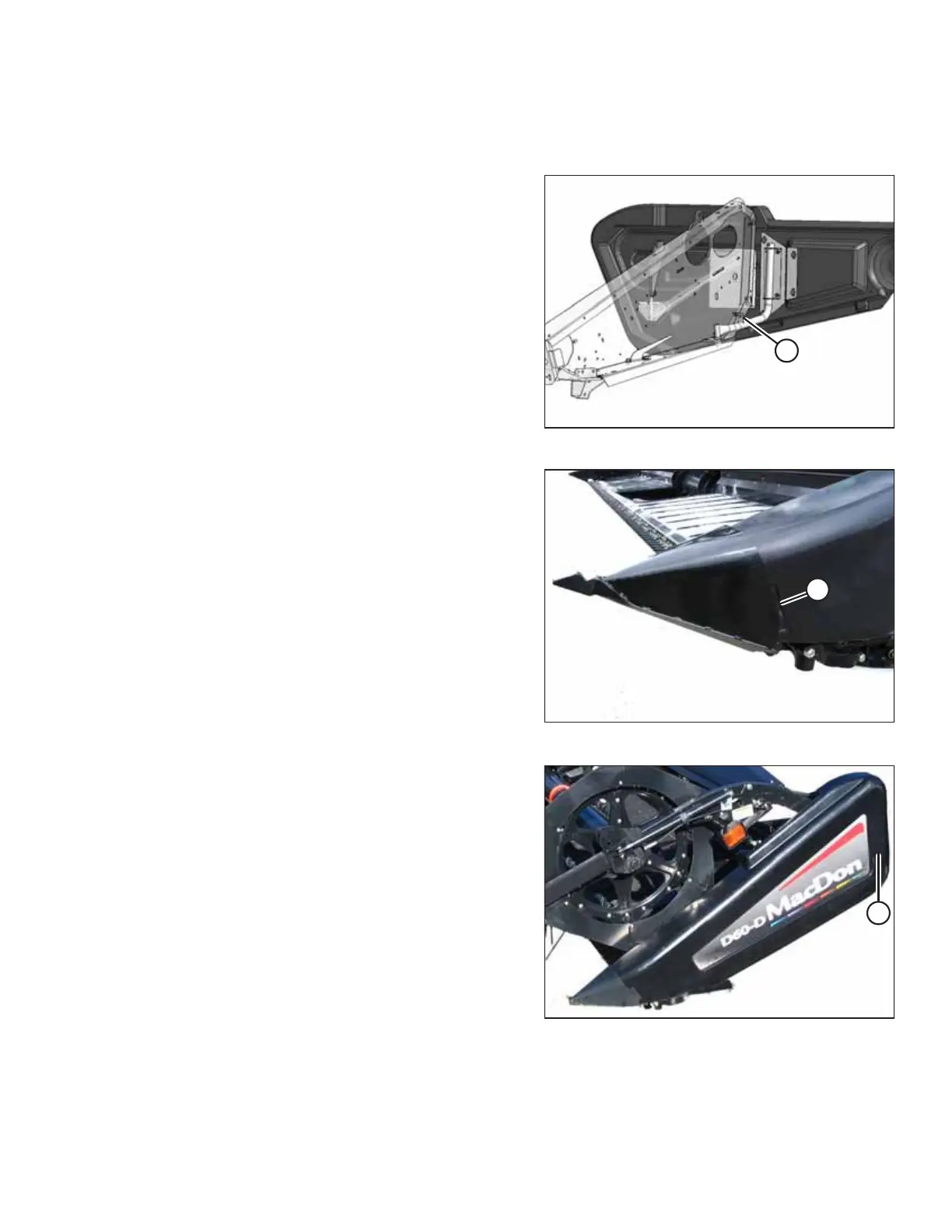

Figure 4.5: Open Endshield
1. Lift latch (A) to allow the endshield to move.
ϭϬϯϵϵϱϬ
A
Figure 4.6: Left Endshield
2. Swing the endshield forward until the front engages crop
divider (A).
ϭϬϯϵϵϱϭ
A
Figure 4.7: Left Endshield
3. Push the endshield in at location (A), opposite the latch.
The endshield will self-latch.
