169441 122 Revision D
4.3.4 Removing Hinged Endshield

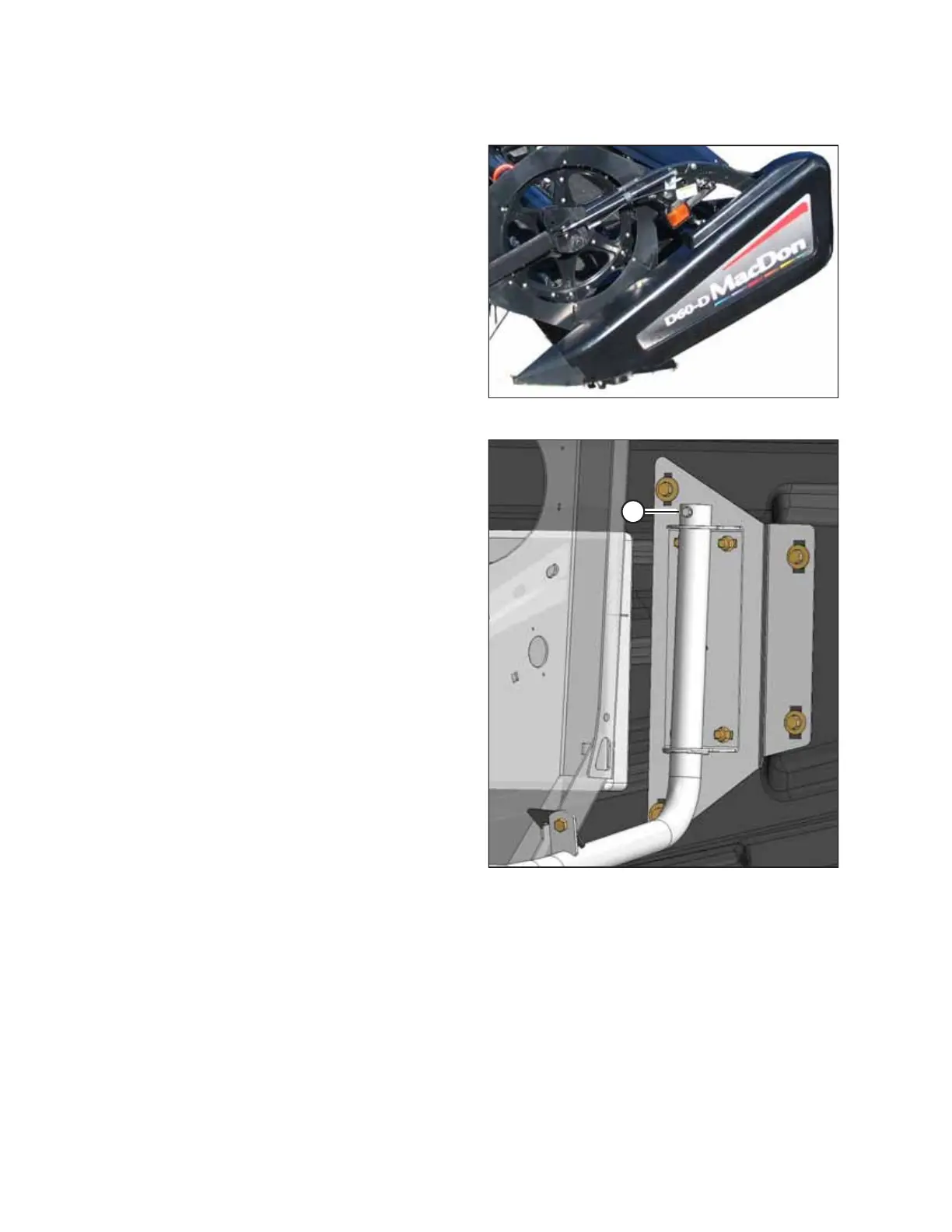

Figure 4.16: Left Endshield
1. Open the endshield. For instructions, refer to 4.3.1 Opening
Hinged Endshield, page 116.
Figure 4.17: Endshield Support
2. Remove screw (A) from the top of the endshield
support tube.
3. Lift the endshield off the support tube.
MAINTENANCE AND SERVICING
