Adjusting Reel Cam – D50
The reel is designed to pick up flattened and severely lodged crops. Adjustment may be required as crop conditions change.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before leaving the operator’s seat for any reason.
1. Lower the reel fully.
2. Lower the header fully.
3. Shut down the engine, and remove the key from the ignition.
ϭϬϯϵϴϰϬ
A

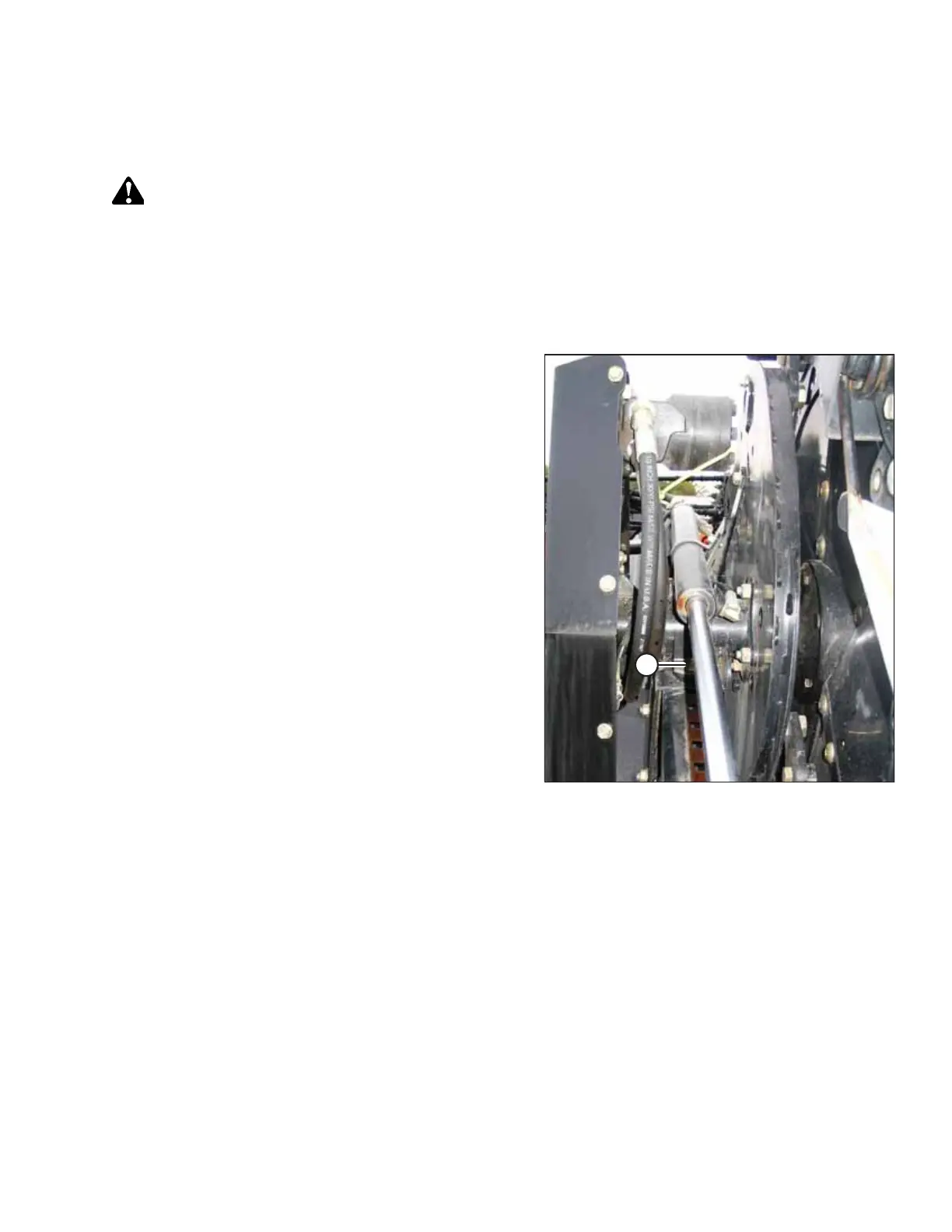

Figure 3.58: Reel Arm – D50
4. Loosen bolt (A) on the clamp securing the cam disc to the
reel arm.
