169441 209 Revision D
Replacing Drive Chain on Double Reel
The drive chain allows the hydraulic reel drive motor to turn the reel. It can be replaced if damaged or worn.
There are two methods for replacing the reel drive chain. Proceed to the procedure that is most appropriate for your
circumstances:
• Method 1: Replacing Drive Chain – Disconnecting Reel Drive Method, page 209
• Method 2: Replacing Drive Chain – Breaking Chain Method, page 213
NOTE:
Method 1 is preferred because chain integrity is not affected.
Replacing Drive Chain – Disconnecting Reel Drive Method
DANGER
To prevent bodily injury or death from the unexpected startup of the machine, always stop the engine and remove the
key before adjusting the machine.
1. Shut down the engine, and remove the key from the ignition.
2. Remove the reel drive cover. For instructions, refer to Removing Reel Drive Cover, page 202.

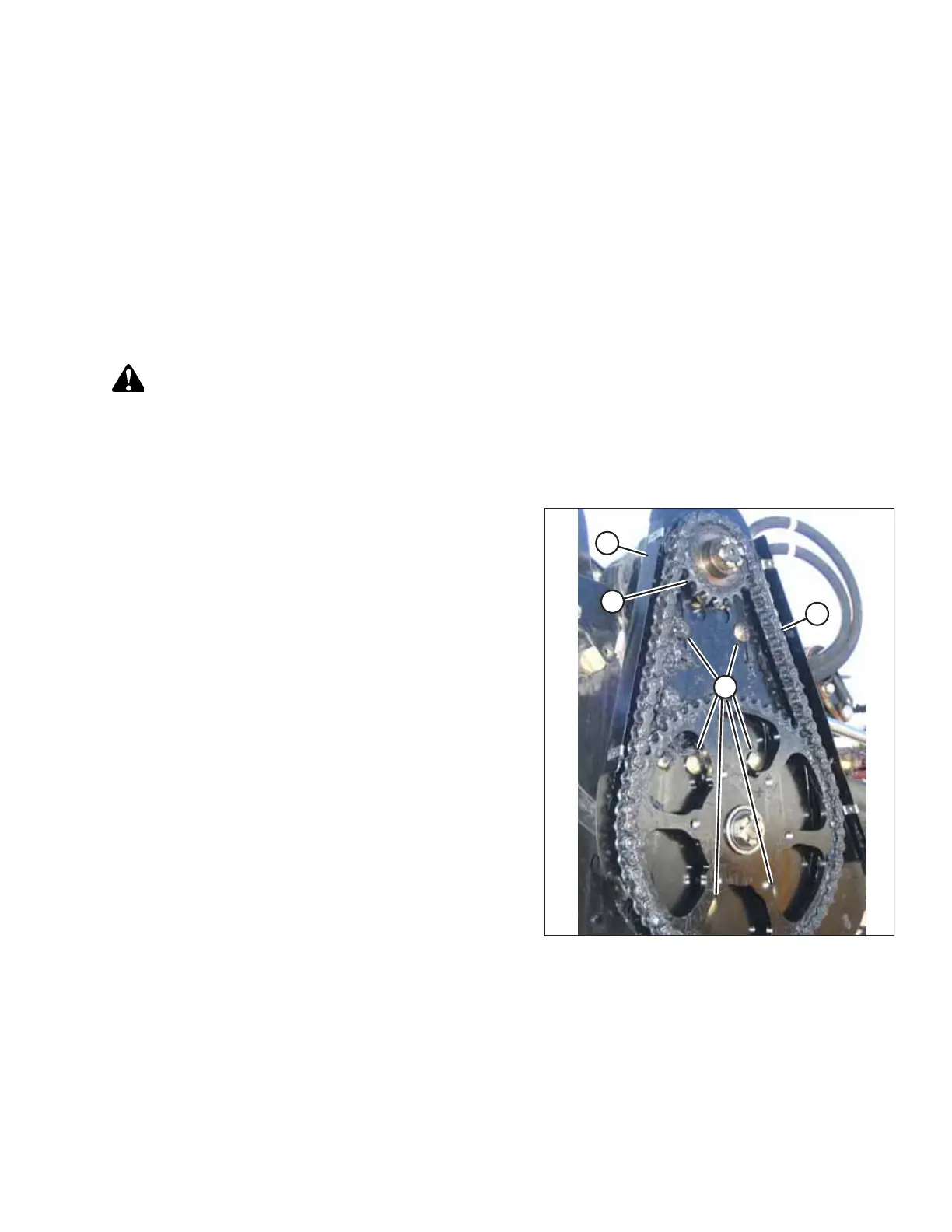

Figure 4.179: Reel Drive
3. Loosen six bolts (A) and slide the motor and motor
mount (B) down towards the reel shaft to loosen the chain.
MAINTENANCE AND SERVICING
