4.3 Endshields
Single-knife headers are fitted with a hinged endshield on the left end of the header for easy access to the header drive.
The right end is not hinged, but is still removable. Double-knife headers are fitted with hinged endshields on both ends of
the header.
4.3.1 Opening Hinged Endshield
Hinged header endshields can be opened to provide access to the components within.
ϭϬϯϵϵϰϴ
A

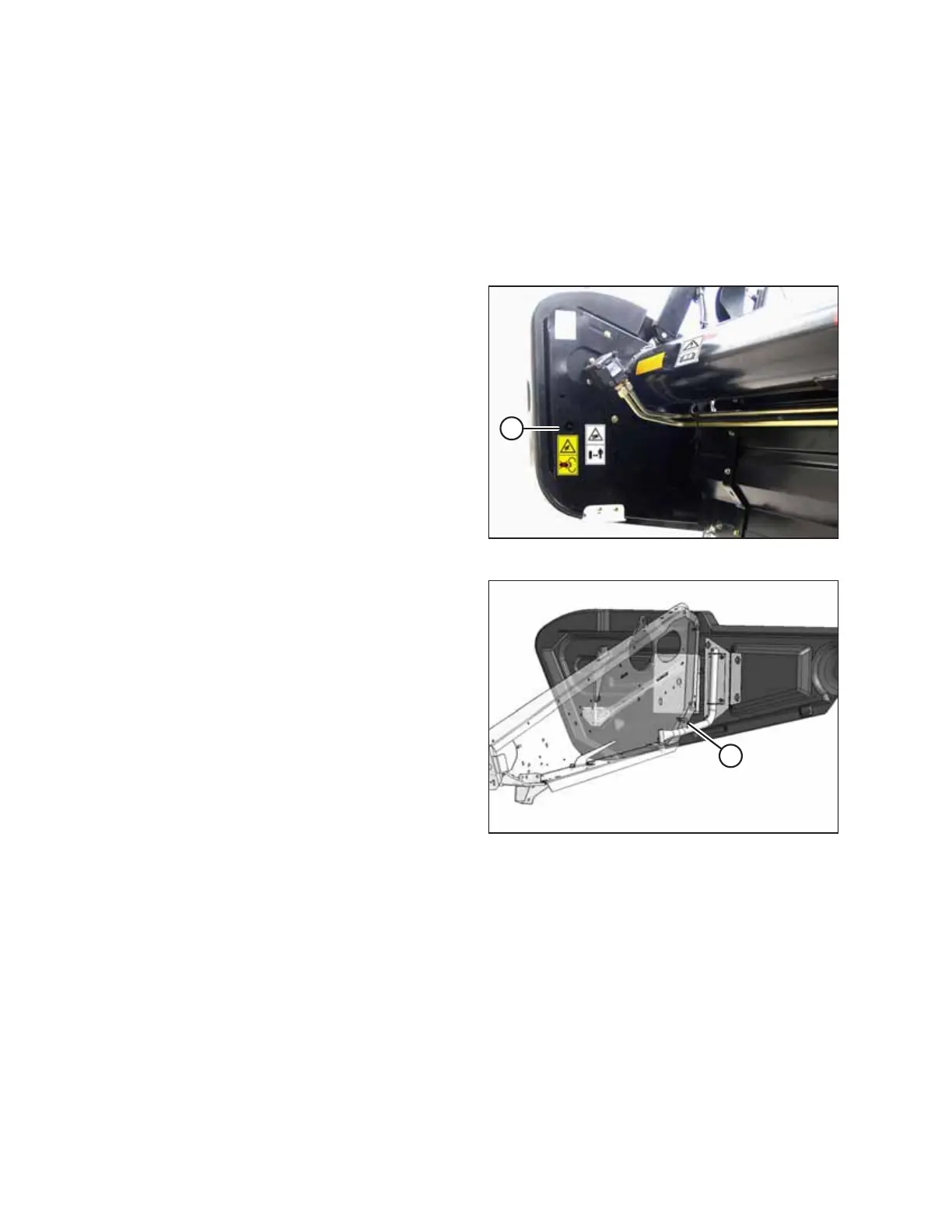

Figure 4.3: Inboard Side of Left Endsheet
1. To open a hinged header endshield, press against the latch
in the opening at location (A) on the inboard side of the
endsheet.
ϭϬϯϵϵϰϵ
A
Figure 4.4: Open Endshield
2. Pull the endshield away from the header, and swing it out
and back behind the endsheet until latch (A) engages the
hook on the endsheet.
