3.16 Draper Deflectors
D60 single-knife headers are equipped with rubber deflectors that are attached to the inboard side of the endsheets to
prevent material from falling through the gap between the endsheet and the draper.
In some cases, material hesitates on the deflectors and will not flow onto the draper. If this happens, replace the existing
deflector with a narrower one or rework the existing deflector.
3.16.1 Replacing Draper Deflector
To replace a draper deflector, follow these steps:
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
1. Raise the reel fully.
2. Lower the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the reel safety props. For instructions, refer to 3.10.1 Engaging Reel Safety Props, page 36.
1004226
A
B

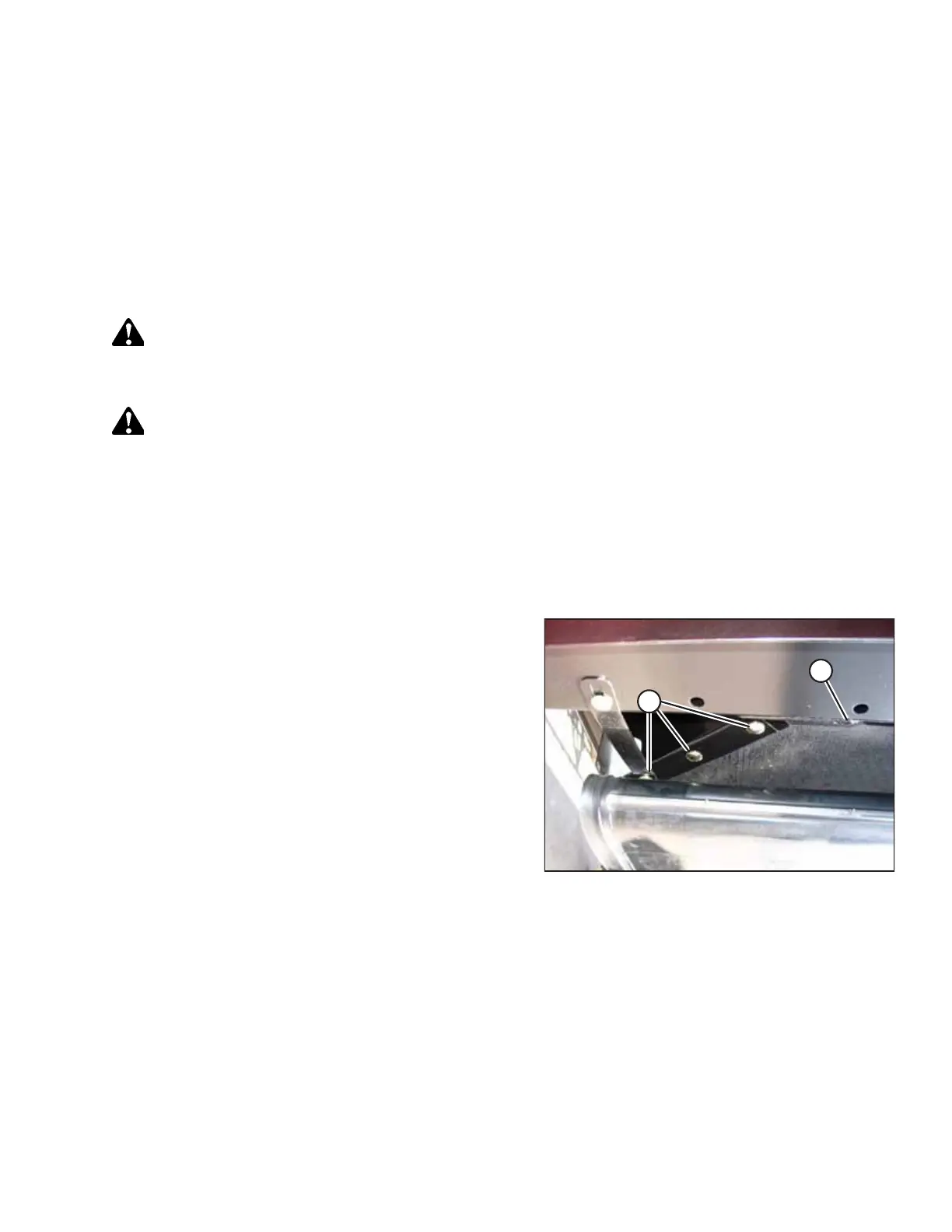

Figure 3.81: Carriage Bolts
5. Remove three screws (A) securing the aft end of existing
deflector (B) to the frame behind the backsheet.
