4.11.2 Checking Axle Bolt Torque
The hardware that secures the optional transport system components to the header must be checked daily to ensure safe
operation.
C
AA
B
1001276

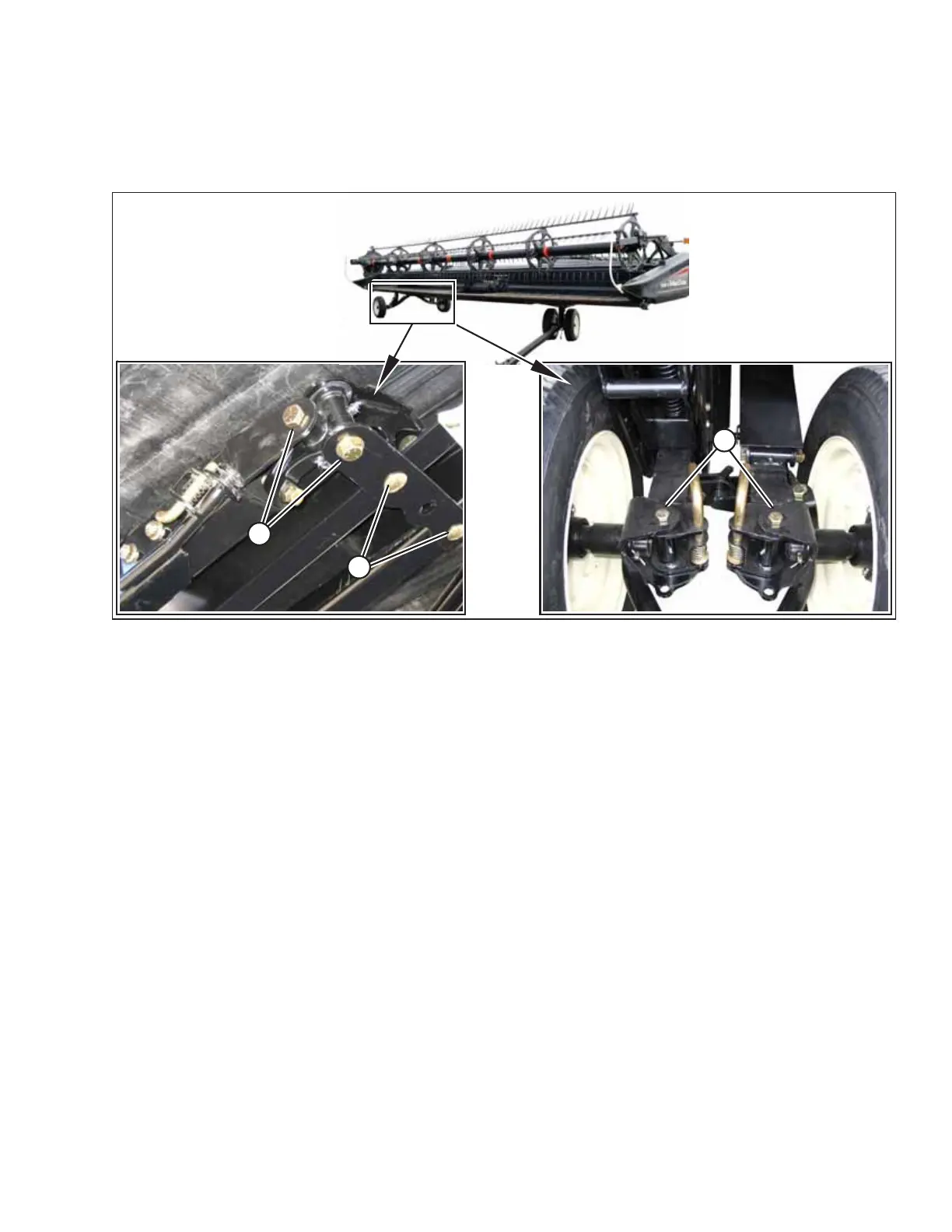

Figure 4.239: Axle Bolts
1. Check and tighten axle bolts DAILY until the torque is maintained as follows:
• (A): 244 Nm (180 lbf·ft)
• (B): 203 Nm (150 lbf·ft)
• (C): 244 Nm (180 lbf·ft)
