6. Turn latch pin (A) clockwise to engage and lock the
cam disc.
7. Repeat Steps 4, page 67 to 6, page 68 for the opposite reel.
IMPORTANT:
Ensure the cam is secured into position before operating
the machine.
3.12.11 Crop Dividers
Crop dividers are used to help divide the crop when harvesting. They are removable to allow installation of vertical knives
and to decrease transport width.
Removing Crop Dividers with Latch Option from Header – D60
To correctly remove crop dividers with the latch option, follow the recommended removal procedure provided here.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine,
remove the key, and engage the safety props before going under the header for any reason.
1. Lower the reel.
2. Raise the header fully.
3. Shut down the engine, and remove the key from the ignition.
4. Engage the header safety props. For instructions, refer to your windrower operator’s manual.
5. Open or remove the endshields. For instructions, refer to 4.3 Endshields, page 116.

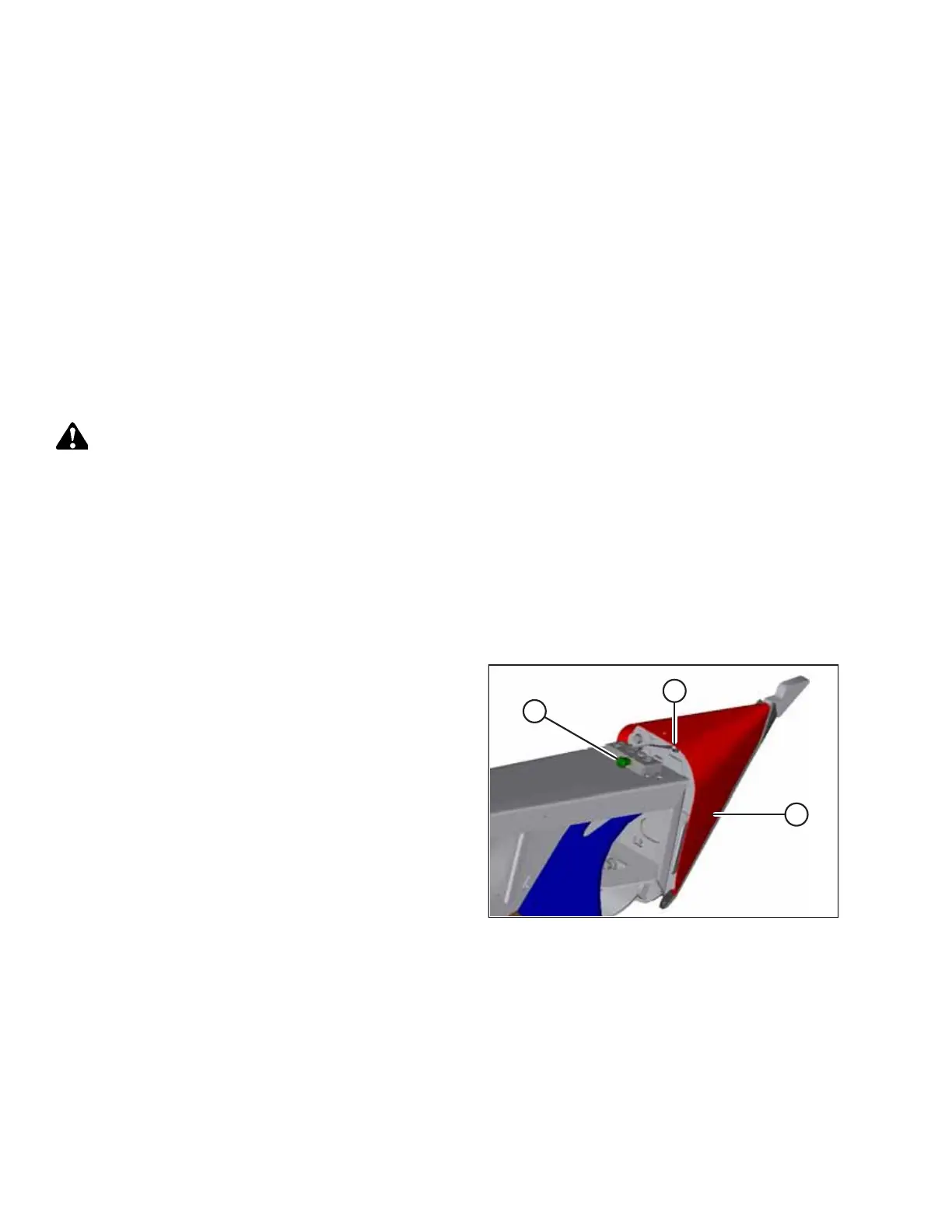

Figure 3.63: Crop Divider
6. Lift safety lever (A).
7. Hold onto crop divider (B), push lever (C) to open the latch,
and lower the crop divider.
