169441 219 Revision D
Installing Reel Drive Sprocket – D60
The reel drive sprocket is attached to the reel drive motor.

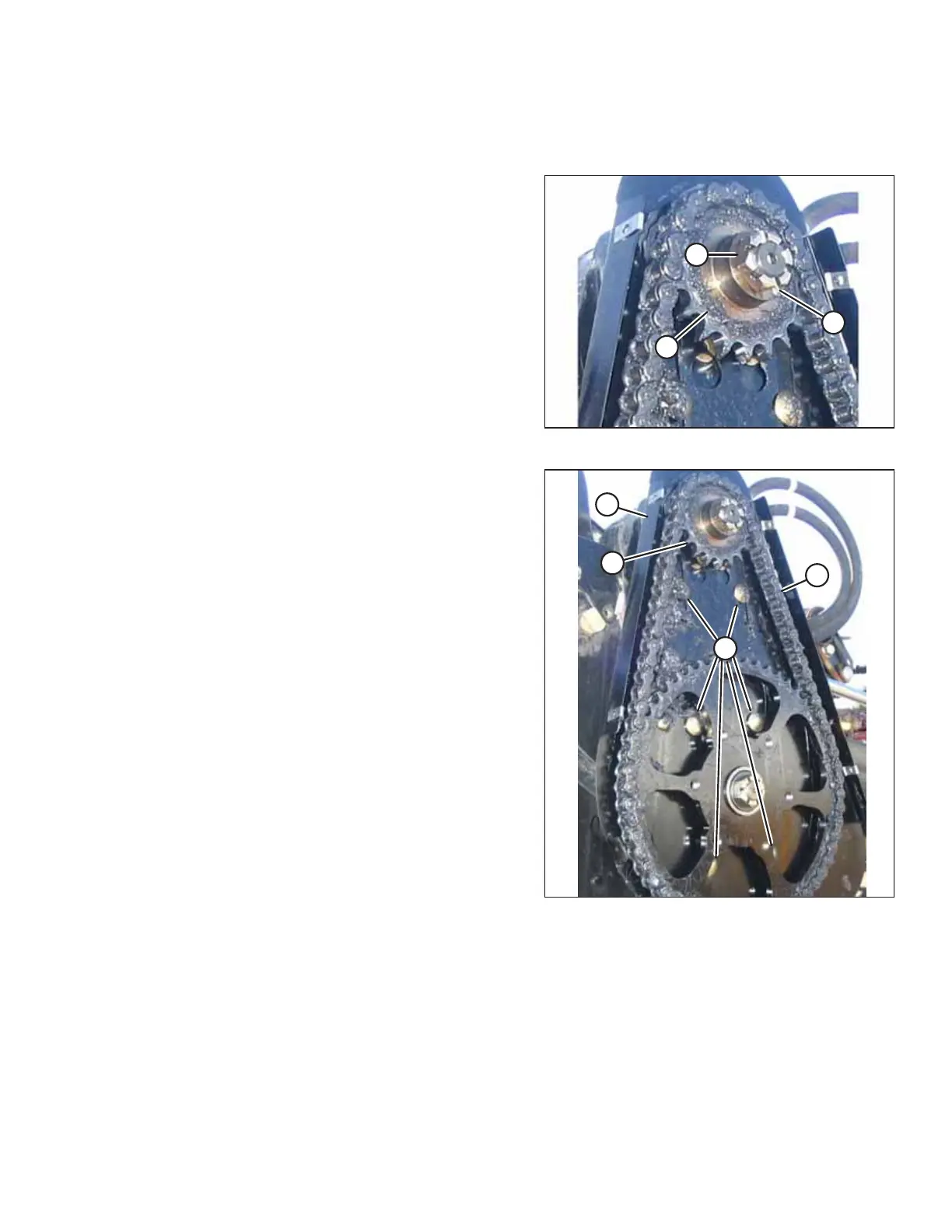

Figure 4.197: D60 Reel Drive
1. Align the keyway in sprocket (C) with the key on the motor
shaft, and slide the sprocket onto the shaft.
2. Install slotted nut (B), and torque to 1.7 Nm (15 lbf∙in).
3. Install cotter pin (A). If necessary, tighten slotted nut (B) to
the next slot to install the cotter pin.
Figure 4.198: D60 Reel Drive
4. Install drive chain (C) onto drive sprocket (D).
5. Slide the motor and motor mount (B) up until the tension
on the chain is such that hand force deflects the chain
3 mm (1/8 in.) at mid-span.
6. Tighten six bolts (A), and recheck the chain tension.
7. Reinstall the drive cover. For instructions, refer to Installing
Reel Drive Cover, page 204.
Replacing Double-Reel U-Joint
The double-reel drive U-joint allows each reel to move independently from the other.
Lubricate the U-joint according to specifications. For instructions, refer to 4.4 Lubrication, page 128.
Replace the U-joint if it is severely worn or damaged. For instructions, refer to Removing Double-Reel U-Joint, page 220.
MAINTENANCE AND SERVICING
