MacDon D50 - D60 Double-Reel Header

169441 137 Revision D
4.5.3 D60 Double-Reel Header
This schematic can be used to troubleshoot hydraulic problems on your D60 double-reel header.
ϭϬϰϬϮϮϵ
A
B
C
D
E
F
G
H
J
K
L
M

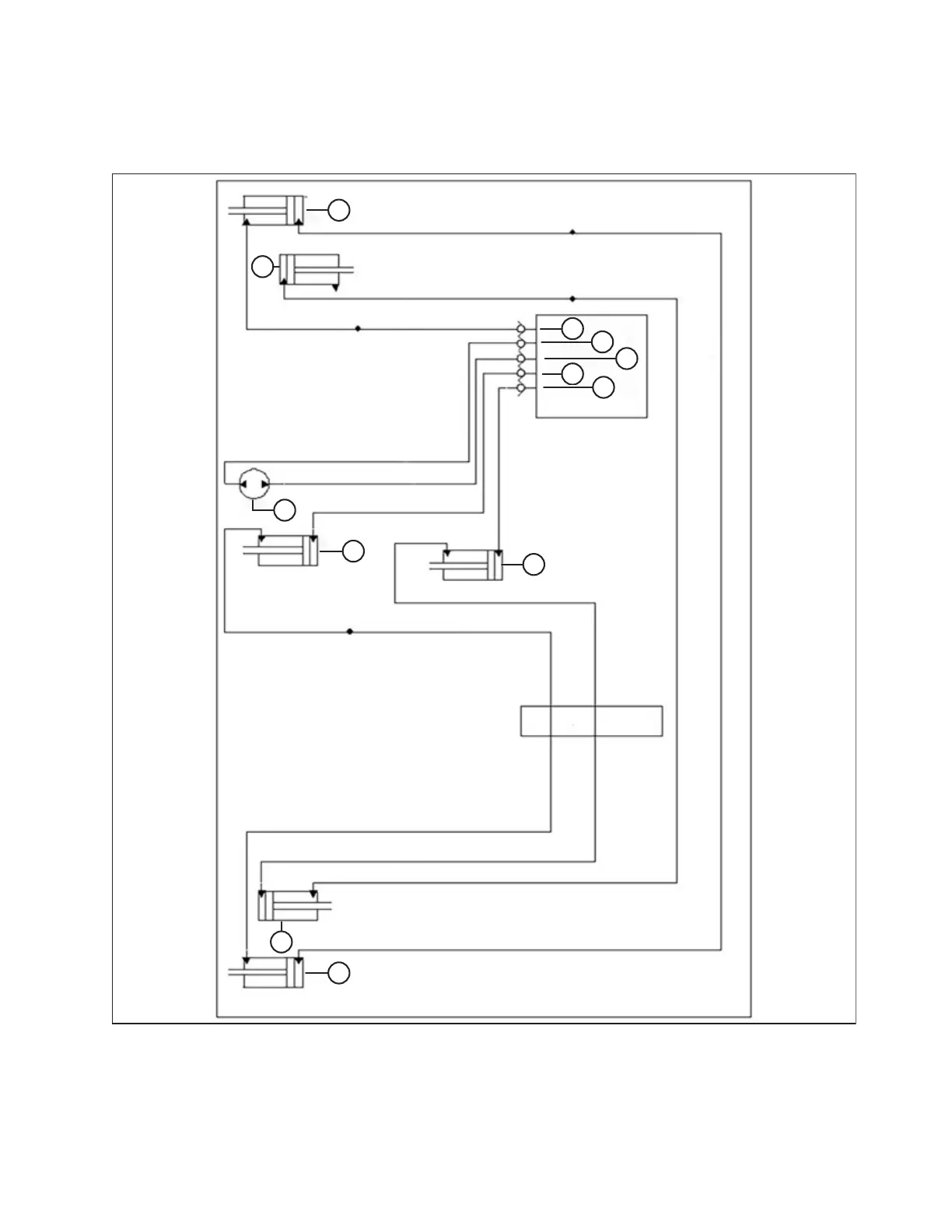

Figure 4.40: Hydraulic Schematic for a D60 Double-Reel Header
A - Right Fore-Aft Cylinder B - Right Lift Cylinder C - Reel Motor
D - Center Fore-Aft Cylinder E - Center Lift Cylinder F - Left Lift Cylinder
G - Left Fore-Aft Cylinder H - Fore Coupler J - Return Coupler
K - Pressure Coupler L - Aft Coupler M - Lift Coupler
MAINTENANCE AND SERVICING
