MacDon D50 - Replacing Drive Chain on Single Reel

169441 207 Revision D
ϭϬϰϬϭϯϮ
A
B
C

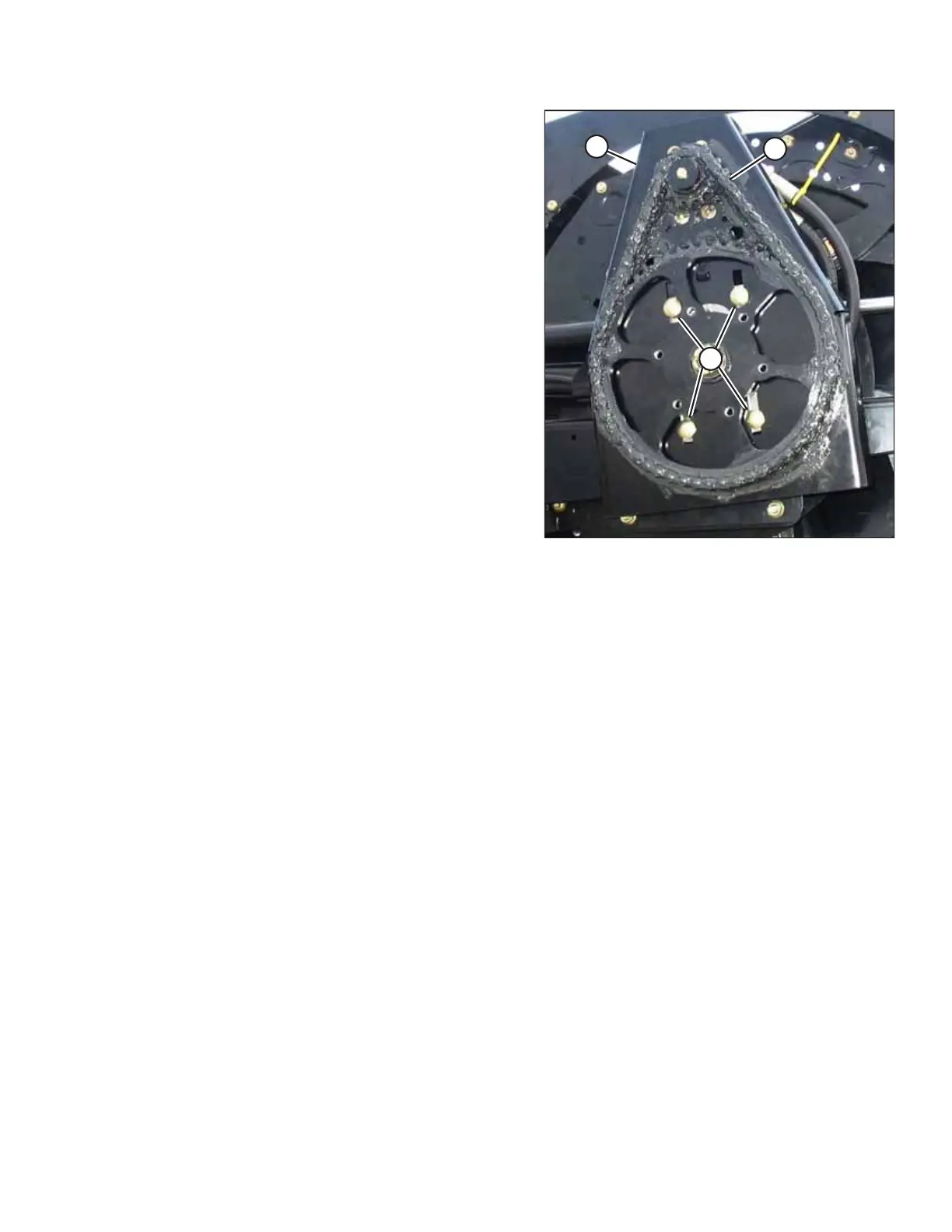

Figure 4.176: D50 Reel Drive – Single Reel
4. D50: Tension on chain (A) should be such that hand force
deflects chain 3 mm (1/8 in.) at mid-span. Adjust as follows:
a. Loosen four bolts (B) on motor mount (C).
b. Slide the motor and motor mount (C) until the required
tension is achieved.
c. Tighten bolts (B) to 102 Nm (75 lbf·ft).
5. Reinstall the reel drive cover. For instructions, refer to
Installing Reel Drive Cover, page 204.
Replacing Drive Chain on Single Reel
The drive chain allows the hydraulic reel drive motor to turn the reel. It can be replaced if damaged or worn.
1. Remove the reel drive cover. For instructions, refer to Removing Reel Drive Cover, page 202.
MAINTENANCE AND SERVICING
