169441 250 Revision D
5.3 Header Kits
Header options add features or enhancements to the header frame rather than a specific system or function.
5.3.1 Stabilizer Wheels
Stabilizer wheels help to stabilize the header in field conditions that would otherwise cause the header to bounce, resulting
in uneven cutting heights.
1001156

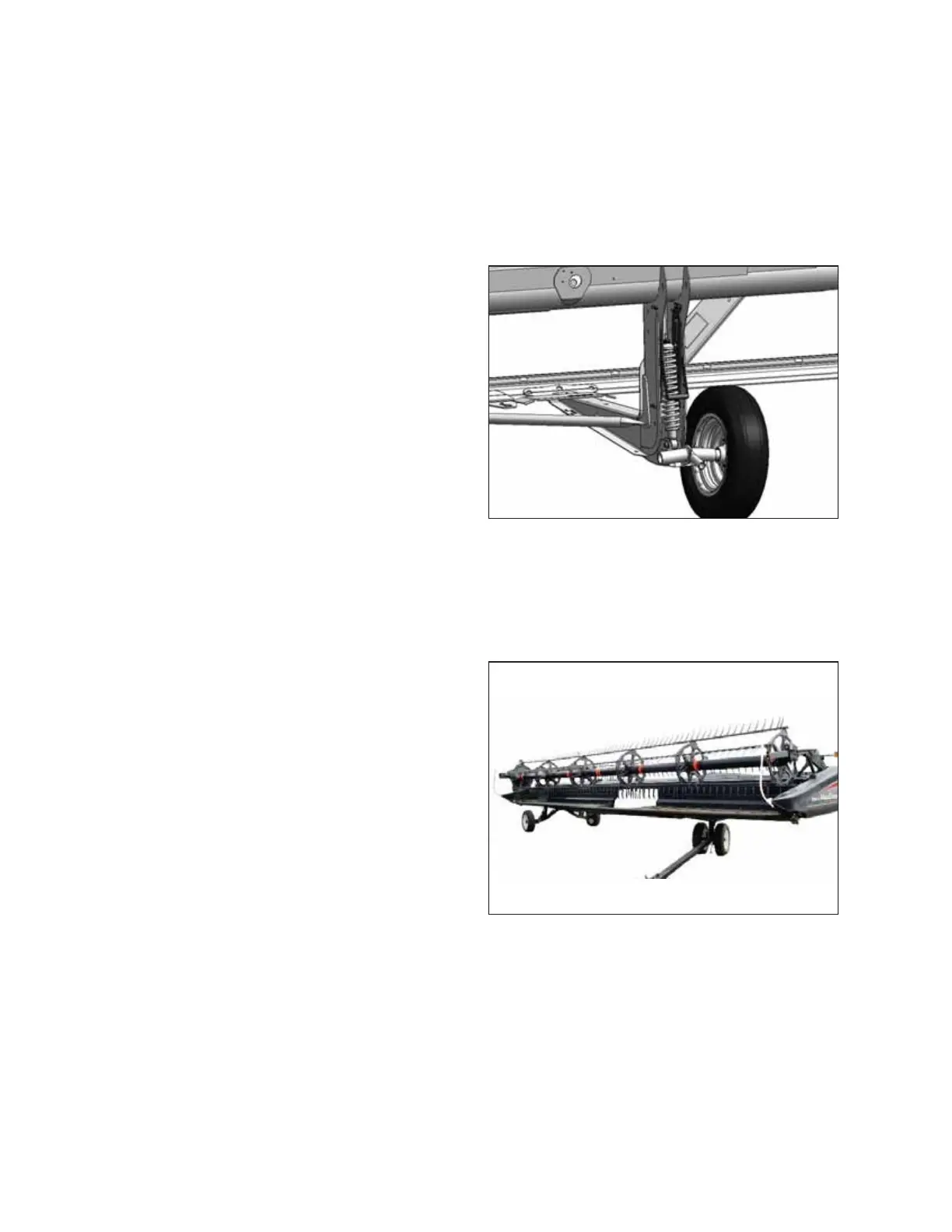

Figure 5.9: Stabilizer Wheel
Installation and adjustment instructions are included in the kit.
This kit is available as an attachment for use with 9.1, 10.7, and
12.2 m (30, 35, and 40 ft.) headers.
MD #C1986
5.3.2 Stabilizer / Slow Speed Transport Wheels
Stabilizer/slow speed transport wheels help to stabilize the header in field conditions that would otherwise cause the
header to bounce, resulting in uneven cutting heights.
1010048
Figure 5.10: Stabilizer/Transport Wheels
This system is similar to the Stabilizer Wheel option. For more
information about that option, refer to 5.3.1 Stabilizer Wheels,
page 250.
Stabilizer/slow speed transport wheels are used to convert the
header into transport mode for slow-speed towing behind a
properly configured windrower (or agricultural tractor). A tow
pole and installation instructions are included in the kit.
This option is available for use with 9.1, 10.7, and 12.2 m (30,
35, and 40 ft.) headers.
MD #C1988 (Europe) and MD #C1983 (everywhere else)
