WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
1. Start the engine.
2. Raise the reel fully.
3. Raise the header fully.
4. Turn the draper roller until the draper joint is in the work area.
NOTE:
The decks on the header can also be shifted towards the center to provide an opening at the endsheets.
5. Shut down the engine, and remove the key from the ignition.
6. Engage the header safety props.
7. Engage the reel safety props. For instructions, refer to 3.10.1 Engaging Reel Safety Props, page 36.
8. Release the tension on the draper. For instructions, refer to 4.9.1 Adjusting Draper Tension, page 181.

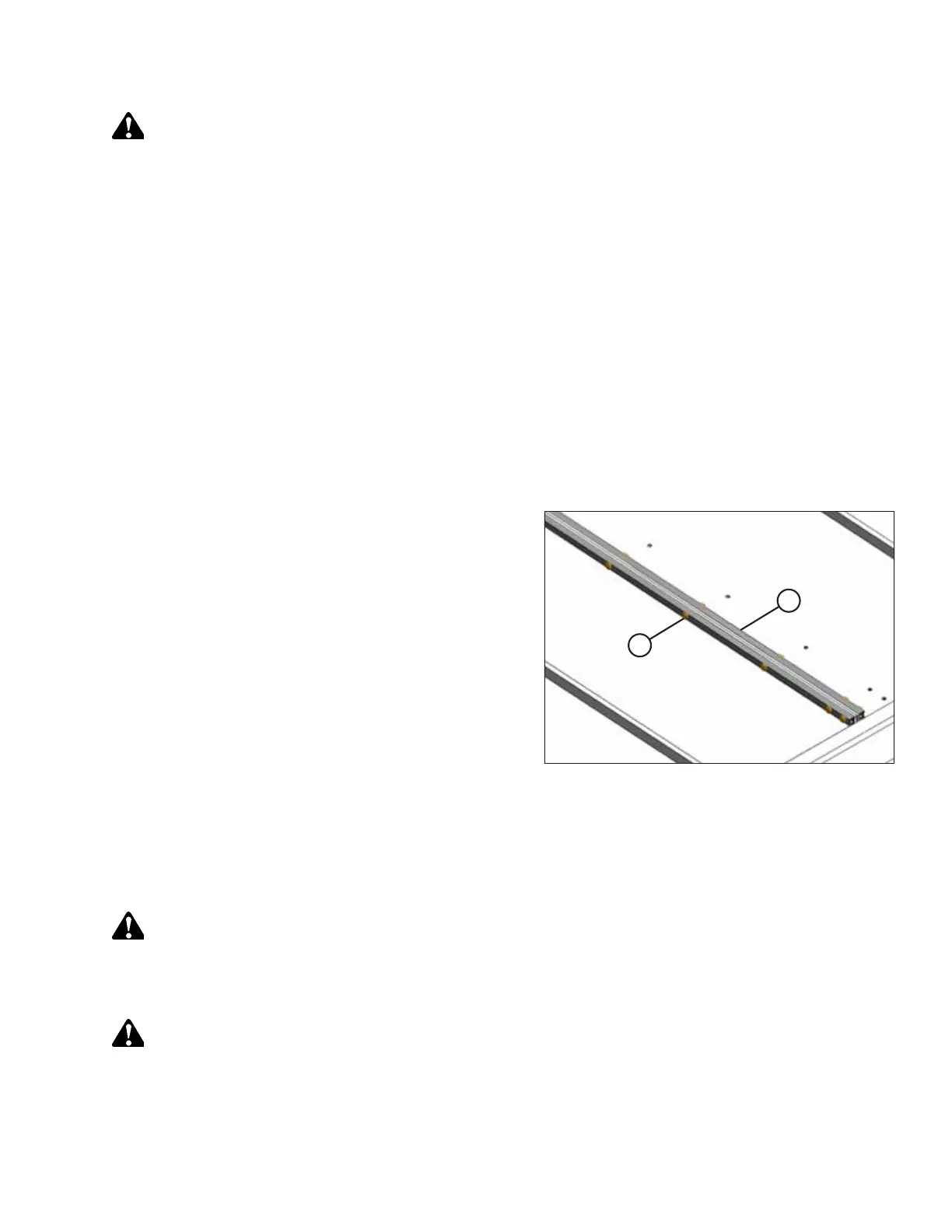

Figure 4.128: Draper Joint
9. Remove screws (A) and tube connectors (B) at the
draper joint.
10. Pull the draper from the deck.
4.9.3 Installing Split Drapers
Drapers are used to bring cut crop to the center of the header. To ensure they are installed correctly, follow the
recommended installation procedure provided here.
DANGER
To prevent bodily injury or death from the unexpected start-up or fall of a raised machine, always stop the engine and
remove the key before leaving the operator’s seat, and always engage the safety props before going under the
machine for any reason.
WARNING
To prevent bodily injury from the fall of a raised reel, always engage the reel safety props before going under the
raised reel for any reason.
MAINTENANCE AND SERVICING
