MacDon D50 - Removing Non-Hinged Endshields; Installing Non-Hinged Endshields

169441 124 Revision D
4.3.6 Removing Non-Hinged Endshields
The non-hinged header endshields cover components. To access the components, you will need to remove the endshields.
ϭϬϯϵϵϰϴ
A

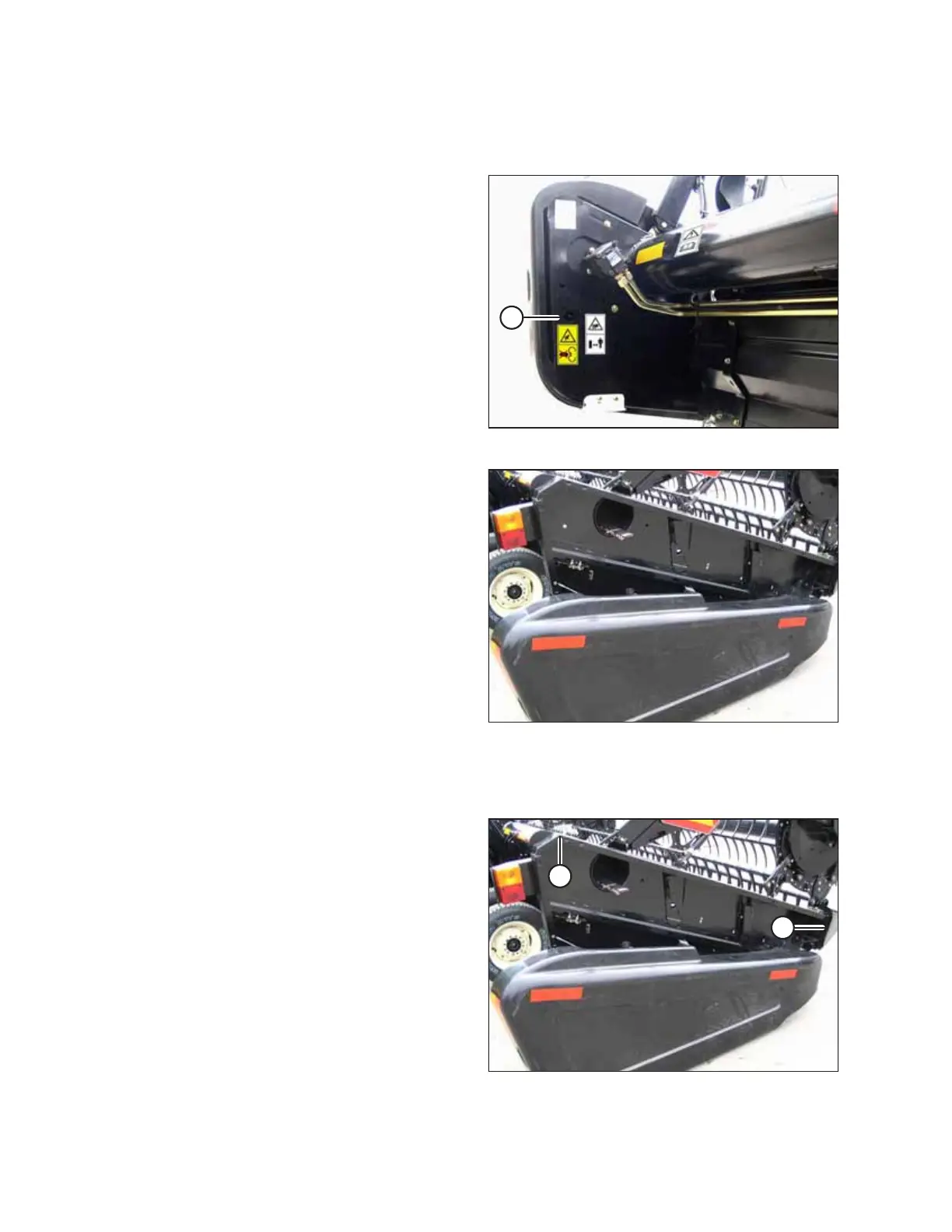

Figure 4.20: Inboard Side of Endsheet
1. To open the endshield, press against the latch in the
opening at location (A) on the inboard side of the endsheet.
ϭϬϯϵϵϱϴ
Figure 4.21: Endshield Removed
2. Lift the endshield up, then pull it out and back.
4.3.7 Installing Non-Hinged Endshields
ϭϬϯϵϵϱϵ
A
B
Figure 4.22: Endshield Removed
1. Position the forward end of the endshield in crop
divider (A), and then position the endshield over the
endsheet. Pin (B) at the top of the endsheet must engage
the endshield.
MAINTENANCE AND SERVICING
