MacDon D50 - Reel Speed Sensor

169441 224 Revision D
Reel Speed Sensor
The reel speed sensor system is located inside the reel drive cover.
Removing Reel Speed Sensor
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
1. Shut down the engine, and remove the key from the ignition.
ϭϬϰϬϭϬϯ
A
B
C

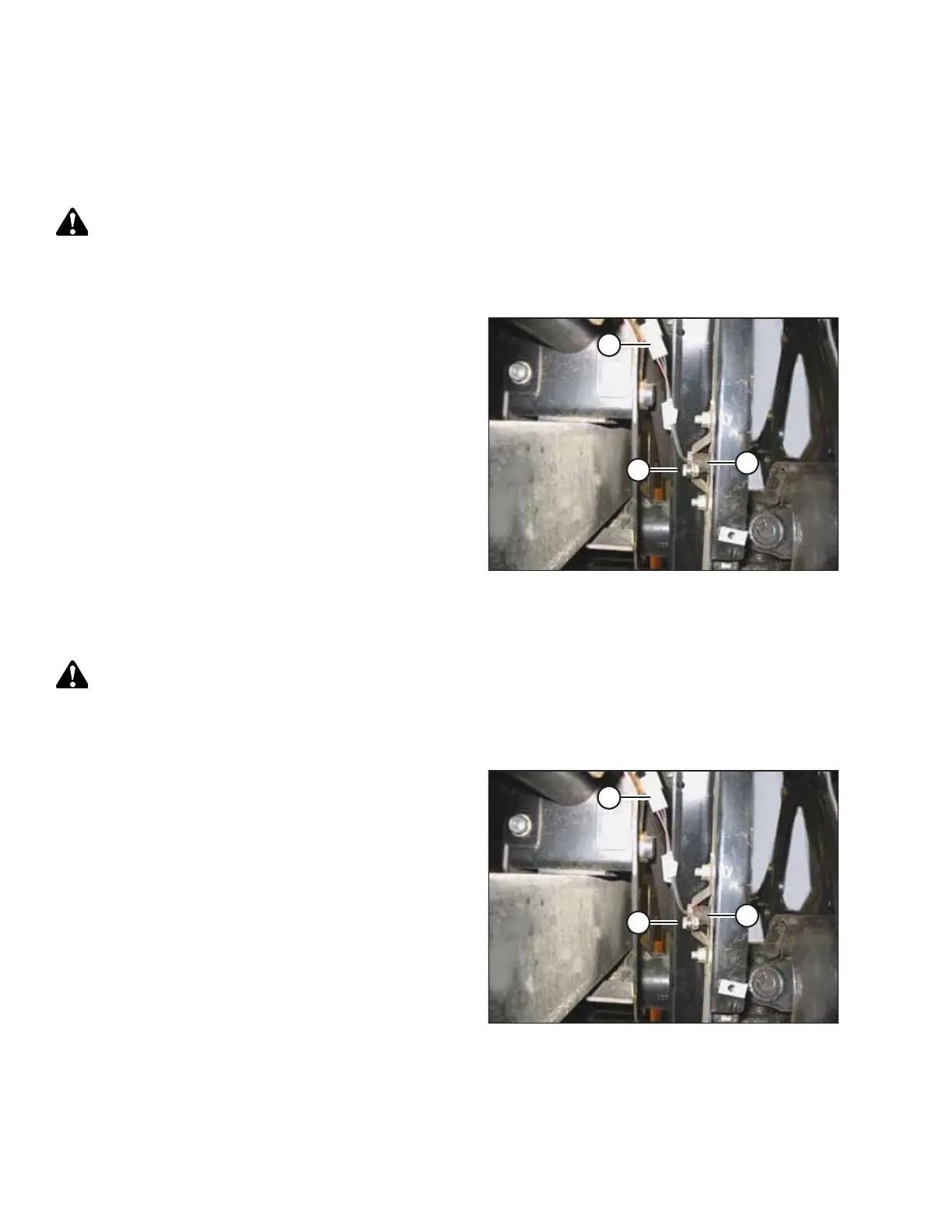

Figure 4.208: Reel Speed Sensor
2. Disconnect sender wire (A).
3. Remove nut and bolt (B) attaching the sender to the
support.
4. Remove sender (C).
Installing Reel Speed Sensor
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
1. Shut down the engine, and remove the key from the ignition.
ϭϬϰϬϭϬϯ
A
B
C
Figure 4.209: Reel Speed Sensor
2. Position sender (C) on the support, and secure in place with
nut and bolt (B).
3. Connect sender wire (A).
MAINTENANCE AND SERVICING
