MacDon D50 - Fore-Aft Position

169441 198 Revision D
ϭϬϯϵϴϯϲ
A

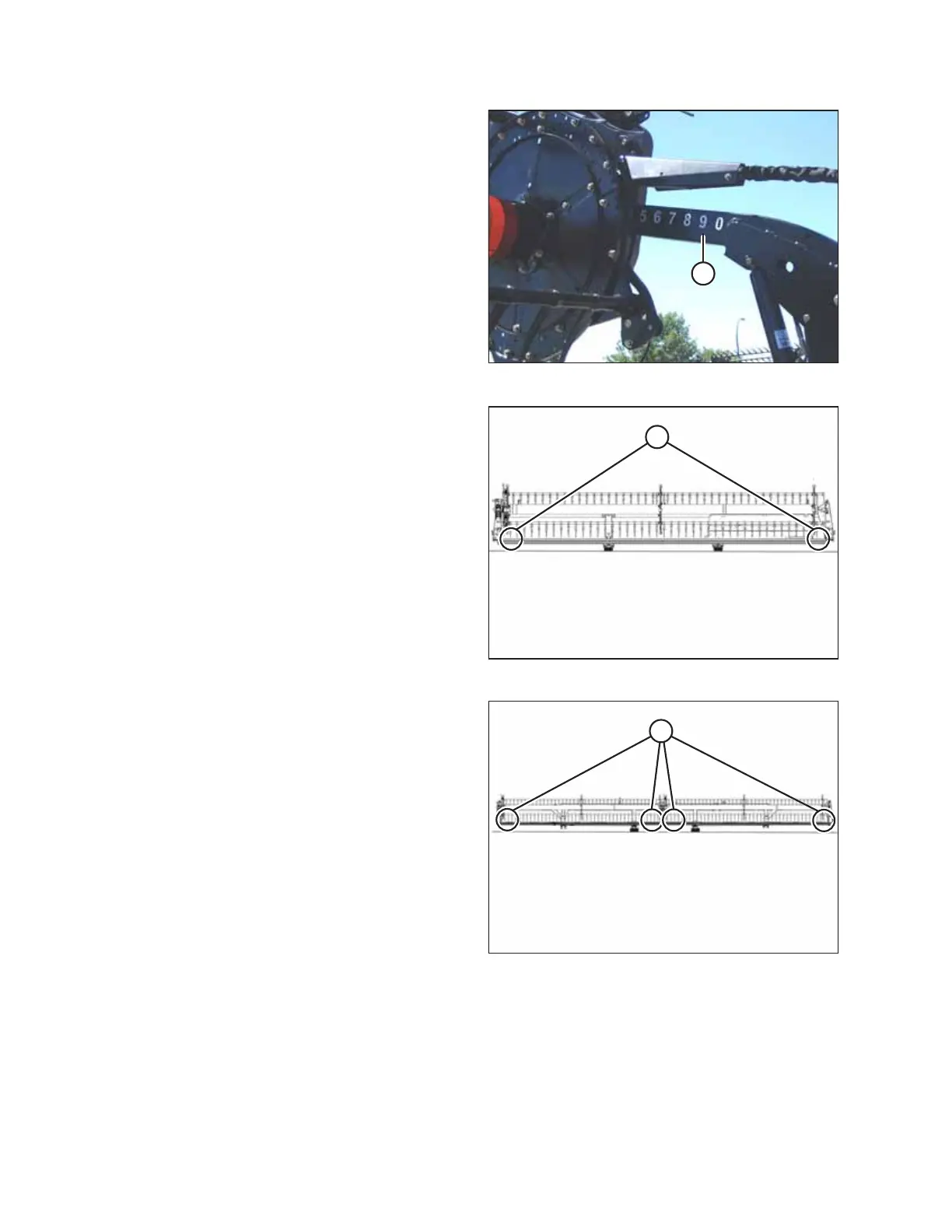

Figure 4.156: Fore-Aft Position
4. Adjust the fore-aft reel position so that the back end of the
cam disc is between the 4 and 5 on fore-aft position
indication decal (A).
5. Lower the reel fully.
6. Shut down the engine, and remove the key from
the ignition.
1001595
A
Figure 4.157: Single-Reel Header
7. Measure the clearance at the ends of each reel at
locations (A).
NOTE:
The reel is factory-set to provide more clearance at the
center of the reel than at the ends to compensate for reel
flexing.
1001596
A
Figure 4.158: Double-Reel Header
MAINTENANCE AND SERVICING
