MacDon D50 - Storing the Tow-Bar

169441 98 Revision D
Storing the Tow-Bar
1004715
A
B

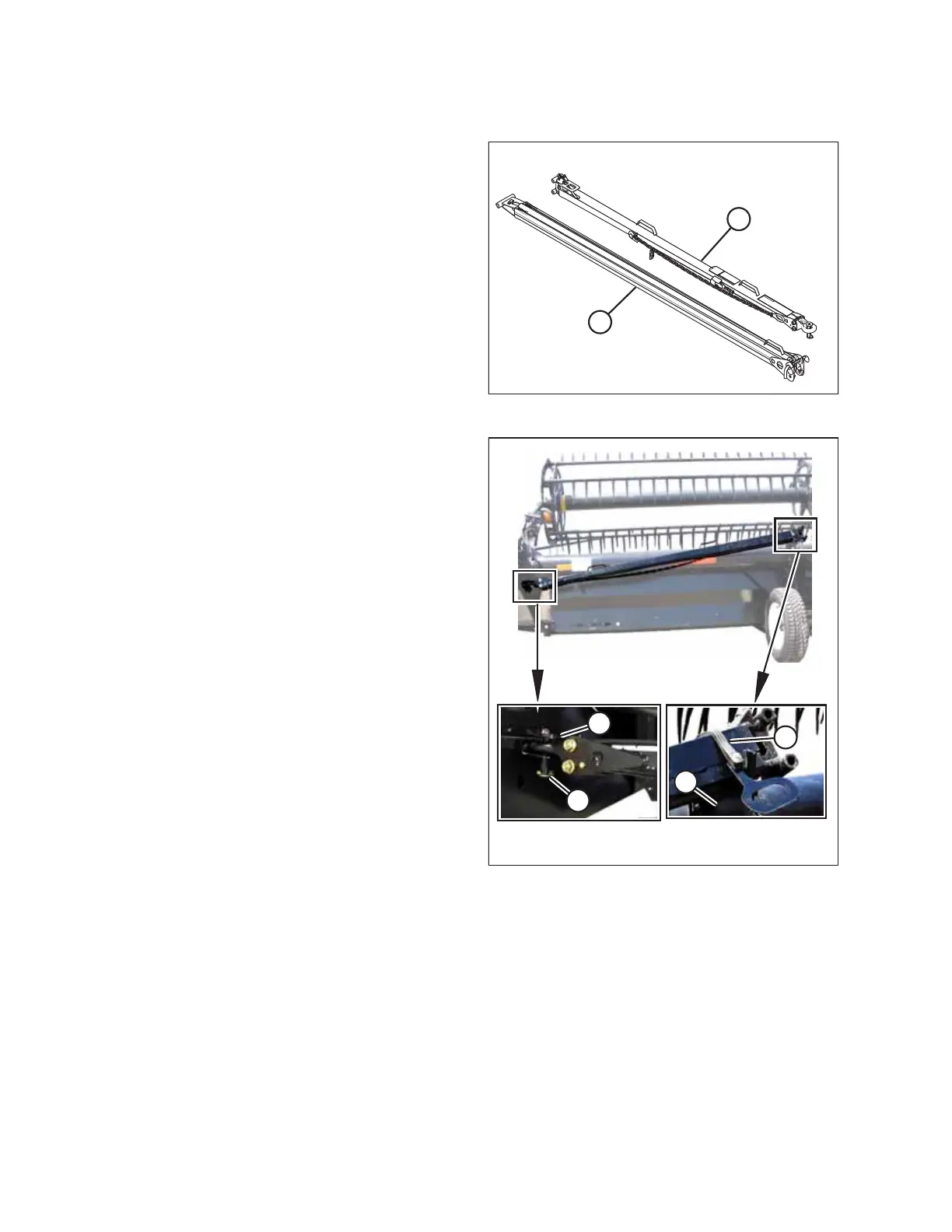

Figure 3.96: Tow-Bar Assembly
The tow-bar consists of two sections: inner half (A) and outer
half (B).
1004704
A
B
C
D
Figure 3.97: Tow-Bar Storage
1. On the left side of the header’s backtube, place the inner
end of the outer half of the tow-bar into cradle (A).
NOTE:
The exact appearance of the tow-bar storage cradle varies
according to the model of header.
2. Secure the clevis/pintle end of the tow-bar in support (B)
on the endsheet using hitch pin (C). Secure the pin with a
lynch pin.
3. Install rubber strap (D) on cradle (A).
OPERATION
