MacDon D50 - Page 114

169441 102 Revision D
1001635
D
C
B
A
E

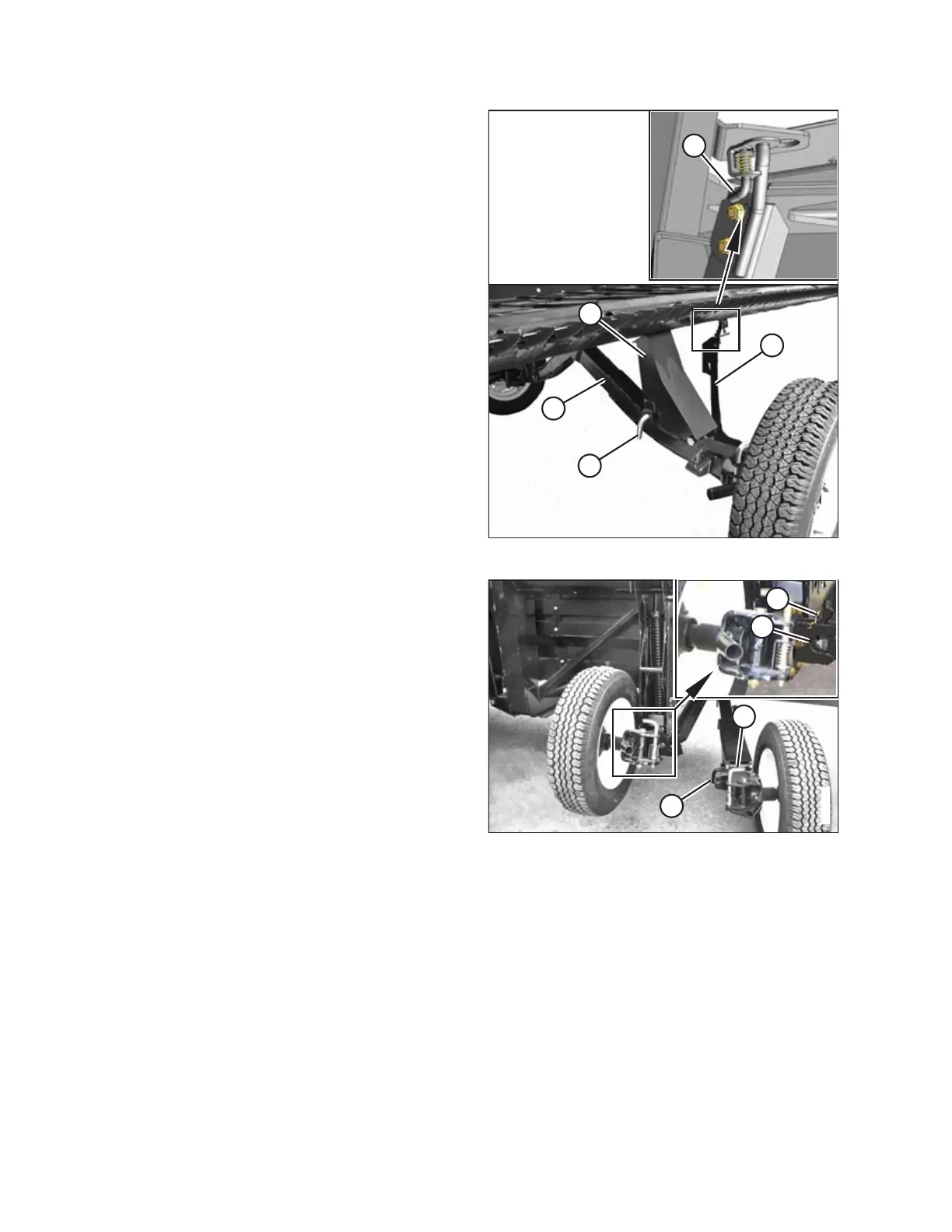

Figure 3.104: Right Rear Axle
6. Pull pin (A) on brace (B) on the left wheel in front of the
cutterbar. Disengage the brace from the cutterbar, and
lower the brace against axle (C).
7. Remove pin (D), lower support (E) onto the axle, and
reinsert the pin into the support.
8. Swing axle (C) clockwise towards the rear of the header.
1001636
B
C
D
A
Figure 3.105: Rear Axles
9. Pull up pin (A) on the right wheel. Swivel the wheel
counterclockwise to the position shown, and release pin (A)
to lock the wheel in place.
10. Remove hairpin (B) from latch (C).
11. Lift the wheel, lift latch (C), and engage lug (D) onto the left
axle. Ensure the latch closes.
12. Secure the latch with hairpin (B), ensuring the open end of
the pin faces the rear of the windrower.
NOTE:
The hairpin can become dislodged by crop if it is installed
with the open end facing the cutterbar.
IMPORTANT:
Check that wheels are locked and that handle is in locked
position.
OPERATION
