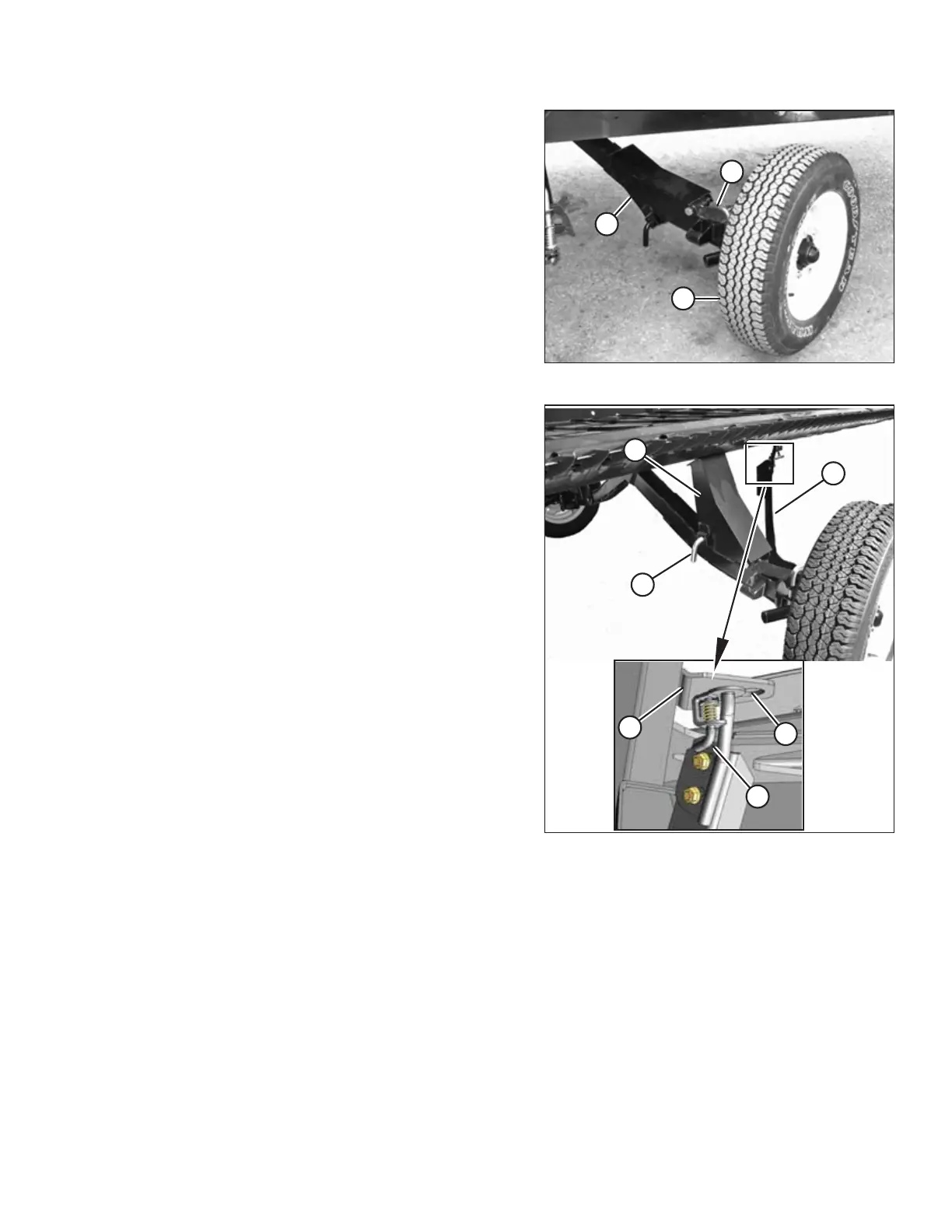

Figure 3.115: Right Rear Wheel
10. Lock wheel (A) with pin (B). Move right axle (C) to the front
of the header.
Figure 3.116: Right Rear Wheel Position
11. Remove pin (A), raise support (B) to the position shown,
and reinsert pin.
IMPORTANT:
Ensure pin (A) engages the tube on the axle.
12. Swing brace (C) into the position shown and insert the
brace into slot (D) behind the cutterbar. Position the brace
so that pin (E) engages the hole in bracket (F). The right
wheel is now in transport position.
13. Disengage the header safety props. For instructions, refer
to the the windrower operator’s manual.
14. Detach the header’s hydraulic and electrical connections
from the windrower. For instructions, refer to 3.3 Header
Attachment/Detachment, page 25.
15. Start the windrower and lower the header to the ground.
