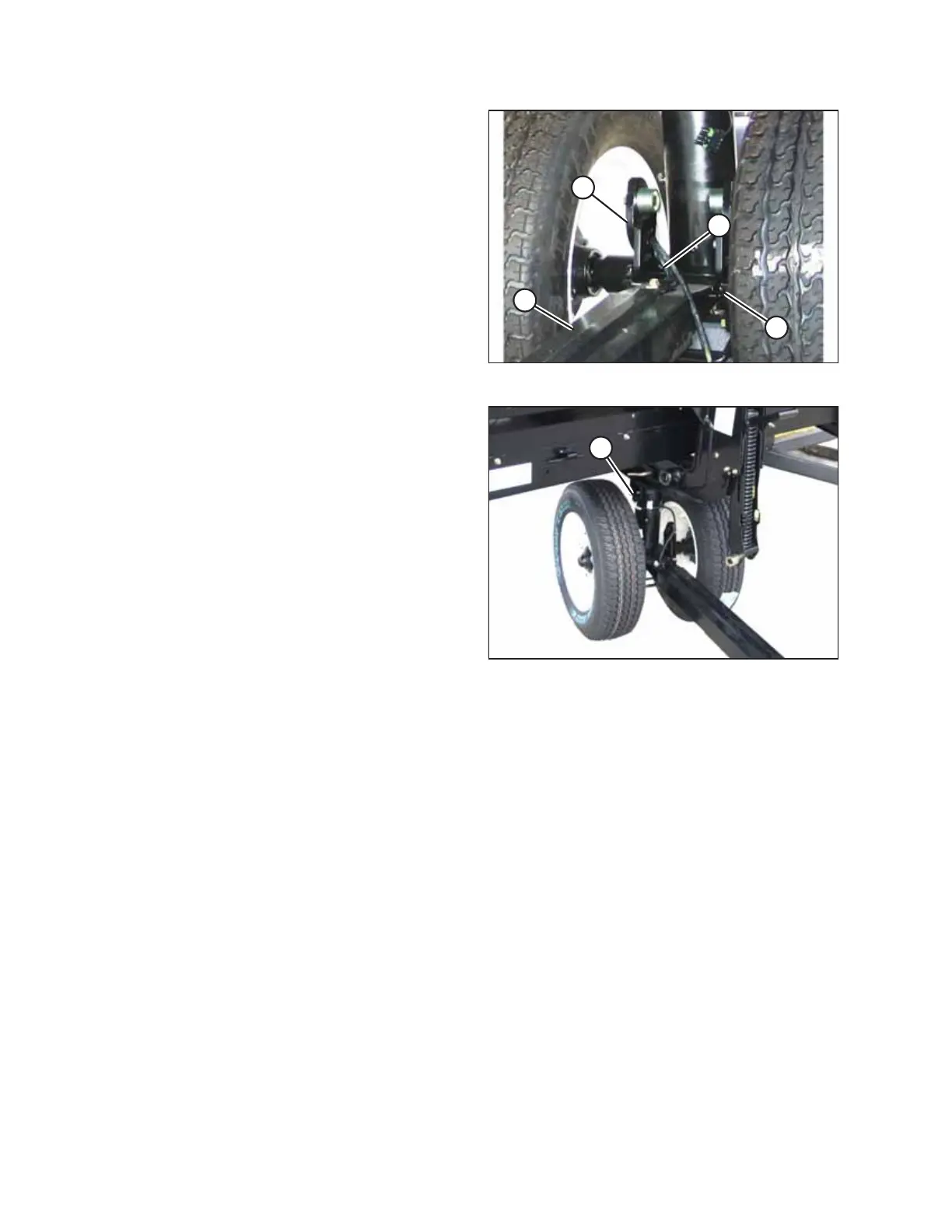

Figure 3.122: Attaching Tow-Bar
12. Position tow-bar (A) onto the axle, and push against
latch (B) until the tow-bar pins drop into hooks (C).
13. Check that latch (B) has engaged the tow-bar.
14. Install clevis pin (D) and secure with hairpin.
Figure 3.123: Harness Connection
15. Connect electrical harness (A) at the front wheel.
