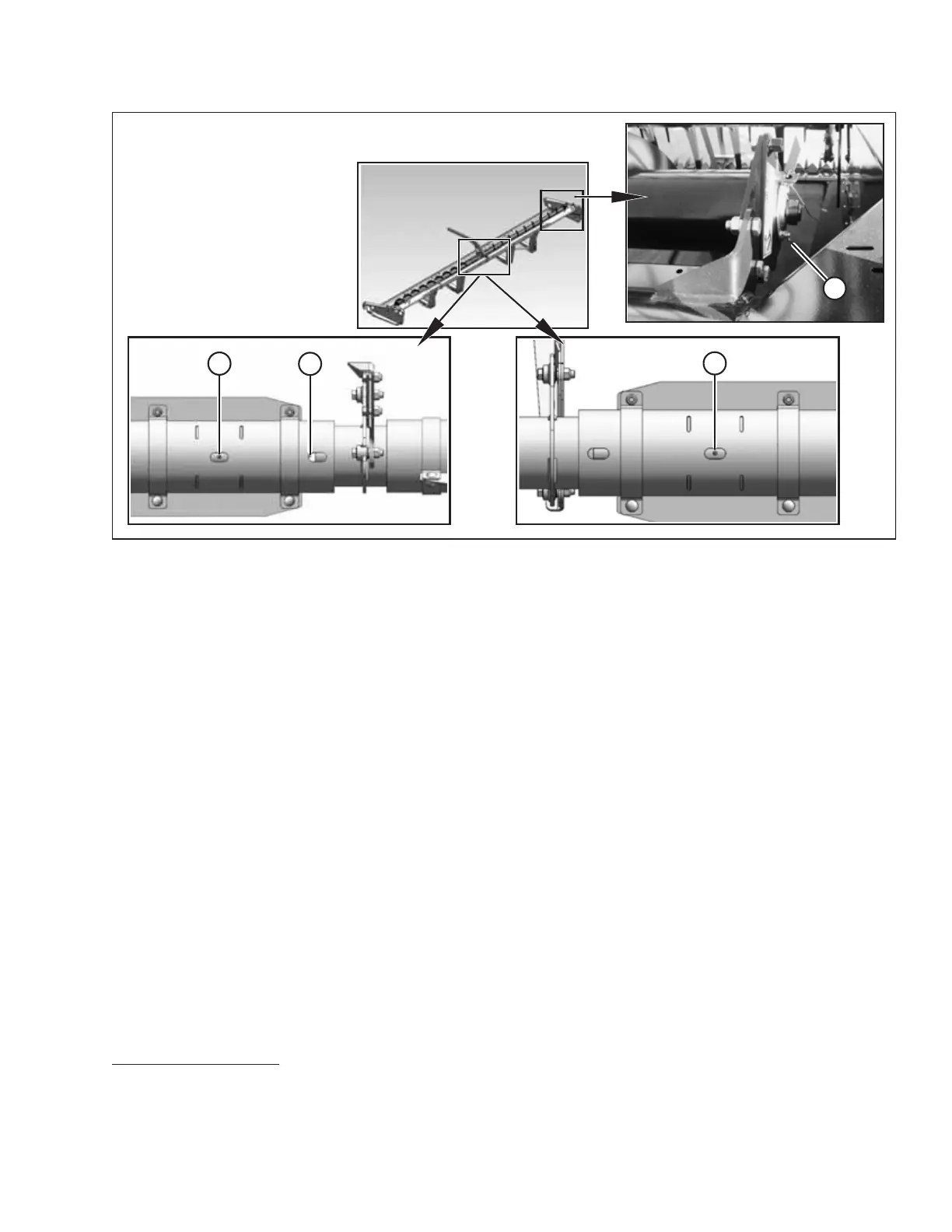

Figure 4.34: Every 50 Hours – Upper Cross Auger, Old Assembly
A - Upper Cross Auger U-joint
1
B - Upper Cross Auger Bearing (2 Places)
C - Right End Bearing
MAINTENANCE AND SERVICING
1. The U-joint has a cross and bearing kit with an extended lubrication interval. Stop greasing when greasing becomes
difficult or if the U-joint stops taking grease. Overgreasing will damage the U-joint. Six to eight pumps are sufficient at
first grease (factory). Decrease the grease interval (i.e., grease more often) as the U-joint wears and requires more
than six pumps.
