169441 168 Revision D

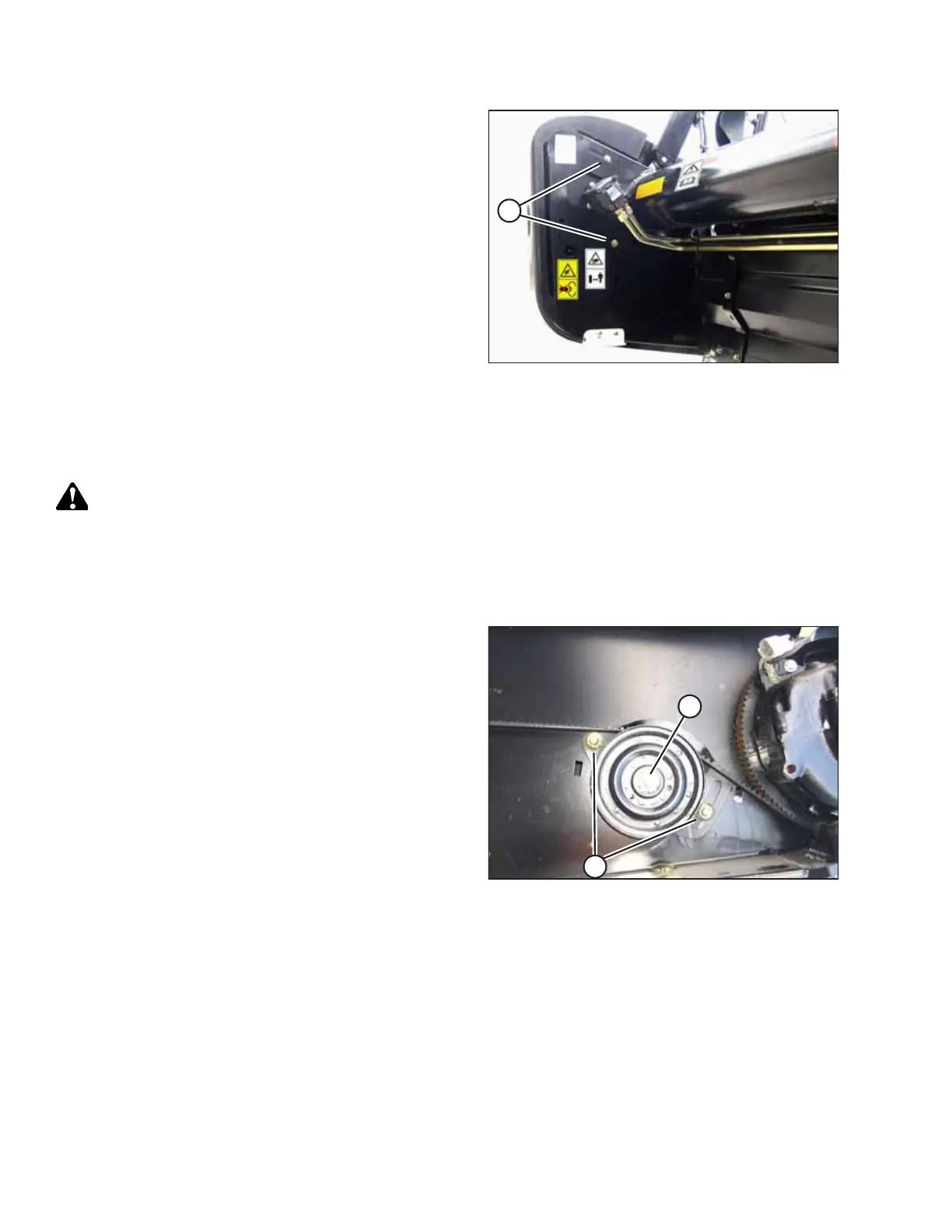

Figure 4.97: Inboard Side of Endsheet
6. Tighten two bolts (A) on the endsheet.
7. Close the endshield. For instructions, refer to 4.3.2 Closing
Hinged Endshields, page 117.
8. Check the tension of the new V-belts after a short run-in
period (about five hours).
Removing Timed Knife Drive Belt – Right Side
The timed knife drive belt removal procedure is the same for both sides of the header.
DANGER
To prevent bodily injury or death from the unexpected start-up of the machine, always stop the engine and remove the
key from the ignition before making adjustments to the machine.
1. Shut down the engine, and remove the key from the ignition.
2. Open the endshield. For instructions, refer to 4.3.1 Opening Hinged Endshield, page 116.
Figure 4.98: Right Knife Drive
3. Loosen two nuts (A) on the belt idler bracket to relieve the
belt tension.
4. Loosen nut (B) on the idler pulley and slide the idler
downward to loosen the belt.
MAINTENANCE AND SERVICING
