169441 237 Revision D

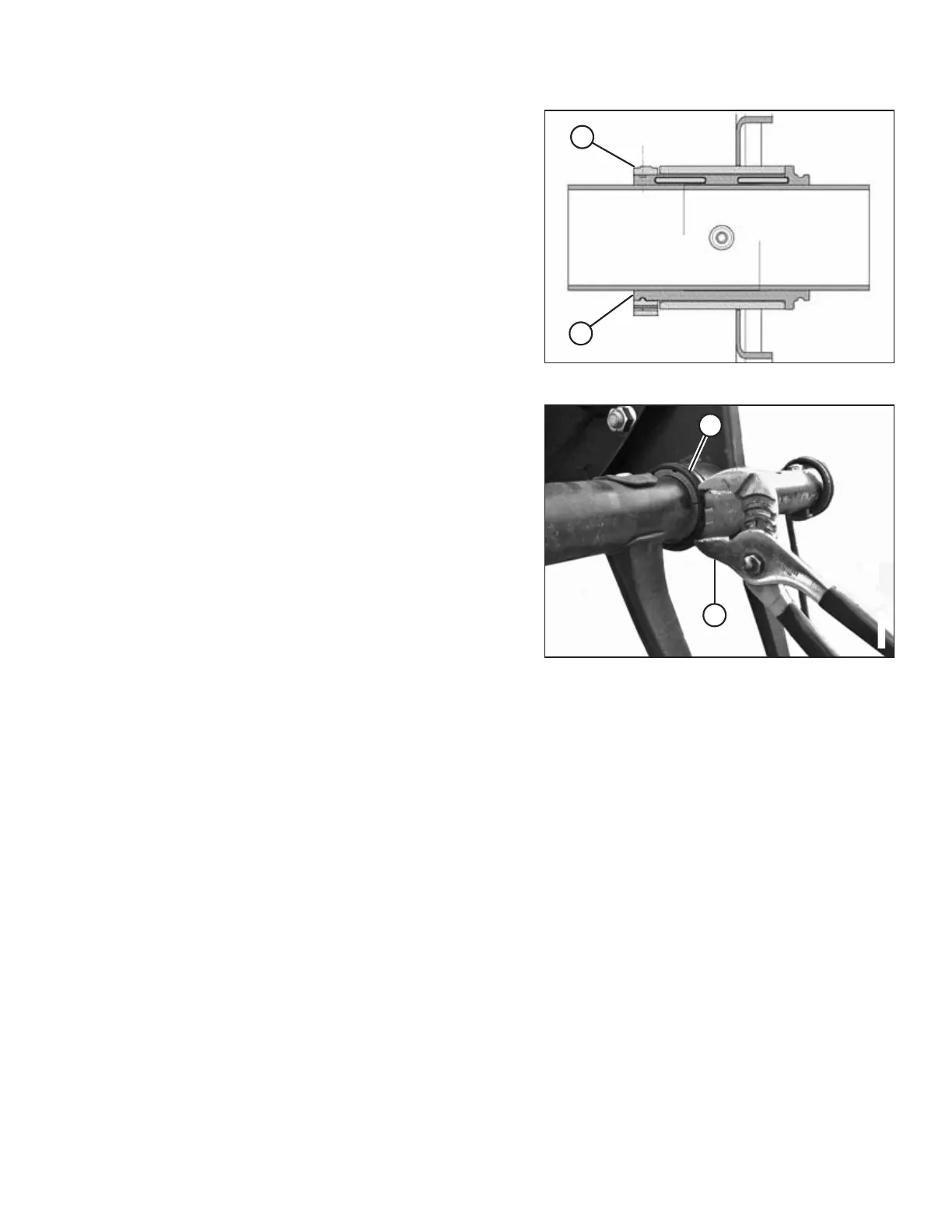

Figure 4.236: Bushing
8. Spread bushing clamp (A) and slip it over the tine tube
adjacent to the flangeless end of bushing (B). Position the
clamp such that the edges of the clamp and bushing are
flush when the clamp is fit into the groove on the bushing
and the lock tabs are engaged.
Figure 4.237: Clamp on Bushing
9. Tighten clamp (A) using modified channel lock pliers (B)
until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening the clamp might break the clamp.
MAINTENANCE AND SERVICING
