169441 28 Revision D
Disconnecting reel hydraulics:

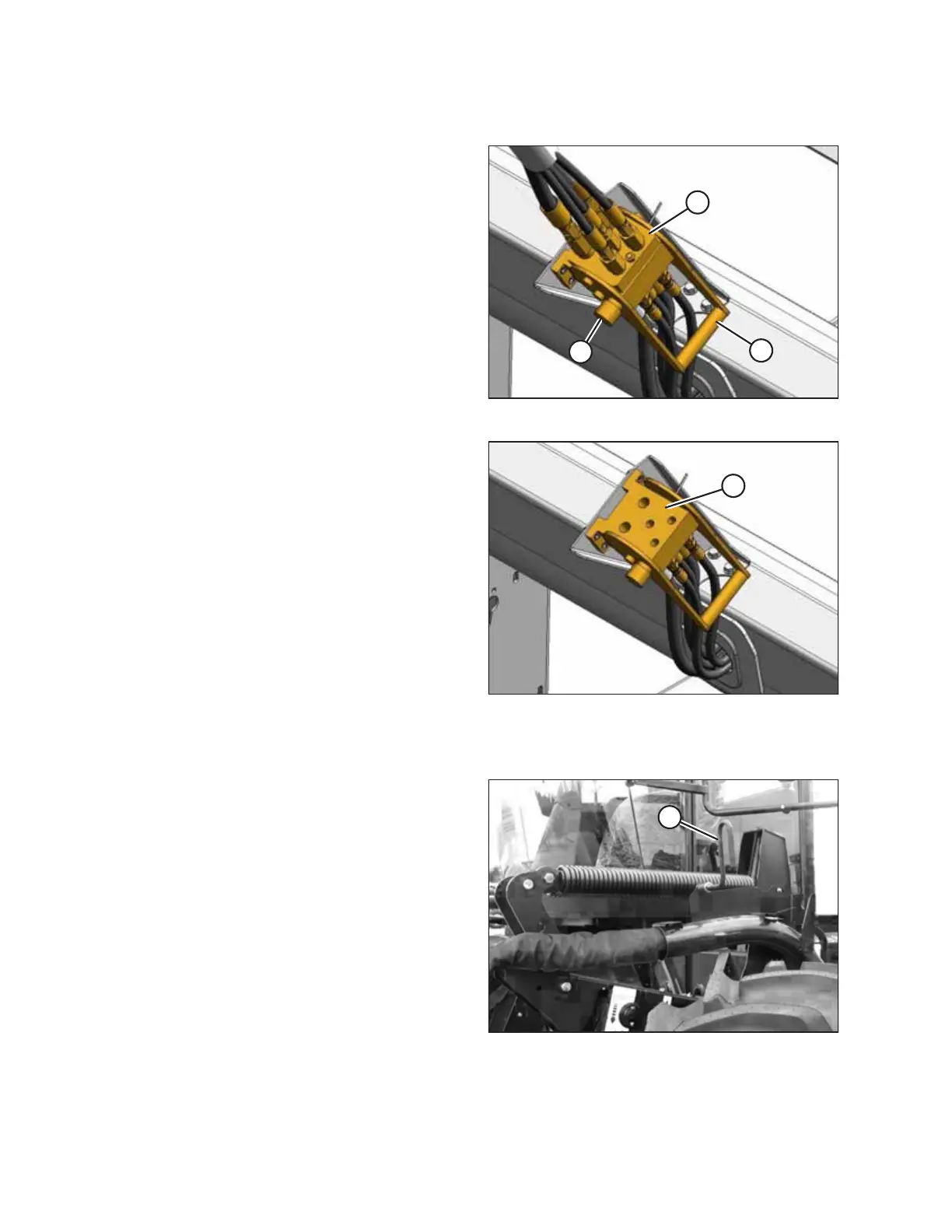

Figure 3.10: Reel Hydraulics
4. Push in lock button (A) and pull handle (B) to disengage
multicoupler (C) from the header receptacle.
5. Route the hose bundle back onto the windrower and store
multicoupler (C) on the hose support.
Figure 3.11: Closed Receptacle Cover
6. Close the cover on header receptacle (A).
Disconnecting header drive hydraulics:
Figure 3.12: Header Drive Hydraulics
7. Disengage and rotate lever (A) counterclockwise to the fully
up position.
8. Disconnect the electrical connector from the header.
OPERATION
