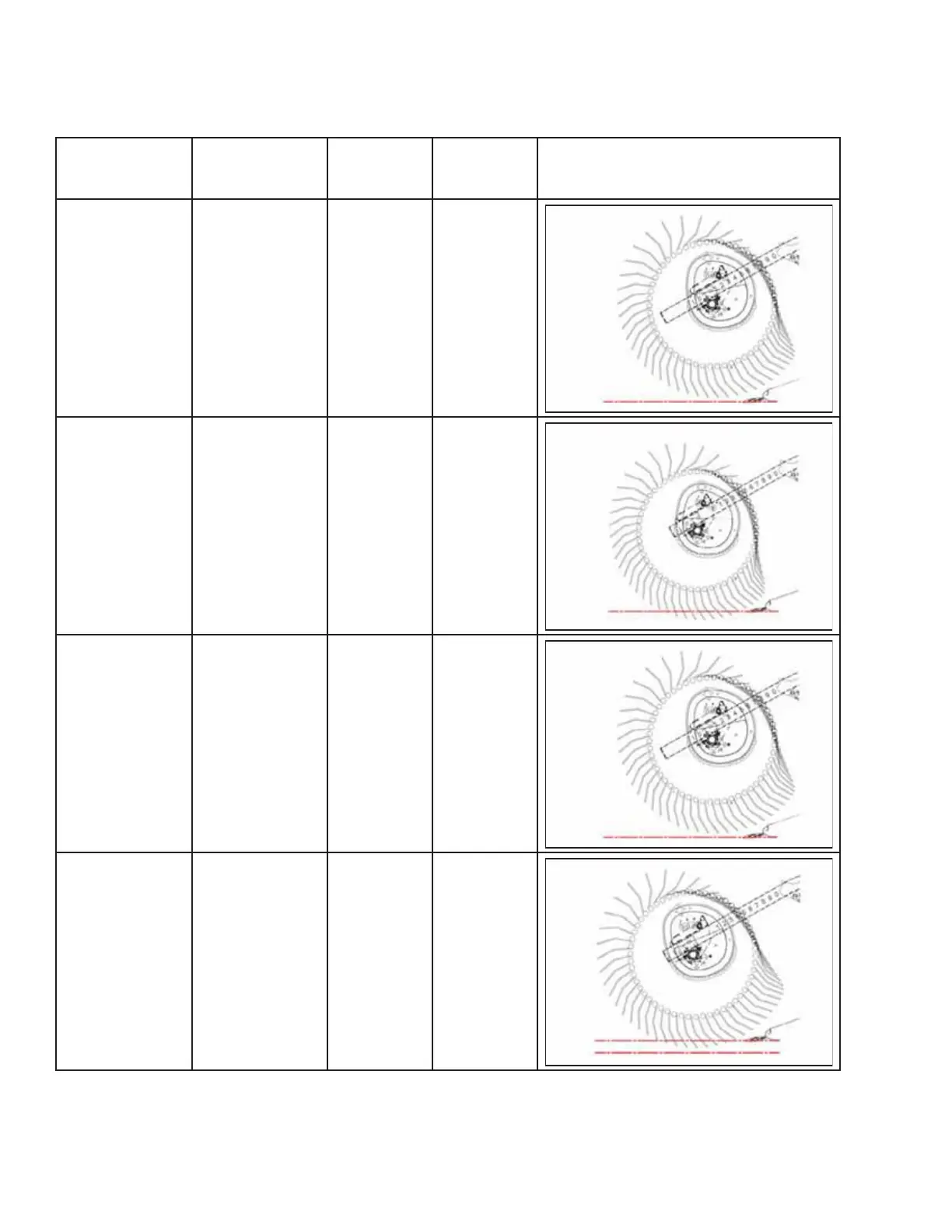

Table 3.2 Recommended Reel Settings (continued)
Reel Setting
Reference
Cam Setting
Number (Finger
Speed Gain)
Reel Position
Number
Header Angle Reel Finger Pattern
C
3 (30%)
6or7
Middle
1001821
D
3 (30%)
3or4
Variable
1001820
E
4 (35%)
6or7
Middle
1001821
F
4 (35%)
2or3
Variable
1001822
