NOTE:
The reel components are not shown in the illustrations in this procedure for the sake of clarity.
1. Position reel fully aft with support arms horizontal.
2. Shut down the engine, and remove the key from the ignition.
Repositioning the right reel arm cylinder

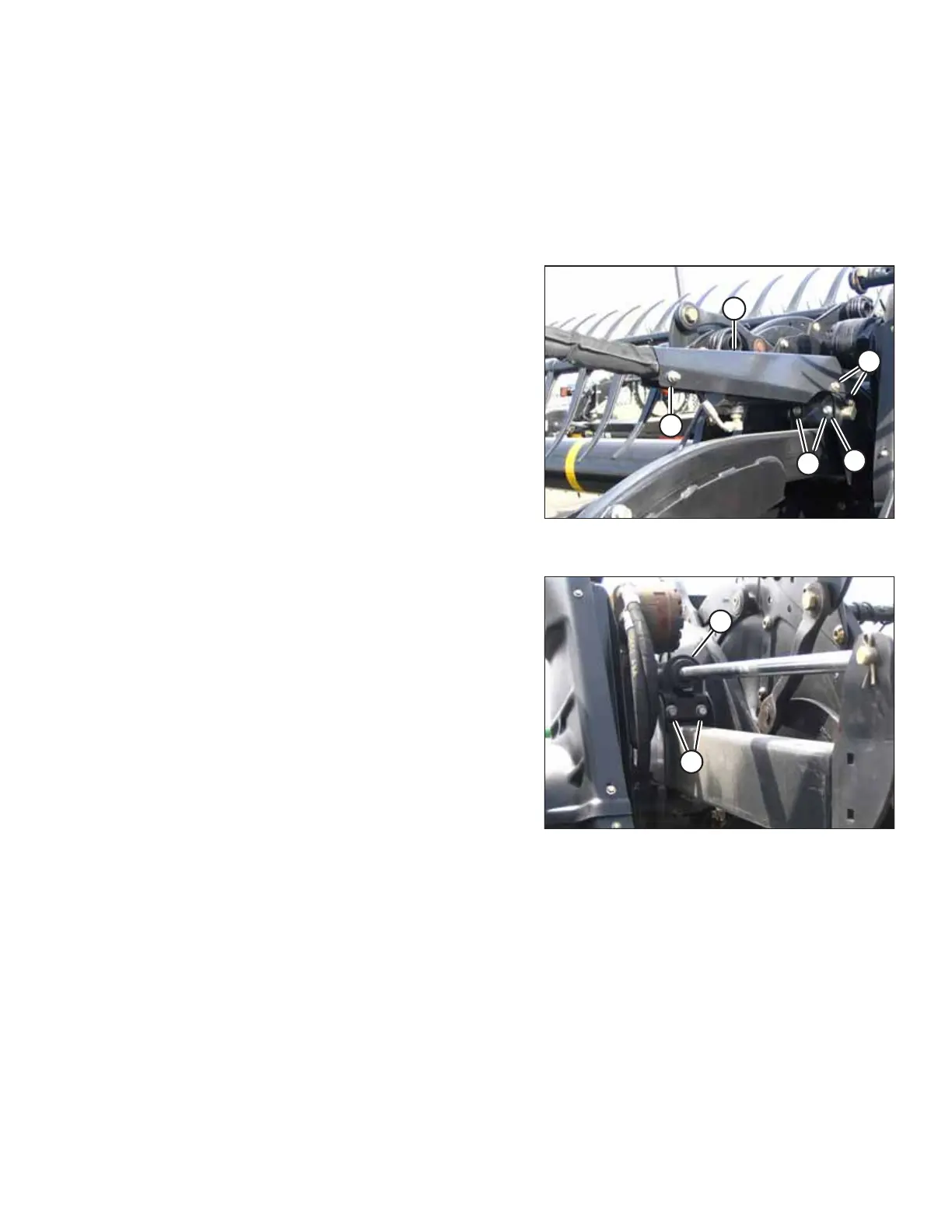

Figure 3.40: Right Reel Arm Cylinder in Forward
Position
3. Remove bolt and nut (A) and four bolts (B) securing hose
shield (C).
NOTE:
Only two of bolt (B) are visible in the illustration. The other
two are on the other side of the hose shield.
4. Move hose shield (C) and the hoses away from the reel arm
cylinder.
5. Remove bolts (D) that secure aft plate (E), and then remove
the aft plate.
Figure 3.41: Right Reel Arm Cylinder
6. Remove bolts (A) so that front support (B) is free to
move up.
