169441 87 Revision D

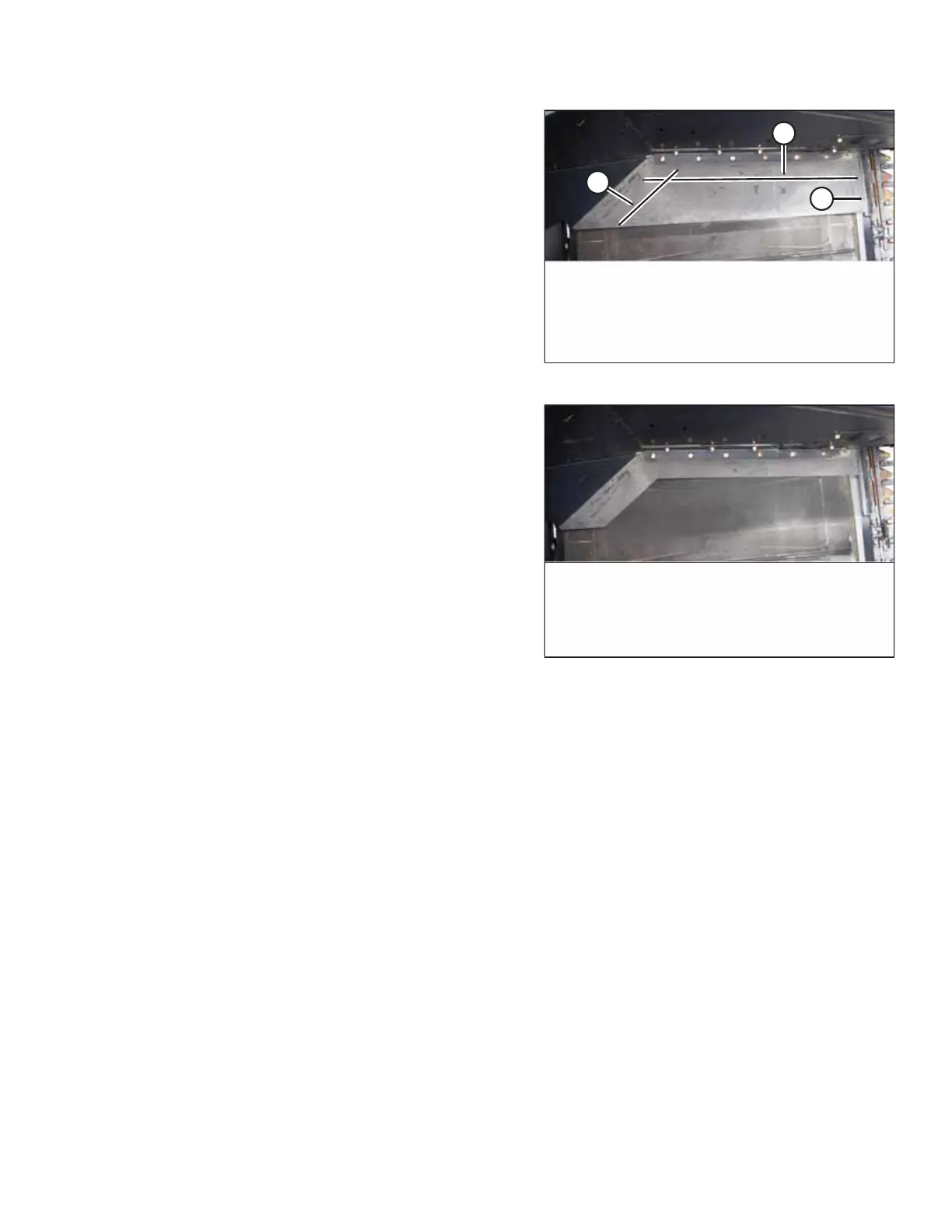

Figure 3.84: Existing Deflector
5. Mark a straight line (A) on the deflector 100 mm (4 in.)
from and parallel to the back edge of the deflector.
6. Mark another line (B) on the deflector 100 mm (4 in.) from
and parallel to the endsheet.
7. Using a sharp knife, cut the rubber deflector along lines (A)
and (B), taking care not to cut the draper underneath the
deflector.
8. Cut the rubber deflector along steel retainer (C) from the
inboard edge up to line (B), and remove the excess rubber.
Figure 3.85: Deflector After Trimming
9. Use the cut-off portion of the deflector as a template to
rework the deflector on the opposite end of the header.
OPERATION
